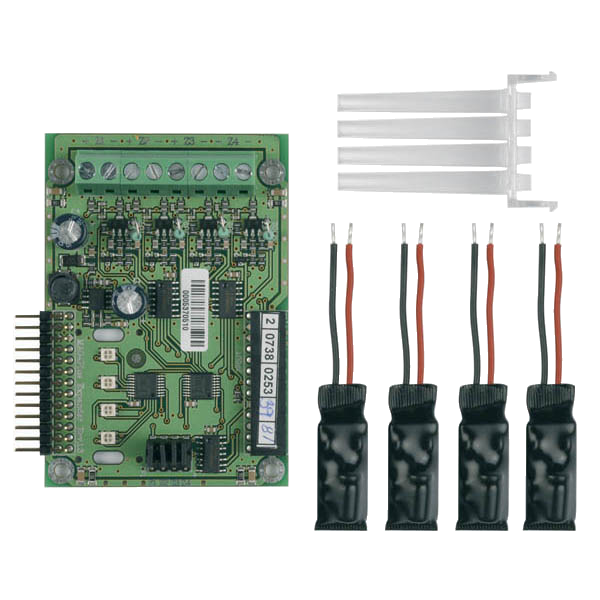

MAGFIRE MAGZC-816 4 Zone Detector Expander Card for MAG816
£
25
37
(Incl. VAT)
3 Years Warranty
4 zone DETECTOR EXPANDER CARD for MAG816
About this product
About this product
The MAGFIRE MAGZC-816, from ESP's Fire Protection range, is a 4 zone expander card for the MAG816: it expands detection circuits by 4, with up to 32 detectors per zone and 128 detectors in total.
Key features
- 4 zone expander card; expands detection circuits by 4
- Suitable for use with the MAG816
- Up to 32 detectors per zone; up to 128 detectors in total
- LED indication for zone circuits; instant action mode for zones
- 4-wire conventional; cable 0.4 - 2.0 mm²
- Power supply from the CIE: +24V DC; 130 mA standby, 330 mA in alarm
Frequently asked questions
Which panel is the MAGZC-816 for?
It is suitable for use with the MAG816.
How many zones does it add?
It expands detection circuits by 4: 4 detector circuits.
How many detectors can it take?
Up to 32 per zone, and up to 128 in total.
How is it powered?
From the CIE: +24V DC, drawing 130 mA in standby mode and 330 mA in alarm mode.
-
Download
- MAGZC-816 Tech Sheet
£
25
37
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
57 x 81
Maximum Detectors Per Zone
32
Maximum Number of Detectors
128
LED Indication for Zone Circuits
Yes
Instant Action Mode for Zones
Yes
Weight (Kg)
0.2
Warranty (Years)
3
Supply Voltage (Va)
2.1 (main and battery power supply for the fire alarm panel)
Consumption (Standby Mode)(mA)
130
Consumption (Alarm Mode) (mA)
330
Power Supply from CIE (DC)
+24V
Operating Temperature (°C)
0 to +40
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAG816
GTIN
5060224100905
Commodity Code
8531103000
Zones
4 (Detector Circuits)
Materials
PCB
Maximum Cable Size (mm²)
0.4 - 2.0
Wiring Type
4-Wire Conventional
Features
Suitable for use with MAG816; Expands detection circuits by 4
Dimensions
Dimensions (mm)
57 x 81
Specifications
| Dimensions (mm) | 57 x 81 |
|---|---|
| Maximum Detectors Per Zone | 32 |
| Maximum Number of Detectors | 128 |
| LED Indication for Zone Circuits | Yes |
| Instant Action Mode for Zones | Yes |
| Weight (Kg) | 0.2 |
| Warranty (Years) | 3 |
| Supply Voltage (Va) | 2.1 (main and battery power supply for the fire alarm panel) |
| Consumption (Standby Mode)(mA) | 130 |
| Consumption (Alarm Mode) (mA) | 330 |
| Power Supply from CIE (DC) | +24V |
| Operating Temperature (°C) | 0 to +40 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAG816 |
| GTIN | 5060224100905 |
| Commodity Code | 8531103000 |
| Zones | 4 (Detector Circuits) |
| Materials | PCB |
| Maximum Cable Size (mm²) | 0.4 - 2.0 |
| Wiring Type | 4-Wire Conventional |
| Features | Suitable for use with MAG816; Expands detection circuits by 4 |
Dimensions
| Dimensions (mm) | 57 x 81 |
|---|
4 zone DETECTOR EXPANDER CARD for MAG816 features
