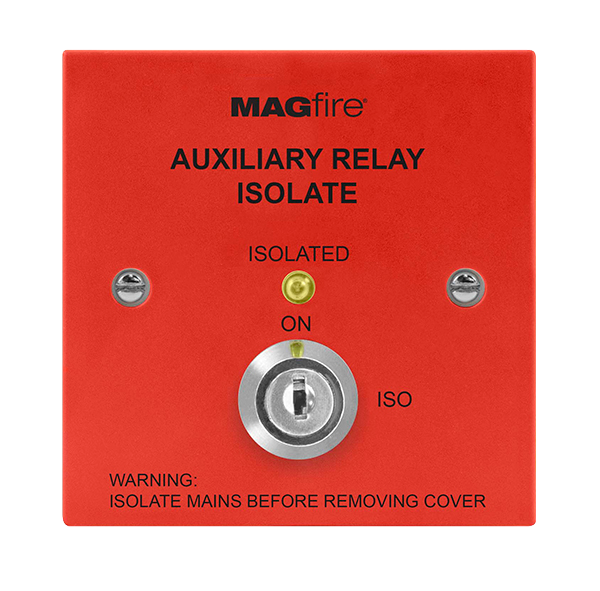

MAG MAGAUXISORP Auxiliary Isolation Switch (red)
£
28
44
(Incl. VAT)
3 Years Warranty
Auxiliary Isolation Switch (red)
About this product
About this product
The MAGAUXISORP is a red auxiliary isolation switch from ESP's Fire Protection range, suitable for mains switching up to 8 amp. It has a key switch, safety for maintenance & protection against tamper, an external trigger option and a programmable internal buzzer for activation.
Key features
- Suitable for mains switching up to 8 amp; output relay rating 240V AC @ 8Amps each
- Double pole double throw (DPDT) relay
- Key switch
- Safety for maintenance & protection against tamper
- External trigger option; programmable internal buzzer for activation
- Clear operation LED indication; green LED operation colour
- 24 V DC operating voltage
- Surface or flush mounting (surface back box supplied); fits 1 gang flush mount
Frequently asked questions
What can the MAGAUXISORP switch?
It is suitable for mains switching up to 8 amp; its output relay rating is 240V AC @ 8Amps each.
What relay type does it use?
Double pole double throw (DPDT).
How is it operated?
By key.
Is a back box supplied?
Yes: the surface back box is supplied, and it fits a 1 gang flush mount.
What voltage does it need?
24 V DC.
-
Download
- MAGAUXISORP Tech Sheet
£
28
44
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
86 x 86
Colour
Red
Materials
Housing: ABS
Mounting
Surface or Flush (Surface Back Box Supplied)
Warranty (Years)
3
Operating Voltage (V DC)
24
Maximum Cable Size (mm²)
2.5
Power Indicator
LED On
LED Operation Colour
Green
Switch type
Key
Relay Types
Double Pole Double Throw (DPDT)
Output Relay Rating
240V AC @ 8Amps each
Features
Back Box Supplied, Fits 1 Gang Flush Mount
Dimensions
Dimensions (mm)
86 x 86
Specifications
| Dimensions (mm) | 86 x 86 |
|---|---|
| Colour | Red |
| Materials | Housing: ABS |
| Mounting | Surface or Flush (Surface Back Box Supplied) |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 24 |
| Maximum Cable Size (mm²) | 2.5 |
| Power Indicator | LED On |
| LED Operation Colour | Green |
| Switch type | Key |
| Relay Types | Double Pole Double Throw (DPDT) |
| Output Relay Rating | 240V AC @ 8Amps each |
| Features | Back Box Supplied, Fits 1 Gang Flush Mount |
Dimensions
| Dimensions (mm) | 86 x 86 |
|---|
