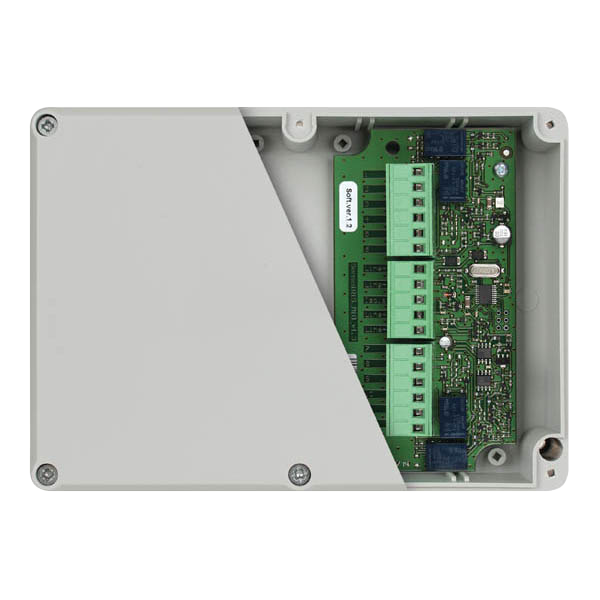

MAG MAGPRO-0i4O 4 Output Module with Isolator
£
78
43
(Incl. VAT)
3 Years Warranty
4 Output Module with Isolator
About this product
About this product
The MAG MAGPRO-0i4O, from ESP's Fire Protection range, is a loop powered 4 output module with isolator for analogue addressable (MAGPRO) wiring, with 4 volt-free outputs.
Key features
- 4 volt-free outputs
- Built in isolator
- Loop powered, 15 - 32 V DC operating voltage
- Shutdown of ventilation equipment & door override
- Used to switch equipment in conditions such as "Common Fire"
- Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
- IP40 ingress protection
- Custom (closed) protocol
Frequently asked questions
How many outputs does the MAGPRO-0i4O have?
4 volt-free outputs.
Does it have an isolator?
Yes, a built in isolator.
How is it powered?
It is loop powered, at 15 - 32 V DC.
Which panels is it compatible with?
MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G.
What can it be used for?
It is used to switch equipment in conditions such as "Common Fire".
-
Download
- MAGPRO-0i4O Tech Sheet
£
78
43
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
126 x 176 x 57
Weight (Kg)
0.23
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Cable Size (mm²)
0.4 - 2.0
Current consumption in STAND-BY mode (μA)
175 (@27V DC)
Nominal Current Consumption (μA)
200 (@27V DC)
Current consumption with 1 LED ON (mA)
4
Number of Outputs
4
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Additional Information
Used to switch equipment in conditions such as "Common Fire"
Ingress Protection
IP40
Wiring Type
Analogue Addressable (MAGPRO)
Materials
ABS
Maximum Current Consumption
7mA
Features
4 volt-free outputs, Loop powered, Built in isolator
Dimensions
Dimensions (mm)
126 x 176 x 57
Specifications
| Dimensions (mm) | 126 x 176 x 57 |
|---|---|
| Weight (Kg) | 0.23 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Current consumption in STAND-BY mode (μA) | 175 (@27V DC) |
| Nominal Current Consumption (μA) | 200 (@27V DC) |
| Current consumption with 1 LED ON (mA) | 4 |
| Number of Outputs | 4 |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Additional Information | Used to switch equipment in conditions such as "Common Fire" |
| Ingress Protection | IP40 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Materials | ABS |
| Maximum Current Consumption | 7mA |
| Features | 4 volt-free outputs, Loop powered, Built in isolator |
Dimensions
| Dimensions (mm) | 126 x 176 x 57 |
|---|
