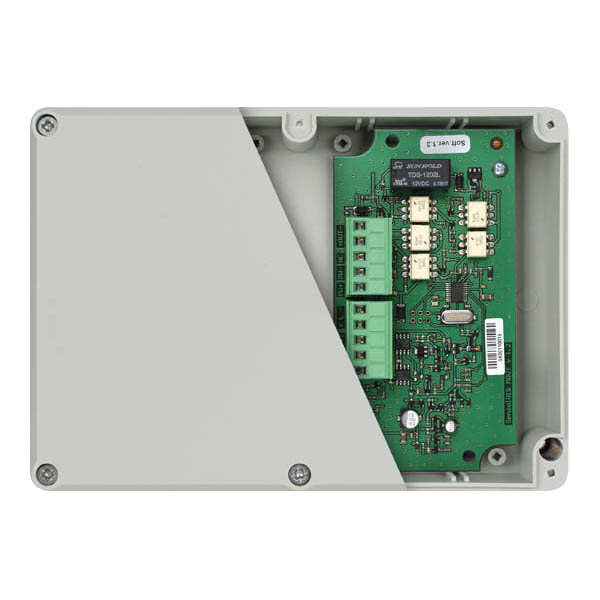

MAG MAGPRO-1OSi Conventional Sounder Module with Isolator
£
107
86
(Incl. VAT)
3 Years Warranty
Conventional Sounder Module with Isolator
About this product
About this product
The MAGPRO-1OSi is a MAGFIRE conventional sounder module with isolator: it integrates a conventional sounder into an analogue addressable (MAGPRO) system, has a built in isolator and gives 1 output.
Key features
- Integrates a conventional sounder into an addressable system
- Built in isolator
- 1 output; maximum output electrical characteristics 28V (@0.75A) DC
- Operating voltage 15 - 32 V DC; stand-by current 270 μA (@27V DC)
- Custom (closed) protocol; analogue addressable (MAGPRO) wiring
- ABS; rated IP40
Frequently asked questions
What does the MAGPRO-1OSi do?
It integrates a conventional sounder into an addressable system, as a conventional sounder module with a built in isolator.
What voltage does it operate at?
15 - 32 V DC.
How many outputs does it have?
1 output, with maximum output electrical characteristics of 28V (@0.75A) DC.
What protocol does it use?
Custom (closed), on analogue addressable (MAGPRO) wiring.
What is its ingress protection?
IP40.
-
Download
- MAGPRO-1OSi Tech Sheet
£
107
86
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
126 x 176 x 57
Weight (Kg)
0.23
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Cable Size (mm²)
0.4 - 2.0
Current consumption in STAND-BY mode (μA)
270 (@27V DC)
Current consumption with 1 LED ON (mA)
3.6
Permissible Voltage Ripple (pp)
3.0V (@27V DC)
Type of Output
Monitored Conventional Sounder Circuit
Type
Monitored Conventional Sounder Circuit
Number of Outputs
1
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Additional Information
Requires 24V DC Supply, Not-Loop Powered
Ingress Protection
IP40
Materials
ABS
Wiring Type
Analogue Addressable (MAGPRO)
Maximum Output Electrical Characteristics (DC)
28V (@0.75A)
Dimensions
Dimensions (mm)
126 x 176 x 57
Specifications
| Dimensions (mm) | 126 x 176 x 57 |
|---|---|
| Weight (Kg) | 0.23 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Current consumption in STAND-BY mode (μA) | 270 (@27V DC) |
| Current consumption with 1 LED ON (mA) | 3.6 |
| Permissible Voltage Ripple (pp) | 3.0V (@27V DC) |
| Type of Output | Monitored Conventional Sounder Circuit |
| Type | Monitored Conventional Sounder Circuit |
| Number of Outputs | 1 |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Additional Information | Requires 24V DC Supply, Not-Loop Powered |
| Ingress Protection | IP40 |
| Materials | ABS |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Maximum Output Electrical Characteristics (DC) | 28V (@0.75A) |
Dimensions
| Dimensions (mm) | 126 x 176 x 57 |
|---|
Conventional Sounder Module with Isolator features
