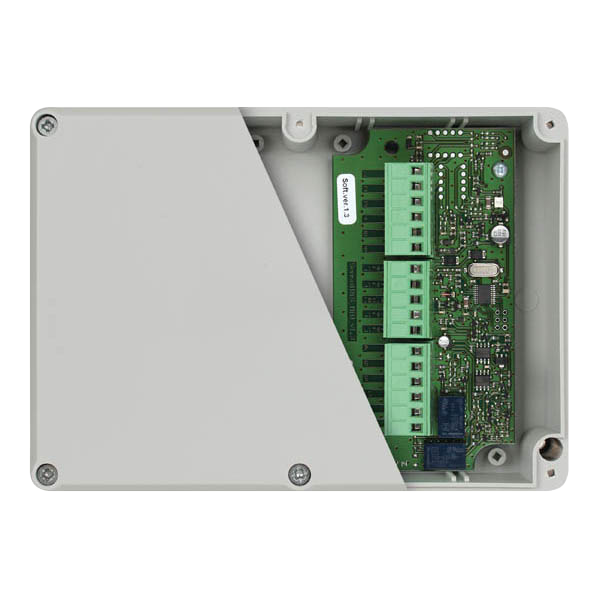

MAG MAGPRO-2i2O 2 Input 2 Output Module with Isolator
About this product
The MAG MAGPRO-2i2O is a 2 Input 2 Output Module with Isolator.
Key Features
- 2 monitored inputs
- 2 volt-free outputs
- Loop powered
- Built in isolator
- Genuine ESP fire alarm accessories supplied by WME
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's fire alarm accessories products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The MAG MAGPRO-2i2O is a practical choice wherever a reliable fire alarm accessories is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | MAG |
| Product code | MAGPRO-2i2O |
| Dimensions (mm) | 126 x 176 x 57 |
| Weight (Kg) | 0.23 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Current consumption in STAND-BY mode (μA) | 235 (@27V DC) |
| Nominal Current Consumption (μA) | 260 (@27V DC) |
| Current consumption with 1 LED ON (mA) | 3.5 |
| Current consumption with 2 LED ON (mA) | 7 |
| Number of Inputs | 2 |
| Type of Inputs | Monitored |
| Number of Outputs | 2 |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Supplied | 4 x 56k Ohm Resistors |
| GTIN | 5060224104927 |
| Commodity Code | 8531103000 |
