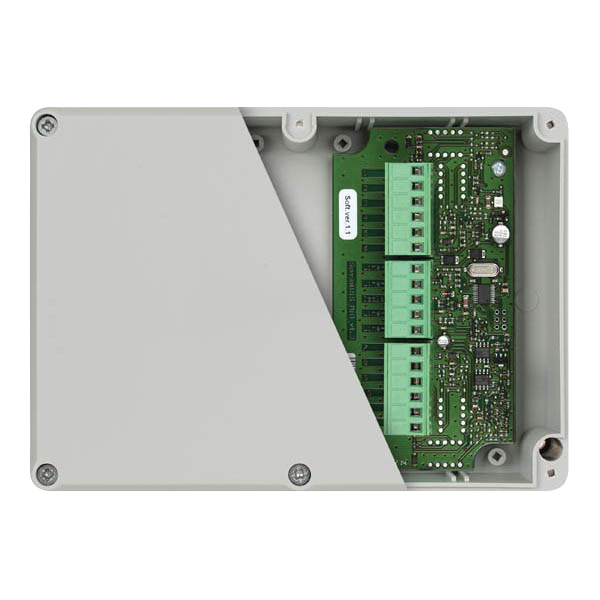

MAG MAGPRO-4i0O 4 Input Module with Isolator
£
62
75
(Incl. VAT)
3 Years Warranty
4 Input Module with Isolator
About this product
About this product
The MAG MAGPRO-4i0O, from ESP's Fire Protection range, is a loop powered 4 input module with isolator for analogue addressable (MAGPRO) wiring.
Key features
- 4 monitored inputs
- Built in isolator
- Loop powered, 15 - 32 V DC operating voltage
- Can be used to interface 4 x 3rd party devices to create conditions such as class change
- Supplied with 8 x 56k ohm end of line resistors
- IP40 ingress protection
- Custom (closed) protocol
Frequently asked questions
How many inputs does the MAGPRO-4i0O have?
4 monitored inputs.
Does it have an isolator?
Yes, a built in isolator.
How is it powered?
It is loop powered, at 15 - 32 V DC.
What can it be used for?
It can be used to interface 4 x 3rd party devices to create conditions such as class change.
What is supplied?
8 x 56k ohm end of line resistors.
-
Download
- MAGPRO-4i0O Tech Sheet
£
62
75
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
126 x 176 x 57
Weight (Kg)
0.23
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Cable Size (mm²)
0.4 - 2.0
Current consumption in STAND-BY mode (μA)
300 (@27V DC)
Nominal Current Consumption (μA)
330 (@27V DC)
Current consumption with 1 LED ON (mA)
4
Current consumption with 2 LED ON (mA)
7
Number of Inputs
4
Type of Inputs
Monitored
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Supplied
8 x 56k Ohm Resistors
Ingress Protection
IP40
Wiring Type
Analogue Addressable (MAGPRO)
Materials
ABS
Features
Loop Powered, Built in isolator
Additional Information
Can be used to interface 4 x 3rd party devices to create conditions such as Class Change
Dimensions
Dimensions (mm)
126 x 176 x 57
Specifications
| Dimensions (mm) | 126 x 176 x 57 |
|---|---|
| Weight (Kg) | 0.23 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Current consumption in STAND-BY mode (μA) | 300 (@27V DC) |
| Nominal Current Consumption (μA) | 330 (@27V DC) |
| Current consumption with 1 LED ON (mA) | 4 |
| Current consumption with 2 LED ON (mA) | 7 |
| Number of Inputs | 4 |
| Type of Inputs | Monitored |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Supplied | 8 x 56k Ohm Resistors |
| Ingress Protection | IP40 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Materials | ABS |
| Features | Loop Powered, Built in isolator |
| Additional Information | Can be used to interface 4 x 3rd party devices to create conditions such as Class Change |
Dimensions
| Dimensions (mm) | 126 x 176 x 57 |
|---|
