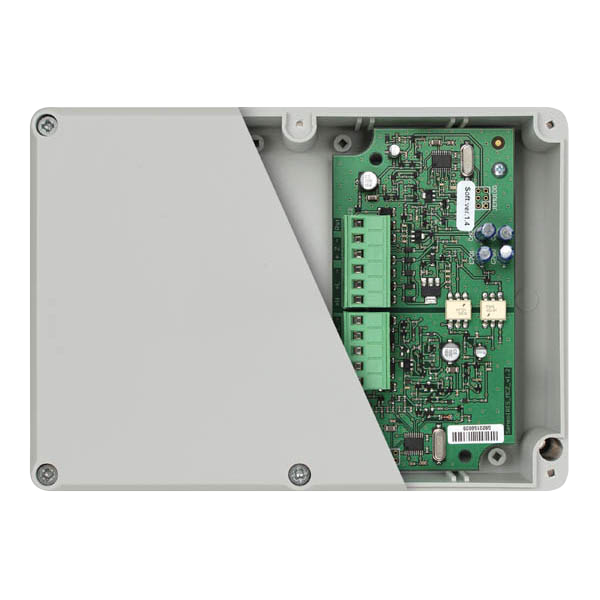

MAG MAGPRO-CZM Conventional Zone Module with Isolator
£
60
26
(Incl. VAT)
3 Years Warranty
Conventional Zone Module with Isolator
About this product
About this product
The MAG MAGPRO-CZM, from ESP's Fire Protection range, is a conventional zone module with isolator, compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G. It integrates 4-wire conventional detectors into an addressable system, with up to 32 detectors per zone.
Key features
- Integrates 4-wire conventional detectors into an addressable system, up to 32 detectors per zone
- Loop powered, or powered via an external 24V PSU (optional)
- Built-in isolator
- 1 monitored conventional sounder circuit
- Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
- 15 - 32 V DC operating voltage
- White ABS housing, 126 x 176 x 57 mm; IP40
Frequently asked questions
What does the MAGPRO-CZM do?
It integrates 4-wire conventional detectors into an addressable system, with up to 32 detectors per zone.
How is it powered?
It is loop powered, and can also be powered via an external 24V PSU (optional).
Which products is it compatible with?
MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G.
Does it have an isolator?
Yes, it has a built-in isolator.
Which EN54 parts is it marked to?
EN54-17 and EN54-11.
-
Download
- MAGPRO-CZM Tech Sheet
£
60
26
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
126 x 176 x 57
Colour
White
Materials
Housing: ABS
Maximum Detectors Per Zone
Up to 32 Detectors
Weight (Kg)
0.23
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Cable Size (mm²)
0.4 - 2.0
Permissible Voltage Ripple (pp)
3.0V (@27V DC)
Wiring Type
Analogue Addressable (MAGPRO)
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Ingress Protection
IP40
Maximum Current consumption (Loop Power Supply)(mA)
5.5
Maximum Consumption with external power supply (μA)
150 (@27V DC)
Number of Outputs
1 Monitored Conventional Sounder Circuit
Standards
EN54-17, EN54-11
Dimensions
Dimensions (mm)
126 x 176 x 57
Specifications
| Dimensions (mm) | 126 x 176 x 57 |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Maximum Detectors Per Zone | Up to 32 Detectors |
| Weight (Kg) | 0.23 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Permissible Voltage Ripple (pp) | 3.0V (@27V DC) |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Ingress Protection | IP40 |
| Maximum Current consumption (Loop Power Supply)(mA) | 5.5 |
| Maximum Consumption with external power supply (μA) | 150 (@27V DC) |
| Number of Outputs | 1 Monitored Conventional Sounder Circuit |
| Standards | EN54-17, EN54-11 |
Dimensions
| Dimensions (mm) | 126 x 176 x 57 |
|---|
