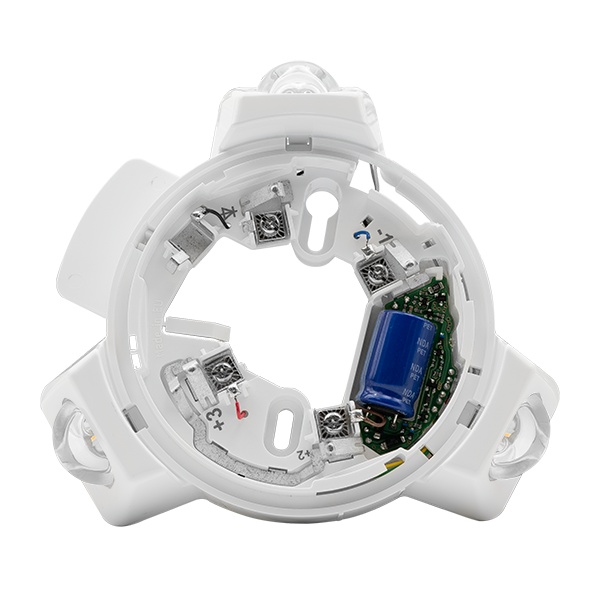

MAG MAGPRO-DB23W Addressable Fire VAD Base White
£
56
17
(Incl. VAT)
3 Years Warranty
Addressable Fire VAD Base White
About this product
About this product
The MAG MAGPRO-DB23W, from ESP's Fire Protection range, is a MAGPRO addressable fire EN54-23 VAD base with white LEDs: a ceiling mount VAD base that requires the MAGPRO-DBS1 for the VAD to operate.
Key features
- Ceiling mount VAD base
- Requires MAGPRO-DBS1 for VAD to operate
- White LEDs, 0.5Hz flash rate
- Coverage volume C - 3-6
- Analogue addressable (MAGPRO) wiring, custom (closed) protocol
- Operating voltage 20 - 32 V DC (27 V DC nominal)
- Compatible with the MAGPRO series of CIEs
Frequently asked questions
Does the MAGPRO-DB23W work on its own?
No: it requires the MAGPRO-DBS1 for the VAD to operate.
Where is it mounted?
On the ceiling: it is a ceiling mount VAD base.
What is the flash rate?
0.5Hz, with white LEDs.
Which control panels does it work with?
The MAGPRO series of CIEs, with CIE firmware version MAGPRO16/G V6.6.2, MAGPRO96/G V4.5.2 or MAGPRO9601 1.1.3.
What is its coverage volume?
C - 3-6.
-
Download
- MAGPRO-DB23W Tech Sheet
£
56
17
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø114 x 27
Materials
Housing: ABS
Mounting
Ceiling
LED colour
White
Flash Rate
0.5Hz
Coverage Volume
C - 3-6
Weight (Kg)
0.08
Warranty (Years)
3
Operating Voltage (V DC)
20 - 32
Nominal Operating Voltage (V DC)
27
Cable Size (mm²)
0.4 - 1.5
Maximum Consumption at Communication (μA)
650 (@27V DC)
Maximum Current Consumption
<19mA
Wiring Type
Analogue Addressable (MAGPRO)
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +50
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
MAGPRO series of CIEs
Additional Information
Requires MAGPRO-DBS1 to operate; Requires CIE firmware version of; MAGPRO16/G V6.6.2, MAGPRO96/G V4.5.2 & MAGPRO9601 1.1.3
Colour
White RAL 9016
Ingress Protection
IP21C (with mounted MAGPRO-DBS1)
Dimensions
Dimensions (mm)
ø114 x 27
Specifications
| Dimensions (mm) | ø114 x 27 |
|---|---|
| Materials | Housing: ABS |
| Mounting | Ceiling |
| LED colour | White |
| Flash Rate | 0.5Hz |
| Coverage Volume | C - 3-6 |
| Weight (Kg) | 0.08 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 20 - 32 |
| Nominal Operating Voltage (V DC) | 27 |
| Cable Size (mm²) | 0.4 - 1.5 |
| Maximum Consumption at Communication (μA) | 650 (@27V DC) |
| Maximum Current Consumption | <19mA |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +50 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | MAGPRO series of CIEs |
| Additional Information | Requires MAGPRO-DBS1 to operate; Requires CIE firmware version of; MAGPRO16/G V6.6.2, MAGPRO96/G V4.5.2 & MAGPRO9601 1.1.3 |
| Colour | White RAL 9016 |
| Ingress Protection | IP21C (with mounted MAGPRO-DBS1) |
Dimensions
| Dimensions (mm) | ø114 x 27 |
|---|
