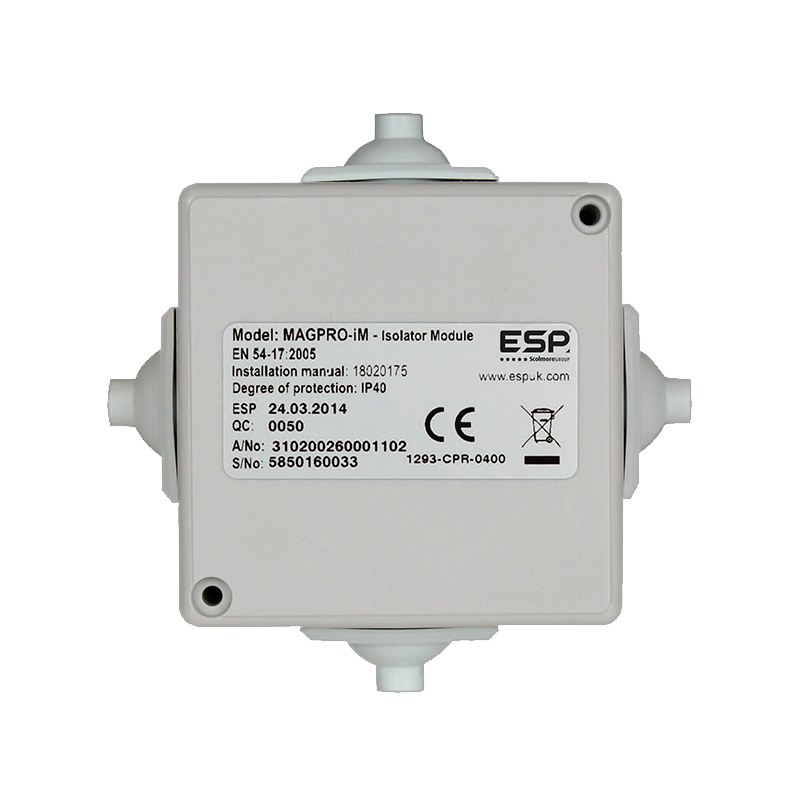

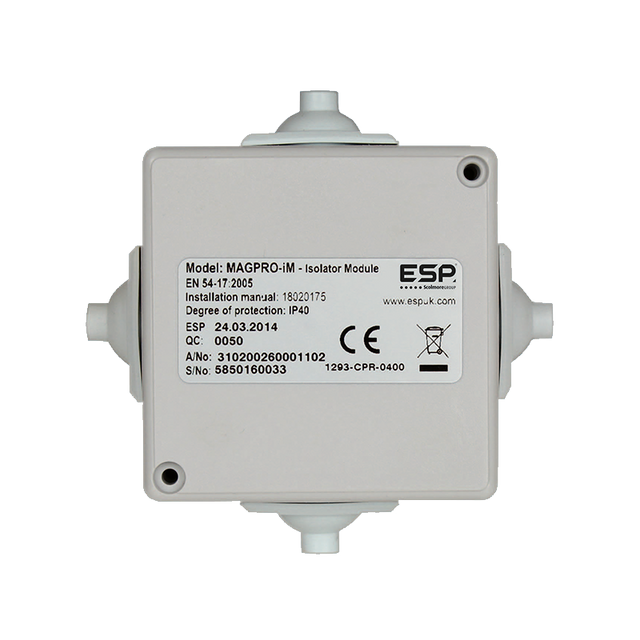

MAG MAGPRO-iM Loop Isolator Module
About this product
The MAG MAGPRO-iM is a Loop Isolator Module.
Key Features
- Protection against short circuit
- Auto reset after short circuit
- 4 x cable entry points
- A maximum of 30 devices between two isolators
- Genuine ESP fire alarm accessories supplied by WME
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's fire alarm accessories products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The MAG MAGPRO-iM is a practical choice wherever a reliable fire alarm accessories is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | MAG |
| Product code | MAGPRO-iM |
| Dimensions (mm) | 71 x 71 x 40 |
| Finish | Grey |
| Materials | ABS |
| Weight (Kg) | 0.185 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Nominal Current Consumption (μA) | 200 |
| Maximum Isolator Resistance (Ω) | 0.18 (@27V DC) |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Additional Information | 4 Rubber Entry Points |
| Standards | BS EN 54-17 |
| GTIN | 5060224104989 |
| Commodity Code | 8531103000 |
