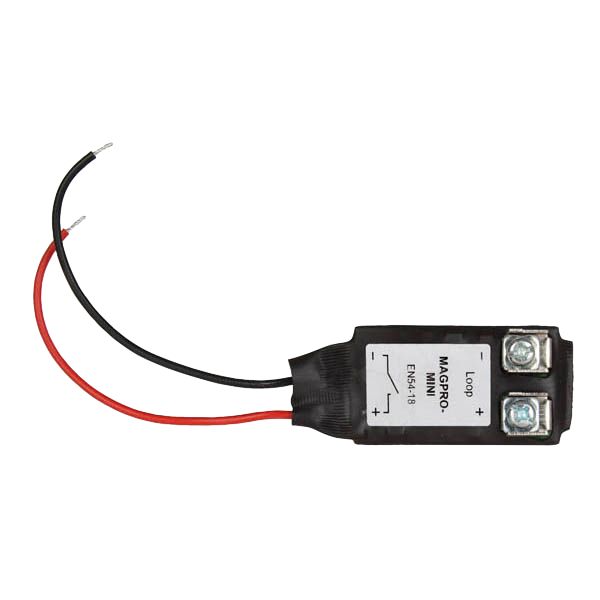

MAG MAGPRO-MINI 1 Input Module
£
22
03
(Incl. VAT)
3 Years Warranty
1 Input Module
About this product
About this product
The MAG MAGPRO-MINI, from ESP's Fire Protection range, is a 1 input addressable mini module with a single volt free contact, for the integration of third party control devices on analogue addressable (MAGPRO) wiring.
Key features
- Single volt free contact
- Integration of third party control devices
- Analogue addressable (MAGPRO), custom (closed) protocol
- Green LED power indicator
- Maximum current consumption 100 μA @ 27V DC
- Heat shrink wrapped PCB, 0.12 kg
- Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Frequently asked questions
What is the MAGPRO-MINI for?
Integration of third party control devices, through a single volt free contact.
Which panels is it compatible with?
MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G.
What protocol does it use?
Custom (closed), on analogue addressable (MAGPRO) wiring.
What is its maximum current consumption?
100 μA @ 27V DC.
-
Download
- MAGPRO-MINI Tech Sheet
£
22
03
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
43 x 25 (PCB)
Weight (Kg)
0.12
Warranty (Years)
3
Supply Voltage (V AC)
240
Power Indicator
LED On
LED Operation Colour
Green
Maximum Current Consumption
100 μA @ 27Vdc
Permissible Voltage Ripple (pp)
3.0V (@27V DC)
Wiring Type
Analogue Addressable (MAGPRO)
Protocol Type
Custom (Closed)
Relative Humidity Resistance (%)
93 (@40˚C)
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Materials
Heat Shrink Wrapped PCB
Cable Size (mm²)
0.4 - 2.0
Dimensions
Dimensions (mm)
43 x 25 (PCB)
Specifications
| Dimensions (mm) | 43 x 25 (PCB) |
|---|---|
| Weight (Kg) | 0.12 |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 240 |
| Power Indicator | LED On |
| LED Operation Colour | Green |
| Maximum Current Consumption | 100 μA @ 27Vdc |
| Permissible Voltage Ripple (pp) | 3.0V (@27V DC) |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Protocol Type | Custom (Closed) |
| Relative Humidity Resistance (%) | 93 (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Materials | Heat Shrink Wrapped PCB |
| Cable Size (mm²) | 0.4 - 2.0 |
Dimensions
| Dimensions (mm) | 43 x 25 (PCB) |
|---|
