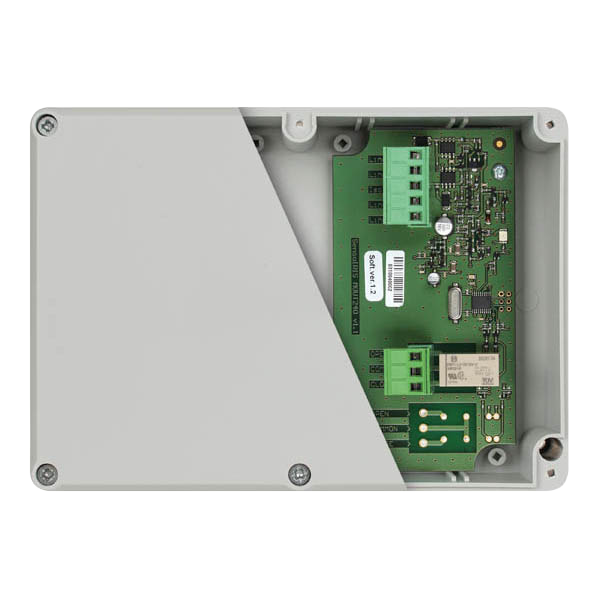

MAG MAGPRO-R Mains Relay Output Module with Isolator
£
128
62
(Incl. VAT)
3 Years Warranty
Mains Relay Output Module with Isolator
About this product
About this product
The MAG MAGPRO-R, from ESP's Fire Protection range, is a loop-powered mains relay output module with a built-in isolator, for MAGPRO analogue addressable fire alarm systems. Its single volt-free output is rated at 5A @ 250V AC; the example application given is an AC 240V door magnet override.
Key features
- Loop powered, with a built-in isolator
- 1 volt-free output rated at 5A @ 250V AC
- Example application: AC 240V door magnet override
- Analogue addressable wiring (MAGPRO), custom (closed) protocol
- 15 - 32 V DC operating voltage, 4mA maximum current consumption
- Maximum cable size 2.5 mm²
- ABS housing, 126 x 176 x 57 mm
Frequently asked questions
What can the MAGPRO-R switch?
Its single volt-free output is rated at 5A @ 250V AC. The example application given is an AC 240V door magnet override.
How is the MAGPRO-R powered?
It is loop powered, with an operating voltage of 15 - 32 V DC and a maximum current consumption of 4mA.
Does the MAGPRO-R have an isolator?
Yes. It has a built-in isolator.
Which system does the MAGPRO-R work on?
MAGPRO analogue addressable wiring, with a custom (closed) protocol.
What cable size does the MAGPRO-R take?
The maximum cable size is 2.5 mm².
-
Download
- MAGPRO-R Tech Sheet
£
128
62
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
126 x 176 x 57
Weight (Kg)
0.23
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Maximum Cable Size (mm²)
2.5
Current consumption in STAND-BY mode (μA)
175 (@27V DC)
Nominal consumption during communication (μA)
220
Current consumption with LED ON (mA)
4
Wiring Type
Analogue Addressable (MAGPRO)
Number of Outputs
1
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Materials
ABS
Maximum Current Consumption
4mA
Output Rating
Volt-Free rated at 5A @ 250V AC
Dimensions
Dimensions (mm)
126 x 176 x 57
Specifications
| Dimensions (mm) | 126 x 176 x 57 |
|---|---|
| Weight (Kg) | 0.23 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Maximum Cable Size (mm²) | 2.5 |
| Current consumption in STAND-BY mode (μA) | 175 (@27V DC) |
| Nominal consumption during communication (μA) | 220 |
| Current consumption with LED ON (mA) | 4 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Number of Outputs | 1 |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Materials | ABS |
| Maximum Current Consumption | 4mA |
| Output Rating | Volt-Free rated at 5A @ 250V AC |
Dimensions
| Dimensions (mm) | 126 x 176 x 57 |
|---|
Mains Relay Output Module with Isolator features
