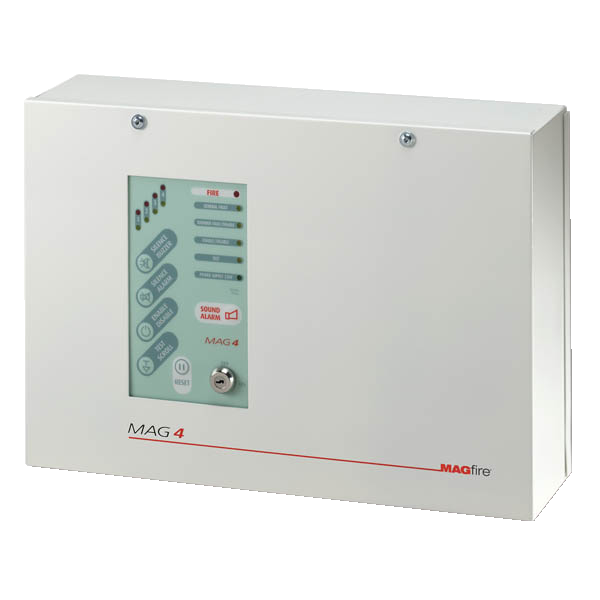

MAG MAG4 Conventional 4 Zone Metal Fire Panel
£
120
06
(Incl. VAT)
3 Years Warranty
conventional 4 zone metal FIRE PANEL
About this product
About this product
The MAG MAG4, from ESP's Fire Protection range, is a 4-zone conventional fire alarm panel in a steel housing, with 4 detection zones and 2 sounder circuits for 4-wire conventional MAGFIRE devices. Each zone takes up to 30 detectors and an unlimited number of call points.
Key features
- 4 detection zones and 2 sounder circuits
- Up to 30 detectors and unlimited call points per zone
- Active end of line monitoring and head removal
- Volt-free fire and fault changeover relays, 500mA @ 24V (max load)
- 2 monitored sounder outputs, each 24V DC (max 300mA fused)
- Integral sound alarm button, enable/disable security key and one-man walk test
- 230V AC supply, standby battery up to 12V 7Ah (battery calculation required)
- Steel housing for surface mounting, 320 x 220 x 80 mm
Frequently asked questions
How many zones does the MAG MAG4 have?
4 detection zones and 2 sounder circuits.
How many detectors can each zone take?
Up to 30 detectors per zone, with an unlimited number of call points.
Which devices does the MAG4 work with?
4-wire conventional MAGFIRE devices, with MAG-EOL end-of-line devices on the zones.
What standby battery does the MAG4 take?
A battery of up to 12V 7Ah, sized by battery calculation. BAT7, a 12V 7Ah SLA battery, is listed as an accessory.
Does the MAG4 have a walk test?
Yes. It has a one-man walk test facility.
Which EN54 parts is the MAG4 marked to?
EN54-2 and EN54-4.
-
Download
- MAG4 Tech Sheet
£
120
06
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
320 x 220 x 80
Maximum Detectors Per Zone
30
Call Points Per Zone
Unlimited
Weight (Kg)
3.5Kg (Without Battery)
Warranty (Years)
3
Supply Voltage (V AC)
230
Power Availability (A)
0.7
Mains Fail Consumption (mA)
50
Standby Supply
Up to 12V 7Ah (Battery Calculation Required)
Zone End Of Line
Custom EoL; MAG-EOL
Fault/Fire Relay
Volt free 500mA @ 24V (max load)
Auxiliary Output
24V DC (300mA fused)
Sounder 1 Output
24V DC (max 300mA fused) Monitored
Sounder 2 Output
24V DC (max 300mA fused) Monitored
Operating Temperature (°C)
-5 to +40
Storage Temperature (°C)
-20 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
4-Wire Conventional MAGFIRE Devices
Additional Information
Integral sound alarm button
GTIN
5060224100882
Commodity Code
8531103000
Materials
Steel
Mounting
Surface
Wiring Type
4-Wire Conventional
Zones
4 Detection Zones 2 Sounder Circuits
Thresholds for Zone Conditions (mA)
0 - 2 (Fault condition), 2 - 6 (Normal condition), 6 - 110 (Fire condition)
Dimensions
Dimensions (mm)
320 x 220 x 80
Specifications
| Dimensions (mm) | 320 x 220 x 80 |
|---|---|
| Maximum Detectors Per Zone | 30 |
| Call Points Per Zone | Unlimited |
| Weight (Kg) | 3.5Kg (Without Battery) |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 230 |
| Power Availability (A) | 0.7 |
| Mains Fail Consumption (mA) | 50 |
| Standby Supply | Up to 12V 7Ah (Battery Calculation Required) |
| Zone End Of Line | Custom EoL; MAG-EOL |
| Fault/Fire Relay | Volt free 500mA @ 24V (max load) |
| Auxiliary Output | 24V DC (300mA fused) |
| Sounder 1 Output | 24V DC (max 300mA fused) Monitored |
| Sounder 2 Output | 24V DC (max 300mA fused) Monitored |
| Operating Temperature (°C) | -5 to +40 |
| Storage Temperature (°C) | -20 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | 4-Wire Conventional MAGFIRE Devices |
| Additional Information | Integral sound alarm button |
| GTIN | 5060224100882 |
| Commodity Code | 8531103000 |
| Materials | Steel |
| Mounting | Surface |
| Wiring Type | 4-Wire Conventional |
| Zones | 4 Detection Zones 2 Sounder Circuits |
| Thresholds for Zone Conditions (mA) | 0 - 2 (Fault condition), 2 - 6 (Normal condition), 6 - 110 (Fire condition) |
