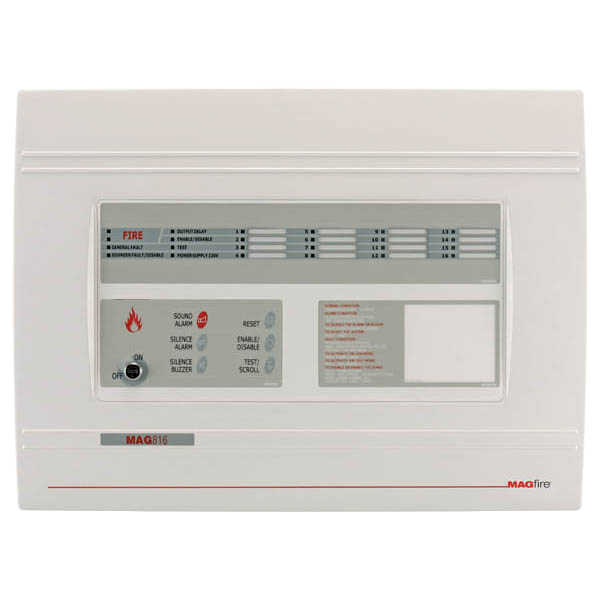

MAG MAG816 Conventional 8-16 Zone ABS Fire Panel
Free Delivery
£
222
29
(Incl. VAT)
3 Years Warranty
conventional 8-16 zone ABS FIRE PANEL
About this product
About this product
The MAG MAG816 is a Conventional 8-16 Zone ABS Fire Panel.
Key Features
- Auxiliary Output: 24V DC (300mA fused)
- Maximum Detectors Per Zone: 32
- Call Points Per Zone: Unlimited
- Genuine MAG fire alarm panel supplied by WME
- Backed by WME UK stock and trade support
- Free UK delivery on orders over £129
-
Download
- MAG816 Tech Sheet
£
222
29
Price
Technical Details
Specifications
Dimensions (mm)
456 x 350 x 125
Maximum Detectors Per Zone
32
Call Points Per Zone
Unlimited
On Board Sounder Circuits (4)
24V DC (maximum 300mA fused) Monitored
Weight (Kg)
Kg (Without Battery)
Warranty (Years)
3
Supply Voltage (V AC)
230
Power Availability (A)
0.7
Mains Fail Consumption (mA)
130 (1 zone expander)
Standby Supply
Up to 12V 17Ah (Battery Calculation Required)
Zone End Of Line
Custom EoL; MAG-EOL
Fault/Fire Relay
Volt free 500mA @ 24V (max load)
Auxiliary Output
24V DC (300mA fused)
Operating Temperature (°C)
-5 to +40
Storage Temperature (°C)
-20 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
4-Wire Conventional MAGFIRE Devices
Additional Information
Integral sound alarm button
GTIN
5060224100899
Commodity Code
8531103000
Dimensions
Dimensions (mm)
456 x 350 x 125
Specifications
| Dimensions (mm) | 456 x 350 x 125 |
|---|---|
| Maximum Detectors Per Zone | 32 |
| Call Points Per Zone | Unlimited |
| On Board Sounder Circuits (4) | 24V DC (maximum 300mA fused) Monitored |
| Weight (Kg) | Kg (Without Battery) |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 230 |
| Power Availability (A) | 0.7 |
| Mains Fail Consumption (mA) | 130 (1 zone expander) |
| Standby Supply | Up to 12V 17Ah (Battery Calculation Required) |
| Zone End Of Line | Custom EoL; MAG-EOL |
| Fault/Fire Relay | Volt free 500mA @ 24V (max load) |
| Auxiliary Output | 24V DC (300mA fused) |
| Operating Temperature (°C) | -5 to +40 |
| Storage Temperature (°C) | -20 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | 4-Wire Conventional MAGFIRE Devices |
| Additional Information | Integral sound alarm button |
| GTIN | 5060224100899 |
| Commodity Code | 8531103000 |
Dimensions
| Dimensions (mm) | 456 x 350 x 125 |
|---|
