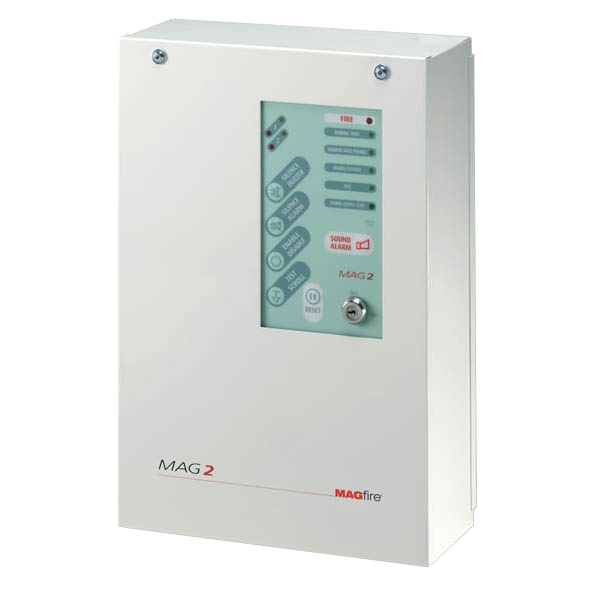

MAG MAG2 2 Zone Fire Panel - Metal Casing
About this product
The MAG MAG2 is a 2 Zone Fire Panel - Metal Casing.
Key Features
- Active end of line monitoring and head removal
- Unlimited number of call points per zone
- Integral sound alarm button
- Class change' facility
- Genuine ESP fire alarm panel supplied by WME
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's fire alarm panel products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The MAG MAG2 is a practical choice wherever a reliable fire alarm panel is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | MAG |
| Product code | MAG2 |
| Dimensions (mm) | 200 x 290 x 80 |
| Maximum Detectors Per Zone | 30 |
| Call Points Per Zone | Unlimited |
| Weight (Kg) | 2.7Kg (Without Battery) |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 230 |
| Power Availability (A) | 0.7 |
| Mains Fail Consumption (mA) | 50 |
| Standby Supply | Up to 12V 7Ah (Battery Calculation Required) |
| Zone End Of Line | Custom EoL; MAG-EOL |
| Fault/Fire Relay | Volt free 500mA @ 24V (max load) |
| Auxiliary Output | 24V DC (300mA fused) |
| Sounder 1 Output | 24V DC (max 300mA fused) Monitored |
| Sounder 2 Output | 24V DC (max 300mA fused) Monitored |
| Operating Temperature (°C) | -5 to +40 |
| Storage Temperature (°C) | -20 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | 4-Wire Conventional MAGFIRE Devices |
| Additional Information | Integral sound alarm button |
| GTIN | 5060224100868 |
| Commodity Code | 8531103000 |
