MAG MAGISOWP Fire Isolation Switch (white)
£
16
01
(Incl. VAT)
3 Years Warranty
Fire Isolation Switch (white)
About this product
About this product

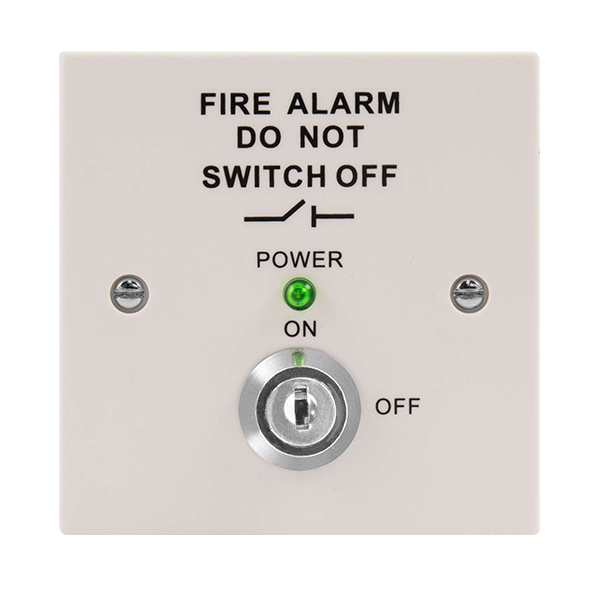

The MAGISOWP is a white fire panel isolator switch from ESP's Fire Protection range. It isolates the mains voltage supply to the fire system, switching both the live and neutral supply, and complies with BS5839 Part1.
Key features
- Isolates the mains voltage supply to the fire system
- Both the live and neutral supply are switched; double pole
- Enables safety for maintenance and offers protection against tamper; key switch
- Complies with BS5839 Part1
- 240 V AC supply; output relay rating 240V AC @ 6Amps
- Power indicator LED; green LED operation colour
- Surface or flush mounting (surface back box supplied); fits a standard 1 gang back box
Frequently asked questions
What does the MAGISOWP isolate?
The mains voltage supply to the fire system; both the live and neutral supply are switched.
Which standard does it comply with?
BS5839 Part1.
How is it operated?
It is a key switch.
Will it fit a standard back box?
Yes: it fits a standard 1 gang back box, and the surface back box is supplied.
What is its output relay rating?
240V AC @ 6Amps.
-
Download
- MAGISOWP Tech Sheet
£
16
01
FAST delivery by Order within
Price
Technical Details
Specifications
Colour
White
Materials
Housing: ABS
Mounting
Surface or Flush (Surface Back Box Supplied)
Pole Type
Double Pole
Switching Type
Double Pole
Warranty (Years)
3
Supply Voltage (V AC)
240
Maximum Cable Size (mm²)
2.5
Power Indicator
LED On
LED Operation Colour
Green
Switch type
Key
Dimensions (mm)
86.5 x 86.5
Output Relay Rating
240V AC @ 6Amps
Features
Fits Standard 1 Gang Back Box
Specifications
| Colour | White |
|---|---|
| Materials | Housing: ABS |
| Mounting | Surface or Flush (Surface Back Box Supplied) |
| Pole Type | Double Pole |
| Switching Type | Double Pole |
| Warranty (Years) | 3 |
| Supply Voltage (V AC) | 240 |
| Maximum Cable Size (mm²) | 2.5 |
| Power Indicator | LED On |
| LED Operation Colour | Green |
| Switch type | Key |
| Dimensions (mm) | 86.5 x 86.5 |
| Output Relay Rating | 240V AC @ 6Amps |
| Features | Fits Standard 1 Gang Back Box |
Fire Isolation Switch (white) features
MAG MAGISOWP Fire Isolation Switch (white)
