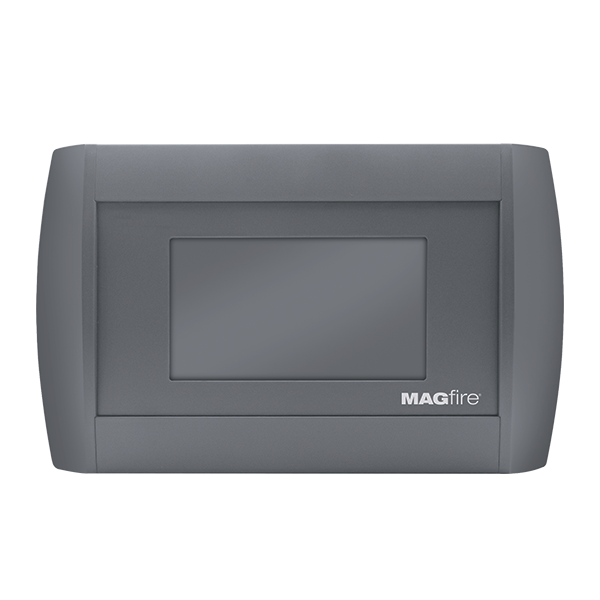

MAG MAGPRO-REP01 Addressable Fire Alarm Repeater Panel
About this product
The MAG MAGPRO-REP01, from ESP's Fire Protection range, is an addressable repeater panel with a 7” TFT touchscreen for MAGPRO series fire panels (CIE). It can reset, evacuate and silence the sounders and buzzers of all network panels, on a loop network of up to 64 panels.
Key features
- 7” TFT touchscreen with touchscreen GUI
- Reset, evacuate and silence sounders and buzzers of all network panels
- Compatible with MAGPRO series CIE
- Loop network, up to 64 networked panels; optional redundant network connection
- RS-485, up to 1,000 m to the fire panel
- Multilanguage support; changeable company logo on the standby screen
- 10,000-event log, realtime clock, micro USB for firmware updates
- Slim grey ABS housing, 200 x 330 x 48 mm
Frequently asked questions
Which panels does the MAGPRO-REP01 work with?
MAGPRO series CIE. MAGPRO16/G needs firmware 4.5.2 or above, MAGPRO96 6.7.2 or above and MAGPRO9601 1.1.4 or above.
What can be controlled from the repeater?
Reset, evacuate and silence of the sounders and buzzers of all network panels.
How far can it be from the fire panel?
Up to 1,000 m, over RS-485.
How many panels can be networked?
Up to 64 on a loop network.
Can the display show a company logo?
Yes. The company logo on the main standby screen is changeable.
Which EN54 part is it marked to?
EN54-2.
-
Download
- MAGPRO-REP01 Tech Sheet
Specifications
Dimensions
Specifications
| Dimensions (mm) | 200 x 330 x 48 |
|---|---|
| Colour | Grey |
| Materials | Housing: ABS |
| Maximum Number of Events in Log | 10,000 |
| Maximum Distance to Fire Panel (m) | 1,000 |
| Maximum Number of Networked Panels | 64 |
| Type of Network | Loop |
| Connection for Firmware Update(s) | Micro USB |
| - MAGPRO16 | Version 4.5.2 or Higher |
| - MAGPRO96 | Version 6.7.2 or Higher |
| Weight (Kg) | 0.5 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 24 (± 4) |
| Maximum Cable Size (mm²) | 2.5 |
| Maximum Current Consumption | 0.4A |
| Communication Type | RS-485 |
| Display | 7" TFT Touchscreen |
| Clock | Realtime |
| User Interaction | Touchscreen GUI |
| Operating Temperature (°C) | -5 to +40 |
| Storage Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 95 |
| Compatible Products | Compatible with MAGPRO series of CIE's |
| Ingress Protection | IP40 |
Dimensions
| Dimensions (mm) | 200 x 330 x 48 |
|---|
