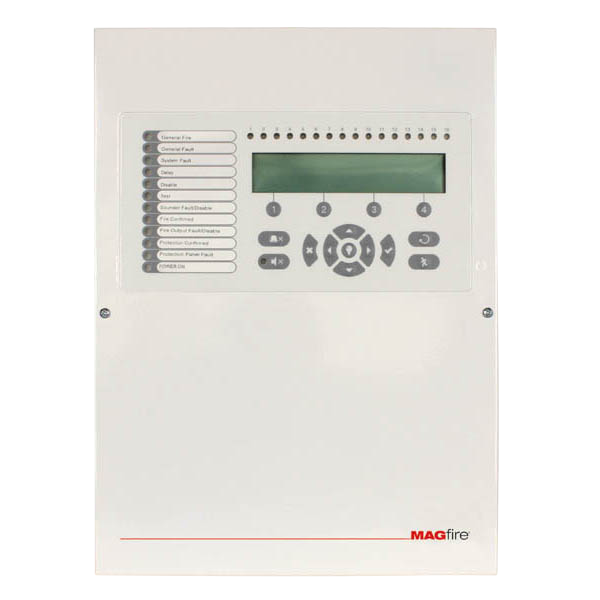

MAG MAGPRO16 Addressable 16 Zone Fire Panel
About this product
The MAG MAGPRO16 is an Addressable 16 Zone Fire Panel. Featuring addressable operation, it is built for dependable professional installation.
Key Features
- 16 zones
- Maximum 250 devices per loop
- Memory log: 10,000 events
- Networkable up to 64 panels
- Addressable operation
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's fire alarm panel products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The MAG MAGPRO16 is a practical choice wherever a reliable fire alarm panel is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | MAG |
| Product code | MAGPRO16 |
| Dimensions (mm) | 306 x 412 x 81.2 |
| Maximum Number of Events in Log | 10240 |
| Volume Modes | 2 (Low & High) |
| Device Loading Units (DLU's) - Low | 13 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Standby Supply | Up to 12V 17Ah (Battery Calculation Required) |
| PSU Output | 4.7A |
| Loops | 1 |
| Auxiliary Output | 1; 24V DC @ 500mA |
| Unmonitored Outputs | 4 (24VDC@15A) |
| Sound Output @ 1m (Low) (db) | 65+ |
| Sound Output @ 1m (High) (db) | 85+ |
| Communication Protocol | Closed Protocol |
| Protocol Type | Custom (Closed) |
| Maximum Communication Range (m) | Dependant on Loop Calculation |
| Operating Temperature (°C) | -5 to +40 |
| Weight | 4.6 kg |
| GTIN | 5060224104842 |
| Commodity Code | 8531103000 |
