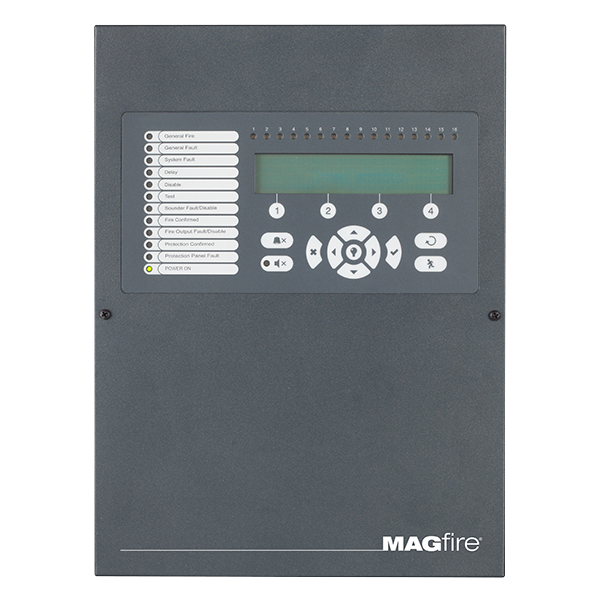

MAG MAGPRO16G Addressable 16 Zone Fire Panel in Graphite Grey
Free Delivery
£
425
45
(Incl. VAT)
3 Years Warranty
Addressable 16 Zone Fire Panel in Graphite Grey
About this product
About this product
The MAGPRO16G is an addressable 16 zone fire panel in graphite grey, from ESP's Fire Protection range, for MAGPRO analogue addressable devices. It has 1 loop, expandable up to 2, takes up to 250 devices per loop (loop calculation required) and is networkable up to 32 panels.
Key features
- 16 zones; 1 loop, expandable up to 2
- Up to 250 devices per loop (loop calculation required)
- Networkable up to 32 panels
- Class change function
- Micro USB port for PC connection; loop and battery calculator software included
- 90 - 264 V AC supply, 4.7A PSU output, standby up to 12V 17Ah (battery calculation required)
- Auxiliary output 24V DC @ 500mA and 4 unmonitored outputs
- Graphite grey steel housing, surface mounted, 306 x 412 x 81.2 mm
Frequently asked questions
How many devices can the MAGPRO16G take?
Up to 250 devices per loop, subject to loop calculation, on 1 loop that is expandable up to 2.
How many panels can be networked?
Up to 32 panels. The MAGPRO-NIC network interface card is an accessory for it.
What standby battery does it take?
Up to 12V 17Ah, sized by battery calculation; BAT18 (12V 17Ah SLA) is an accessory for it.
Which EN54 parts is it marked to?
EN54-2 and EN54-4.
What colour is it?
Graphite grey.
-
Download
- MAGPRO16G Tech Sheet
£
425
45
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
306 x 412 x 81.2
Maximum Number of Events in Log
10240
Volume Modes
2 (Low & High)
Device Loading Units (DLU's) - Low
13
Weight (Kg)
4.2
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Standby Supply
Up to 12V 17Ah (Battery Calculation Required)
PSU Output
4.7A
Loops
1
Auxiliary Output
1; 24V DC @ 500mA
Unmonitored Outputs
4 (24VDC@15A)
Sound Output @ 1m (Low) (db)
65+
Sound Output @ 1m (High) (db)
85+
Communication Protocol
Closed Protocol
Protocol Type
Custom (Closed)
Maximum Communication Range (m)
Dependant on Loop Calculation
Operating Temperature (°C)
-5 to +40
Zones
16
Maximum Devices Per Loop
Up to 250 Devices (Loop Calculation Required)
Maximum Number of Loops
Expandable up to 2
Wiring Type
Analogue Addressable (MAGPRO)
Operating Voltage (V AC)
90 - 264
Operating Voltage (Battery Powered Panel)(V DC)
23 - 26
Materials
Steel
Mounting
Surface
Dimensions
Dimensions (mm)
306 x 412 x 81.2
Specifications
| Dimensions (mm) | 306 x 412 x 81.2 |
|---|---|
| Maximum Number of Events in Log | 10240 |
| Volume Modes | 2 (Low & High) |
| Device Loading Units (DLU's) - Low | 13 |
| Weight (Kg) | 4.2 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Standby Supply | Up to 12V 17Ah (Battery Calculation Required) |
| PSU Output | 4.7A |
| Loops | 1 |
| Auxiliary Output | 1; 24V DC @ 500mA |
| Unmonitored Outputs | 4 (24VDC@15A) |
| Sound Output @ 1m (Low) (db) | 65+ |
| Sound Output @ 1m (High) (db) | 85+ |
| Communication Protocol | Closed Protocol |
| Protocol Type | Custom (Closed) |
| Maximum Communication Range (m) | Dependant on Loop Calculation |
| Operating Temperature (°C) | -5 to +40 |
| Zones | 16 |
| Maximum Devices Per Loop | Up to 250 Devices (Loop Calculation Required) |
| Maximum Number of Loops | Expandable up to 2 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Operating Voltage (V AC) | 90 - 264 |
| Operating Voltage (Battery Powered Panel)(V DC) | 23 - 26 |
| Materials | Steel |
| Mounting | Surface |
Dimensions
| Dimensions (mm) | 306 x 412 x 81.2 |
|---|
