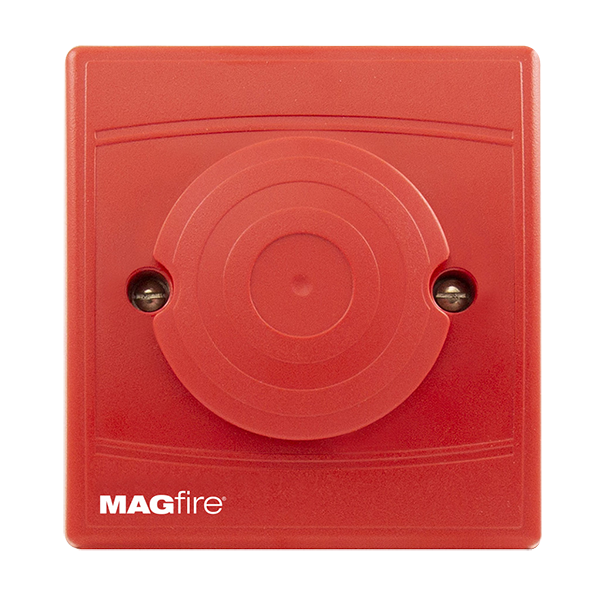

MAG MAGBSR Red Bedhead Sounder
£
23
26
(Incl. VAT)
3 Years Warranty
Red Bedhead Sounder
About this product
About this product
The MAG MAGBSR, from ESP's Fire Protection range, is a red bedhead sounder for conventional 4-wire sounder circuits. It has 2 volume modes, low and high, giving 86 dB and 96 dB at 1m, and 3 tones.
Key features
- Red bedhead sounder
- Suitable for conventional 4-wire sounder circuits
- 2 volume modes (low & high); 3 tones
- Sound output @ 1m: 86 dB low, 96 dB high
- Surface or flush mounting (surface back box not supplied)
- EN54-3
Frequently asked questions
What circuits is the MAGBSR for?
Conventional 4-wire sounder circuits.
How loud is it?
86 dB at 1m on low and 96 dB at 1m on high.
Can it be flush mounted?
Yes, it mounts surface or flush; the surface back box is not supplied.
What voltage does it need?
20 - 28 V DC.
How many tones does it have?
3.
-
Download
- MAGBSR Tech Sheet
£
23
26
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
100 x 89 x 39
Colour
Red
Mounting
Surface or Flush (Surface Back Box Not Supplied)
Volume Modes
2 (Low & High)
Volume levels
Low & High
Number of Available Tones
3
Weight (Kg)
0.6
Warranty (Years)
3
Operating Voltage (V DC)
20 - 28
Maximum Cable Size (mm²)
2.5
Power Consumption (mA)
3.5 - 6
Sound Output @ 1m (Low) (db)
86
Sound Output @ 1m (High) (db)
96
Ingress Protection
IP21C
Operating Temperature (°C)
+5 to +50
Relative Humidity Resistance (%)
95 (non-condensing)
Materials
Fire Rated ABS
Wiring Type
4-Wire Conventional
Standards
EN54-3
Dimensions
Dimensions (mm)
100 x 89 x 39
Specifications
| Dimensions (mm) | 100 x 89 x 39 |
|---|---|
| Colour | Red |
| Mounting | Surface or Flush (Surface Back Box Not Supplied) |
| Volume Modes | 2 (Low & High) |
| Volume levels | Low & High |
| Number of Available Tones | 3 |
| Weight (Kg) | 0.6 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 20 - 28 |
| Maximum Cable Size (mm²) | 2.5 |
| Power Consumption (mA) | 3.5 - 6 |
| Sound Output @ 1m (Low) (db) | 86 |
| Sound Output @ 1m (High) (db) | 96 |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | +5 to +50 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Materials | Fire Rated ABS |
| Wiring Type | 4-Wire Conventional |
| Standards | EN54-3 |
Dimensions
| Dimensions (mm) | 100 x 89 x 39 |
|---|
