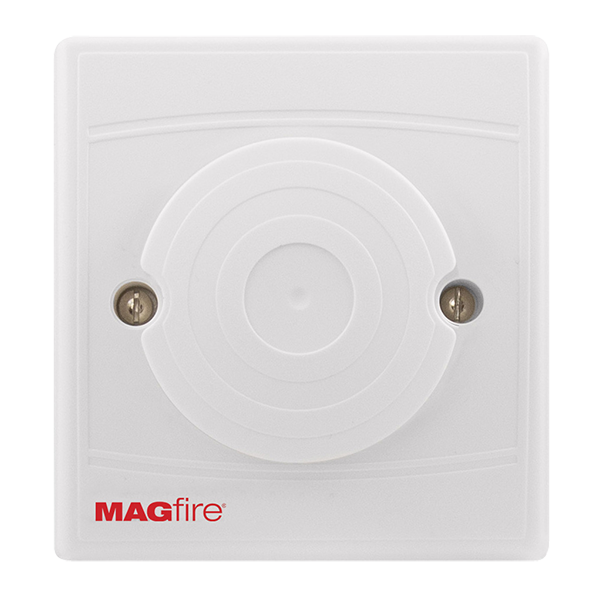

MAG MAGBSW White Bedhead Sounder
£
18
65
(Incl. VAT)
3 Years Warranty
White Bedhead Sounder
About this product
About this product
The MAG MAGBSW is a white bedhead sounder from ESP's Fire Protection range. It suits conventional 4-wire sounder circuits, offers 3 tones and switches between low and high volume modes: 86 dB and 96 dB at 1m.
Key features
- White bedhead sounder
- Suitable for conventional 4-wire sounder circuits
- 2 volume modes (low & high); 3 tones
- Sound output @ 1m: 86 dB low, 96 dB high
- Surface or flush mounting (surface back box not supplied)
- EN54-3
Frequently asked questions
Is the MAGBSW for 4-wire circuits?
Yes, it is suitable for conventional 4-wire sounder circuits.
What are its volume modes?
2: low (86 dB at 1m) and high (96 dB at 1m).
How is it mounted?
Surface or flush; the surface back box is not supplied.
What does it draw?
3.5 - 6 mA at 20 - 28 V DC.
What is its operating temperature?
+5 to +50 °C.
-
Download
- MAGBSW Tech Sheet
£
18
65
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
100 x 89 x 39
Colour
White
Mounting
Surface or Flush (Surface Back Box Not Supplied)
Volume Modes
2 (Low & High)
Volume levels
Low & High
Number of Available Tones
3
Weight (Kg)
0.6
Warranty (Years)
3
Operating Voltage (V DC)
20 - 28
Maximum Cable Size (mm²)
2.5
Power Consumption (mA)
3.5 - 6
Sound Output @ 1m (Low) (db)
86
Sound Output @ 1m (High) (db)
96
Ingress Protection
IP21C
Operating Temperature (°C)
+5 to +50
Relative Humidity Resistance (%)
95 (non-condensing)
Materials
Fire Rated ABS
Wiring Type
4-Wire Conventional
Standards
EN54-3
Dimensions
Dimensions (mm)
100 x 89 x 39
Specifications
| Dimensions (mm) | 100 x 89 x 39 |
|---|---|
| Colour | White |
| Mounting | Surface or Flush (Surface Back Box Not Supplied) |
| Volume Modes | 2 (Low & High) |
| Volume levels | Low & High |
| Number of Available Tones | 3 |
| Weight (Kg) | 0.6 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 20 - 28 |
| Maximum Cable Size (mm²) | 2.5 |
| Power Consumption (mA) | 3.5 - 6 |
| Sound Output @ 1m (Low) (db) | 86 |
| Sound Output @ 1m (High) (db) | 96 |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | +5 to +50 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Materials | Fire Rated ABS |
| Wiring Type | 4-Wire Conventional |
| Standards | EN54-3 |
Dimensions
| Dimensions (mm) | 100 x 89 x 39 |
|---|
