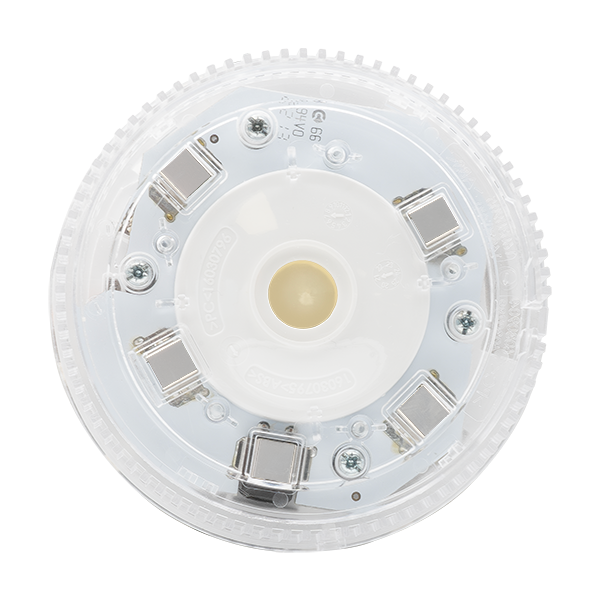

MAG MAGPRO-DBSS1 Addressable Fire Sounder Strobe Base
£
53
94
(Incl. VAT)
3 Years Warranty
Addressable Fire Sounder Strobe Base
About this product
About this product
The MAGPRO-DBSS1 is a white addressable fire sounder strobe deep base from ESP's Fire Protection range, for the MAGPRO analogue addressable system. It has a red strobe flashing at 1Hz, 32 tones and 2 volume modes, and it requires MAGPRO-DB or MAGPRO-DB23W bases for installation.
Key features
- Requires MAGPRO-DB or MAGPRO-DB23W bases for installation
- Compatible with MAGPRO-SD1, MAGPRO-HD1 & MAGPRO-CSD1
- Red strobe, flash rate 1Hz
- 32 tones; 2 volume modes (low & high): 81 dB low, 88 dB high @ 1m
- Analogue addressable (MAGPRO) wiring; custom (closed) protocol
- Operating voltage 16 - 32 V DC; maximum consumption at communication 470 μA
- White (RAL 9016) ABS housing, ø105 x 22 mm
Frequently asked questions
Does the MAGPRO-DBSS1 need another base?
Yes: it requires MAGPRO-DB or MAGPRO-DB23W bases for installation.
Which products is it compatible with?
The MAGPRO-SD1, MAGPRO-HD1 & MAGPRO-CSD1; also the MAGPRO series of CIEs and detectors, and the MAGPRO-DB.
How loud is it?
81 dB on low and 88 dB on high, at 1m.
Which firmware versions does it require?
It requires firmware version MAGPRO16/G V6.6.2, MAGPRO96/G V4.5.2 & MAGPRO9601 1.1.3.
What is its strobe?
A red strobe with a flash rate of 1Hz.
-
Download
- MAGPRO-DBSS1 Tech Sheet
£
53
94
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø105 x 22
Materials
Housing: ABS
Strobe Colour
Red
Flash Rate
1Hz
Volume Modes
2 (Low & High)
Number of Available Tones
32
Weight (Kg)
0.12
Warranty (Years)
3
Operating Voltage (V DC)
16 - 32
Maximum Consumption at Communication (μA)
470
Wiring Type
Analogue Addressable (MAGPRO)
Sound Output @ 1m (Low) (db)
81
Sound Output @ 1m (High) (db)
88
Protocol Type
Custom (Closed)
Ingress Protection
IP21C (with mounted detector)
Operating Temperature (°C)
-10 to +55
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
MAGPRO series of CIEs, MAGPRO series of Detectors, MAGPRO-DB
Colour
White RAL 9016
Maximum Consumption In Activation - Tone Type 27 - High Volume Level (mA)
10 (@27V DC)
Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (mA)
3 (@27V DC)
Additional Information
Requires MAGPRO-DB to connect to MAGPRO loop; Requires firmware version; MAGPRO16/G V6.6.2, MAGPRO96/G V4.5.2 & MAGPRO9601 1.1.3
Dimensions
Dimensions (mm)
ø105 x 22
Specifications
| Dimensions (mm) | ø105 x 22 |
|---|---|
| Materials | Housing: ABS |
| Strobe Colour | Red |
| Flash Rate | 1Hz |
| Volume Modes | 2 (Low & High) |
| Number of Available Tones | 32 |
| Weight (Kg) | 0.12 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 16 - 32 |
| Maximum Consumption at Communication (μA) | 470 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Sound Output @ 1m (Low) (db) | 81 |
| Sound Output @ 1m (High) (db) | 88 |
| Protocol Type | Custom (Closed) |
| Ingress Protection | IP21C (with mounted detector) |
| Operating Temperature (°C) | -10 to +55 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | MAGPRO series of CIEs, MAGPRO series of Detectors, MAGPRO-DB |
| Colour | White RAL 9016 |
| Maximum Consumption In Activation - Tone Type 27 - High Volume Level (mA) | 10 (@27V DC) |
| Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (mA) | 3 (@27V DC) |
| Additional Information | Requires MAGPRO-DB to connect to MAGPRO loop; Requires firmware version; MAGPRO16/G V6.6.2, MAGPRO96/G V4.5.2 & MAGPRO9601 1.1.3 |
Dimensions
| Dimensions (mm) | ø105 x 22 |
|---|
