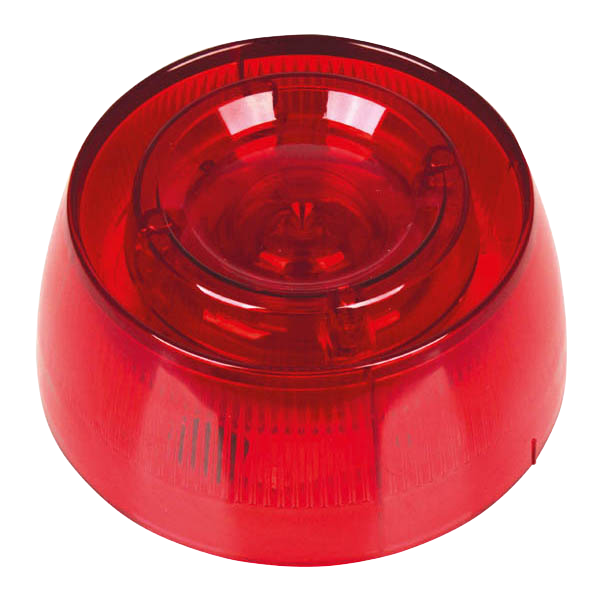

MAG MAGPRO-WSS Sounder Strobe, EN54-3
£
48
96
(Incl. VAT)
3 Years Warranty
Sounder Strobe, EN54-3
About this product
About this product
The MAG MAGPRO-WSS, from ESP's Fire Protection range, is an addressable sounder strobe: a piezo sounder with a red strobe flashing at 1Hz, loop synchronised and loop powered on analogue addressable (MAGPRO) wiring.
Key features
- Piezo sounder
- Loop synchronisation & powered
- Red strobe, 1Hz flash rate
- 32 tones; 2 volume modes (low & high)
- Sound output @ 1m: 75 dB (low), 95+ dB (high)
- Operating voltage 15 - 32 V DC
- Base MAGPRO-DB supplied separately
- EN54-3
Frequently asked questions
Is a base included?
No: the MAGPRO-DB base is supplied separately.
How loud is the MAGPRO-WSS?
75 dB at 1m on low and 95+ dB on high.
How many tones does it have?
32, with 2 volume modes (low & high).
What is the strobe flash rate?
1Hz, red.
How is it powered?
Loop synchronised and loop powered, at 15 - 32 V DC.
-
Download
- MAGPRO-WSS Tech Sheet
£
48
96
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø116 x 55 (Without Base)
Colour
Red
Materials
Housing: SAN (Styrene Acrylonitrile Resin)
Strobe Colour
Red
Flash Rate
1Hz
Volume Modes
2 (Low & High)
Number of Available Tones
32
Weight (Kg)
0.183
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Nominal Consumption Standby (μA)
<500 (@27V DC)
Sound Output @ 1m (Low) (db)
75
Sound Output @ 1m (High) (db)
95+
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +50
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Wiring Type
Analogue Addressable (MAGPRO)
Maximum Consumption In Activation - Tone Type 27 - High Volume Level (mA)
<13
Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (mA)
<5
Accessories
MAGPRO-DB: Detector Base; MAGPRO-PROG: Address Programming Tool For MAGPRO Devices; MAGPRO-WSBIP65: Addressable Fire Alarm Sounder IP65 Base
Dimensions
Dimensions (mm)
ø116 x 55 (Without Base)
Specifications
| Dimensions (mm) | ø116 x 55 (Without Base) |
|---|---|
| Colour | Red |
| Materials | Housing: SAN (Styrene Acrylonitrile Resin) |
| Strobe Colour | Red |
| Flash Rate | 1Hz |
| Volume Modes | 2 (Low & High) |
| Number of Available Tones | 32 |
| Weight (Kg) | 0.183 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Nominal Consumption Standby (μA) | <500 (@27V DC) |
| Sound Output @ 1m (Low) (db) | 75 |
| Sound Output @ 1m (High) (db) | 95+ |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +50 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Maximum Consumption In Activation - Tone Type 27 - High Volume Level (mA) | <13 |
| Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (mA) | <5 |
| Accessories | MAGPRO-DB: Detector Base; MAGPRO-PROG: Address Programming Tool For MAGPRO Devices; MAGPRO-WSBIP65: Addressable Fire Alarm Sounder IP65 Base |
Dimensions
| Dimensions (mm) | ø116 x 55 (Without Base) |
|---|
Sounder Strobe, EN54-3 features
MAG MAGPRO-WSS Sounder Strobe, EN54-3
