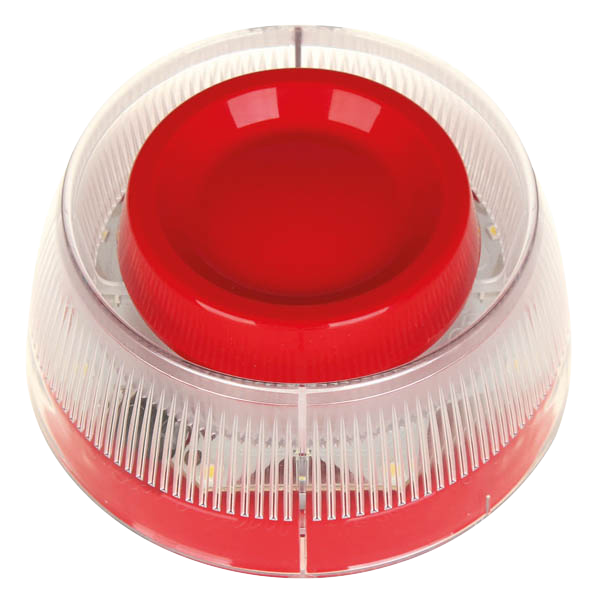

MAG MAGPRO-WSS23 Sounder Strobe, EN54-23
£
67
64
(Incl. VAT)
3 Years Warranty
Sounder Strobe, EN54-23
About this product
About this product
The MAG MAGPRO-WSS23, from ESP's Fire Protection range, is a white addressable sounder strobe: a piezo sounder with a white strobe flashing at 1Hz, coverage volume W-2, 4-6, loop synchronised and loop powered on analogue addressable (MAGPRO) wiring.
Key features
- Piezo sounder, sounder type B
- White strobe, 1Hz flash rate; coverage volume W-2, 4-6
- Loop synchronisation & powered
- 32 tones; 2 volume modes (low & high)
- Sound output @ 1m: 75 dB (low), 95+ dB (high)
- Operating voltage 15 - 32 V DC
- Base MAGPRO-DB ordered separately
- EN54-23
Frequently asked questions
Is a base included?
No: the MAGPRO-DB base is ordered separately.
What is the strobe's coverage volume?
W-2, 4-6, with a white strobe at a 1Hz flash rate.
How loud is the MAGPRO-WSS23?
75 dB at 1m on low and 95+ dB on high.
How much current does it draw with the strobe on?
On tone type 27, <22 mA at the high volume level and <11 mA at the low volume level (sounder & strobe).
How is it powered?
Loop synchronised and loop powered, at 15 - 32 V DC.
-
Download
- MAGPRO-WSS23 Tech Sheet
£
67
64
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø116 x 55 (Without Base)
Colour
White
Materials
Housing: SAN (Styrene Acrylonitrile Resin)
Strobe Colour
White
Flash Rate
1Hz
Sounder Type
B
Volume Modes
2 (Low & High)
Coverage Volume
W-2, 4-6
Number of Available Tones
32
Weight (Kg)
0.183
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Nominal Consumption Standby (μA)
<500 (@27V DC)
Sound Output @ 1m (Low) (db)
75
Sound Output @ 1m (High) (db)
95+
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +50
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Wiring Type
Analogue Addressable (MAGPRO)
Maximum Consumption In Activation - Tone Type 27 - High Volume Level (Sounder Only) (mA)
<16.5
Maximum Consumption In Activation - Tone Type 27 - High Volume Level (Sounder & Strobe) (mA)
<22
Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (Sounder Only) (mA)
<5
Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (Sounder & Strobe) (mA)
<11
Accessories
MAGPRO-DB: Detector Base; MAGPRO-PROG: Address Programming Tool For MAGPRO Devices; MAGPRO-WSBIP65: Addressable Fire Alarm Sounder IP65 Base
Dimensions
Dimensions (mm)
ø116 x 55 (Without Base)
Specifications
| Dimensions (mm) | ø116 x 55 (Without Base) |
|---|---|
| Colour | White |
| Materials | Housing: SAN (Styrene Acrylonitrile Resin) |
| Strobe Colour | White |
| Flash Rate | 1Hz |
| Sounder Type | B |
| Volume Modes | 2 (Low & High) |
| Coverage Volume | W-2, 4-6 |
| Number of Available Tones | 32 |
| Weight (Kg) | 0.183 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Nominal Consumption Standby (μA) | <500 (@27V DC) |
| Sound Output @ 1m (Low) (db) | 75 |
| Sound Output @ 1m (High) (db) | 95+ |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +50 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Maximum Consumption In Activation - Tone Type 27 - High Volume Level (Sounder Only) (mA) | <16.5 |
| Maximum Consumption In Activation - Tone Type 27 - High Volume Level (Sounder & Strobe) (mA) | <22 |
| Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (Sounder Only) (mA) | <5 |
| Maximum Consumption In Activation - Tone Type 27 - Low Volume Level (Sounder & Strobe) (mA) | <11 |
| Accessories | MAGPRO-DB: Detector Base; MAGPRO-PROG: Address Programming Tool For MAGPRO Devices; MAGPRO-WSBIP65: Addressable Fire Alarm Sounder IP65 Base |
Dimensions
| Dimensions (mm) | ø116 x 55 (Without Base) |
|---|
