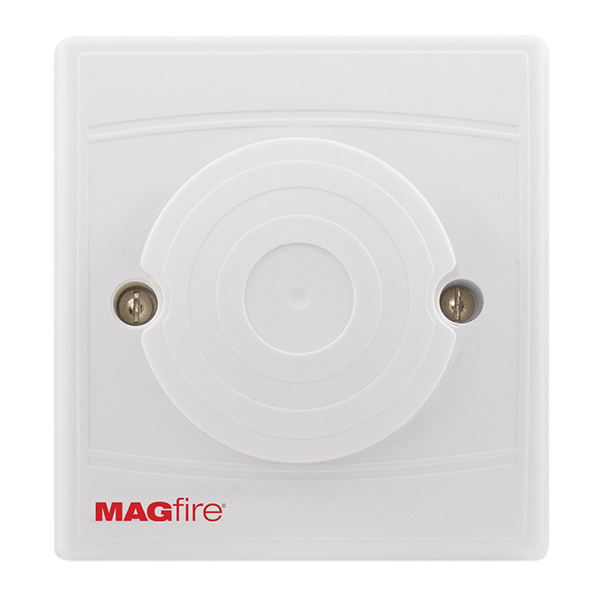

MAG MAGSWS White Surface Sounder
£
21
52
(Incl. VAT)
3 Years Warranty
White Surface Sounder
About this product
About this product
The MAGSWS is a MAGFIRE surface sounder with strobe, white with a red strobe, for 4-wire conventional systems. Its sound output at 1m is 86 dB (low) or 96 dB (high), with 3 tones.
Key features
- Surface sounder with strobe; red strobe
- Sound output @ 1m: 86 dB (low), 96 dB (high)
- 3 tones; low & high volume levels
- 4-wire conventional; 20 - 28 V DC
- 4 x 20mm knockouts for surface & glanded entry
- Surface only mounting; white, fire rated ABS housing
- Compatible with MAG2, MAG4, MAG816 and MAGPRO-IOSi
Frequently asked questions
How loud is the MAGSWS?
86 dB at 1m on low and 96 dB at 1m on high.
Does it have a strobe?
Yes: a red strobe.
What is it compatible with?
The MAG2, MAG4, MAG816 and MAGPRO-IOSi.
What wiring does it use?
4-wire conventional, at 20 - 28 V DC.
How is it mounted?
Surface only, with 4 x 20mm knockouts for surface & glanded entry.
-
Download
- MAGSWS Tech Sheet
£
21
52
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
100 x 89 x 74
Colour
White
Materials
Housing: Fire Rated ABS
Mounting
Surface Only
Strobe Colour
Red
Volume levels
Low & High
Number of Available Tones
3
Weight (Kg)
0.6
Warranty (Years)
3
Operating Voltage (V DC)
20 - 28
Maximum Cable Size (mm²)
2.5
Power Consumption (mA)
3.5 - 6
Wiring Type
4-Wire Conventional
Sound Output @ 1m (Low) (db)
86
Sound Output @ 1m (High) (db)
96
Ingress Protection
IP21C
Operating Temperature (°C)
+5 to +50
Relative Humidity Resistance (%)
95 (non-condensing)
Compatible Products
Compatible with MAG2, MAG4, MAG816 and MAGPRO-IOSi
Standards
EN54-3
Features
4 x 20mm knockouts for surface & glanded entry
Dimensions
Dimensions (mm)
100 x 89 x 74
Specifications
| Dimensions (mm) | 100 x 89 x 74 |
|---|---|
| Colour | White |
| Materials | Housing: Fire Rated ABS |
| Mounting | Surface Only |
| Strobe Colour | Red |
| Volume levels | Low & High |
| Number of Available Tones | 3 |
| Weight (Kg) | 0.6 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 20 - 28 |
| Maximum Cable Size (mm²) | 2.5 |
| Power Consumption (mA) | 3.5 - 6 |
| Wiring Type | 4-Wire Conventional |
| Sound Output @ 1m (Low) (db) | 86 |
| Sound Output @ 1m (High) (db) | 96 |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | +5 to +50 |
| Relative Humidity Resistance (%) | 95 (non-condensing) |
| Compatible Products | Compatible with MAG2, MAG4, MAG816 and MAGPRO-IOSi |
| Standards | EN54-3 |
| Features | 4 x 20mm knockouts for surface & glanded entry |
Dimensions
| Dimensions (mm) | 100 x 89 x 74 |
|---|
White Surface Sounder features
