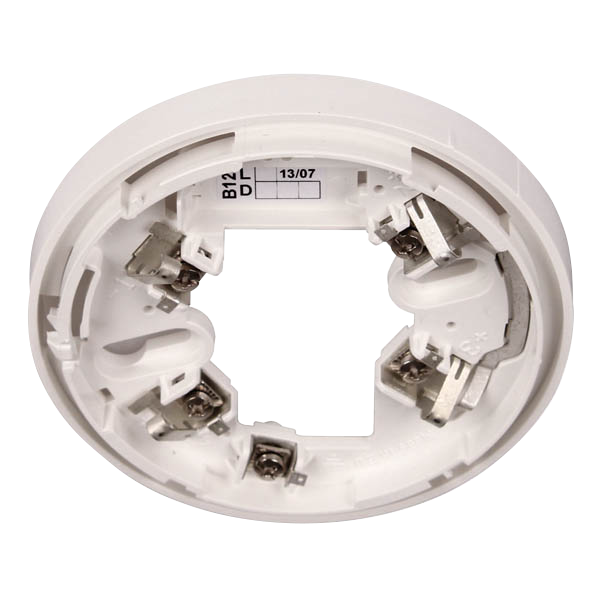

MAG MAGPRO-DB Detector Base
£
3
02
(Incl. VAT)
3 Years Warranty
Detector Base
About this product
About this product
The MAGFIRE MAGPRO-DB, from ESP's Fire Protection range, is an addressable detector base for MAGPRO detectors such as the MAGPRO-SD1 addressable smoke detector and MAGPRO-HD1 addressable thermal detector.
Key features
- Addressable detector base
- Compatible products include the MAGPRO-SD1 smoke detector and MAGPRO-HD1 thermal detector
- 15 - 30 V DC, 27 V DC nominal
- Cable size 0.4 - 2.0 mm²
- ø103 x 14.7 mm, 0.15 kg; ABS housing
Frequently asked questions
Which detectors does the MAGPRO-DB suit?
Compatible products include the MAGPRO-SD1 addressable smoke detector and the MAGPRO-HD1 addressable thermal detector.
What voltage does it operate on?
15 - 30 V DC, with 27 V DC nominal.
What cable size does it take?
0.4 - 2.0 mm².
How big is it?
ø103 x 14.7 mm, and it weighs 0.15 kg.
-
Download
- MAGPRO-DB Tech Sheet
£
3
02
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø103 x 14.7
Materials
Housing: ABS
Weight (Kg)
0.15
Warranty (Years)
3
Operating Voltage (V DC)
15 - 30
Nominal Operating Voltage (V DC)
27
Cable Size (mm²)
0.4 - 2.0
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
MAGPRO-SD1: Addressable Smoke Detector
Dimensions
Dimensions (mm)
ø103 x 14.7
Specifications
| Dimensions (mm) | ø103 x 14.7 |
|---|---|
| Materials | Housing: ABS |
| Weight (Kg) | 0.15 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 30 |
| Nominal Operating Voltage (V DC) | 27 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | MAGPRO-SD1: Addressable Smoke Detector |
Dimensions
| Dimensions (mm) | ø103 x 14.7 |
|---|
