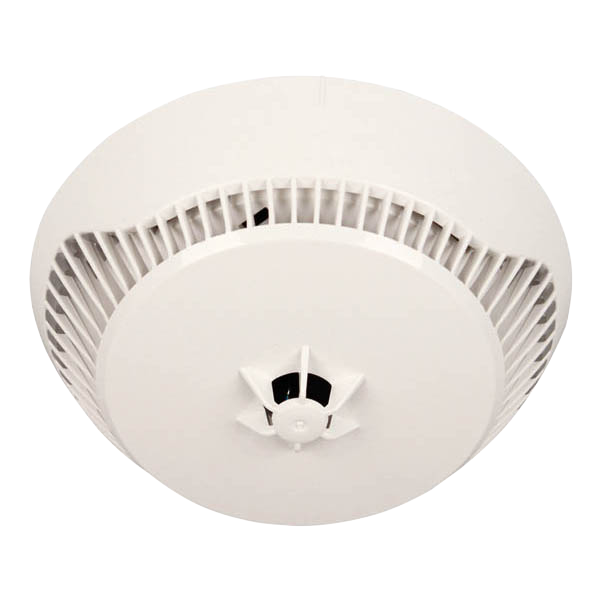

MAG MAGPRO-HSD1 Addressable Combined Smoke & Heat Detector
£
39
22
(Incl. VAT)
3 Years Warranty
Addressable Combined Smoke & Heat Detector
About this product
About this product
The MAG MAGPRO-HSD1, from ESP's Fire Protection range, is an analogue addressable (MAGPRO) smoke and heat detector, class A1R, with a day/night mode and sensitivity selected from the CIE. The base is supplied separately.
Key features
- Addressable smoke and heat detector, class A1R
- Sensitivity selected from the CIE: high, normal, middle or low
- Day/night mode
- Low profile design
- LED indication with 360° visibility
- Base supplied separately; compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
- Marked EN54-5 and EN54-7
Frequently asked questions
Is a base included?
No. The base is supplied separately; the detector is compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS.
How is the sensitivity set?
It is selected from the CIE: high, normal, middle or low.
What voltage does it need?
15 - 30 V DC, 27 V DC nominal.
Does it have a day/night mode?
Yes.
Which EN54 parts is it marked to?
EN54-5 and EN54-7.
-
Download
- MAGPRO-HSD1 Tech Sheet
£
39
22
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø103 x 42
Colour
White
Materials
Housing: ABS
Class
A1R
Available Sensitivity (Selected from CIE)
High/Normal/Middle/Low
Weight (Kg)
0.125
Warranty (Years)
3
Operating Voltage (V DC)
15 - 30
Nominal Operating Voltage (V DC)
27
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
Ingress Protection
IP30
Wiring Type
Analogue Addressable (MAGPRO)
Consumption in alarm state, with communication (mA)
6.5
Approvals
EN54-7, EN54-5
Dimensions
Dimensions (mm)
ø103 x 42
Specifications
| Dimensions (mm) | ø103 x 42 |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Class | A1R |
| Available Sensitivity (Selected from CIE) | High/Normal/Middle/Low |
| Weight (Kg) | 0.125 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 30 |
| Nominal Operating Voltage (V DC) | 27 |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS |
| Ingress Protection | IP30 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Consumption in alarm state, with communication (mA) | 6.5 |
| Approvals | EN54-7, EN54-5 |
Dimensions
| Dimensions (mm) | ø103 x 42 |
|---|
