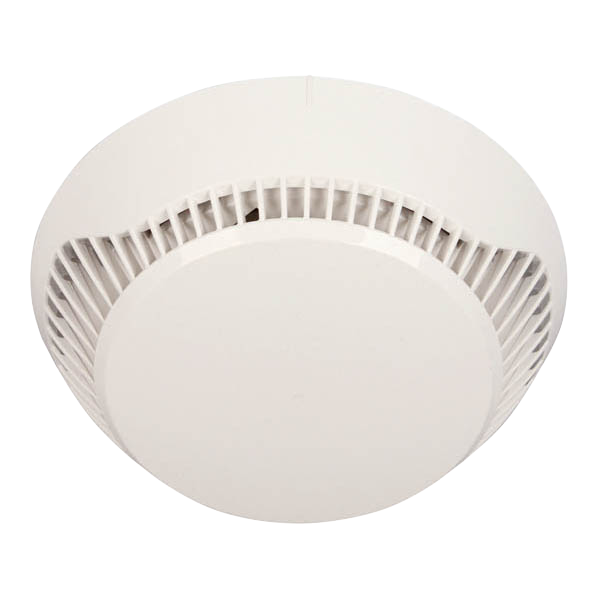

MAGFIRE MAGPRO-SD1 Addressable Smoke Detector
£
30
12
(Incl. VAT)
3 Years Warranty
Addressable Smoke Detector
About this product
About this product
The MAG MAGPRO-SD1 is an addressable smoke detector in ESP's Fire Protection range. Its sensitivity is selected from the CIE (high, normal, middle or low), and it has a day/night mode and LED indication with 360° visibility in a low profile design.
Key features
- Sensitivity selected from the CIE: high/normal/middle/low
- Day/Night mode
- LED indication with 360° visibility
- Low profile design, ø103 x 42 mm
- Base supplied separately; compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
- Analogue addressable wiring, 15 - 30 V DC
- IP30
- EN54-7
Frequently asked questions
Can the sensitivity be changed?
Yes: it is selected from the CIE — high, normal, middle or low.
Which bases does it fit?
MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS; the base is supplied separately.
What indication does it have?
LED indication with 360° visibility.
What does it weigh?
0.125 kg, in a low profile ø103 x 42 mm housing.
What is its operating temperature?
-10 to +60 °C.
-
Download
- MAGPRO-SD1 Tech Sheet
£
30
12
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø103 x 42
Colour
White
Materials
Housing: ABS
Available Sensitivity (Selected from CIE)
High/Normal/Middle/Low
Weight (Kg)
0.125
Warranty (Years)
3
Operating Voltage (V DC)
15 - 30
Nominal Operating Voltage (V DC)
27
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS
Ingress Protection
IP30
Wiring Type
Analogue Addressable
Consumption in quiescent state, no communication (μA)
<160 (@27V DC)
Consumption in quiescent state, with communication (μA)
< 200μA (@27V DC)
Consumption in alarm state, with communication (mA)
6.5
Maximum Output in alarm state at terminal RI (mA)
7.5 (7.5V)
Dimensions
Dimensions (mm)
ø103 x 42
Specifications
| Dimensions (mm) | ø103 x 42 |
|---|---|
| Colour | White |
| Materials | Housing: ABS |
| Available Sensitivity (Selected from CIE) | High/Normal/Middle/Low |
| Weight (Kg) | 0.125 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 30 |
| Nominal Operating Voltage (V DC) | 27 |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO-DB, MAGPRO-DBS and MAGPRO-DBSS |
| Ingress Protection | IP30 |
| Wiring Type | Analogue Addressable |
| Consumption in quiescent state, no communication (μA) | <160 (@27V DC) |
| Consumption in quiescent state, with communication (μA) | < 200μA (@27V DC) |
| Consumption in alarm state, with communication (mA) | 6.5 |
| Maximum Output in alarm state at terminal RI (mA) | 7.5 (7.5V) |
Dimensions
| Dimensions (mm) | ø103 x 42 |
|---|
