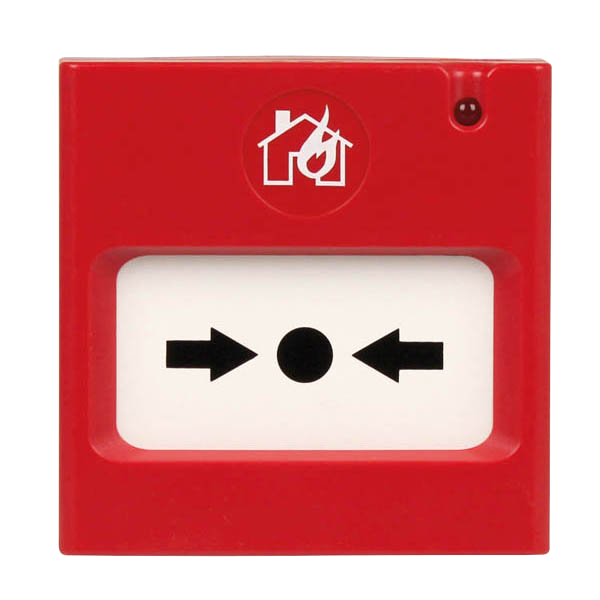

MAG MAGPRO-CP Manual Call Point
£
35
28
(Incl. VAT)
3 Years Warranty
Manual Call Point
About this product
About this product
The MAG MAGPRO-CP is a Manual Call Point. Featuring addressable operation, it is built for dependable professional installation.
Key Features
- Resettable call point
- Built in isolator
- Optional protective plastic cover
- Addressable operation
- Genuine ESP manual call point supplied by WME
-
Download
- MAGPRO-CP Tech Sheet
£
35
28
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
90 x 90 x 57
Colour
Red
Mounting
Surface or Flush (Surface Back Box Supplied)
Type of the frangible element
A
Weight (Kg)
0.175
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Cable Size (mm²)
0.4 - 2.0
Consumption Without Communication (μA)
125 (@27V DC)
Consumption With Communication (μA)
160 (@27V DC)
Consumption in Fire Mode (mA)
3
Wiring Type
Analogue Addressable (MAGPRO)
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Dimensions
Dimensions (mm)
90 x 90 x 57
Specifications
| Dimensions (mm) | 90 x 90 x 57 |
|---|---|
| Colour | Red |
| Mounting | Surface or Flush (Surface Back Box Supplied) |
| Type of the frangible element | A |
| Weight (Kg) | 0.175 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Consumption Without Communication (μA) | 125 (@27V DC) |
| Consumption With Communication (μA) | 160 (@27V DC) |
| Consumption in Fire Mode (mA) | 3 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
Dimensions
| Dimensions (mm) | 90 x 90 x 57 |
|---|
Manual Call Point features
MAG MAGPRO-CP Manual Call Point
