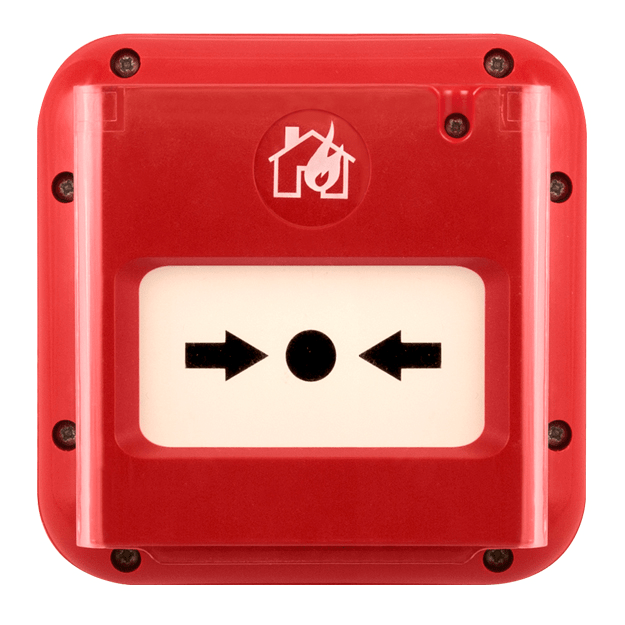

MAGFIRE MAGPRO-CPIP67 Addressable IP67 Manual Call Point
Free Delivery
£
157
21
(Incl. VAT)
3 Years Warranty
IP67 Rated Manual Call Point
About this product
About this product
The MAGPRO-CPIP67, from ESP's Fire Protection range, is an addressable IP67 manual call point. It is a resettable call point with a built in isolator, it takes an optional protective plastic cover, and its wiring type is analogue addressable (MAGPRO).
Key features
- Resettable call point
- Built in isolator
- IP67 rated
- Optional protective plastic cover
- Analogue addressable (MAGPRO) wiring; custom (closed) protocol
- Operating voltage 15 - 32 V DC; cable size 0.4 - 2.0 mm²
- Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
- Type A frangible element; red; surface only mounting
Frequently asked questions
Which products is the MAGPRO-CPIP67 compatible with?
The MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G.
Is it resettable?
Yes. It is a resettable call point with a built in isolator.
What is its ingress protection?
IP67.
Can it take a cover?
It takes an optional protective plastic cover; the MAGPRO-CPC pack of 5 call point covers is one of its accessories.
What wiring does it use?
Analogue addressable (MAGPRO), with a custom (closed) protocol and 0.4 - 2.0 mm² cable.
-
Download
- MAGPRO-CPIP67 Tech Sheet
£
157
21
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
114 x 114 x 80
Colour
Red
Mounting
Surface Only
Type of the frangible element
A
Weight (Kg)
0.262
Warranty (Years)
3
Operating Voltage (V DC)
15 - 32
Cable Size (mm²)
0.4 - 2.0
Consumption Without Communication (μA)
125 (@27V DC)
Consumption With Communication (μA)
160 (@27V DC)
Consumption in Fire Mode (mA)
3
Wiring Type
Analogue Addressable (MAGPRO)
Protocol Type
Custom (Closed)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Ingress Protection
IP67
Materials
ABS
Features
Resettable call point; Built in isolator; Optional protective plastic cover
Accessories
MAGPRO-CPC: Pack of 5 Call Point Covers; MAGPRO-PROG: Address Programming Tool For MAGPRO Devices
Standards
EN54-17, EN54-11
Dimensions
Dimensions (mm)
114 x 114 x 80
Specifications
| Dimensions (mm) | 114 x 114 x 80 |
|---|---|
| Colour | Red |
| Mounting | Surface Only |
| Type of the frangible element | A |
| Weight (Kg) | 0.262 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 32 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Consumption Without Communication (μA) | 125 (@27V DC) |
| Consumption With Communication (μA) | 160 (@27V DC) |
| Consumption in Fire Mode (mA) | 3 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Protocol Type | Custom (Closed) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Ingress Protection | IP67 |
| Materials | ABS |
| Features | Resettable call point; Built in isolator; Optional protective plastic cover |
| Accessories | MAGPRO-CPC: Pack of 5 Call Point Covers; MAGPRO-PROG: Address Programming Tool For MAGPRO Devices |
| Standards | EN54-17, EN54-11 |
Dimensions
| Dimensions (mm) | 114 x 114 x 80 |
|---|
IP67 Rated Manual Call Point features
MAGFIRE MAGPRO-CPIP67 Addressable IP67 Manual Call Point
