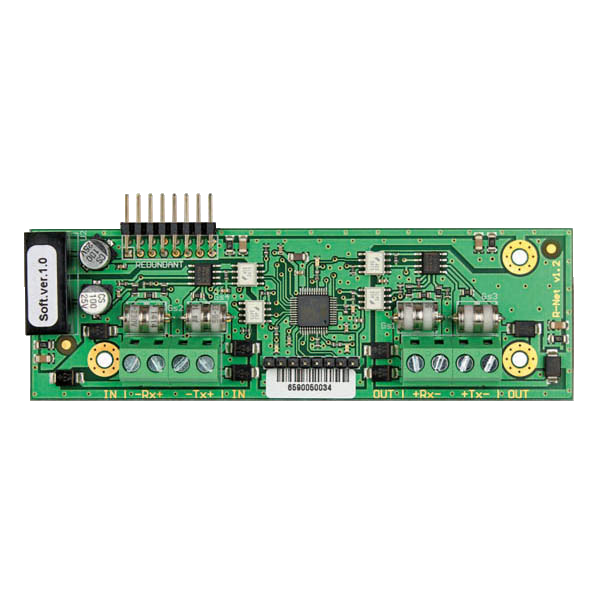

MAG MAGPRO-NIC Addressable Network Interface Card
£
111
56
(Incl. VAT)
3 Years Warranty
ADDRESSABLE NETWORK INTERFACE CARD
About this product
About this product
The MAGFIRE MAGPRO-NIC, from ESP's Fire Protection range, is an addressable network interface card that allows MAGPRO series CIE to be networked to other MAGPRO CIE or repeater panels, with up to 32 networked panels.
Key features
- Up to 32 networked panels
- RS-485 communication, 1000m transmission distance between modules
- Backup communication with a redundancy circuit
- Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
- Needs MAGPRO16 firmware REV 2.8 or higher, or MAGPRO96 firmware REV 4.2 or higher
- Power supply and programming from the panel
- On-board LEDs: flashing in normal mode, solid in fault mode
Frequently asked questions
How many panels can be networked with the MAGPRO-NIC?
Up to 32 networked panels.
Which panels is it compatible with?
MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G. It networks MAGPRO16/96 panels and MAGPRO-REP repeater panels.
What firmware do the panels need?
MAGPRO16 firmware REV 2.8 or higher, or MAGPRO96 firmware REV 4.2 or higher.
How far can it communicate?
Up to 1000m between modules, over RS-485.
How is it powered and programmed?
Its power supply and its programming both come from the panel.
-
Download
- MAGPRO-NIC Tech Sheet
£
111
56
FAST delivery by Order within
Price
Technical Details
Specifications
Maximum Number of Networked Panels
32
Modes
Normal; flashing LEDs. Fault; solid LEDs
Warranty (Years)
3
Cable Size (mm²)
0.5 - 2.5
Communication Type
RS-485
Maximum Communication Range (m)
1000m
Backup Communication
Yes; Redundancy Circuit
Compatible Products
Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G
Weight
0.07 kg
GTIN
5060224105467
Commodity Code
8531103000
Materials
PCB
Dimensions (mm)
115 x 35 x 15
Additional Information
Allows MAGPRO Series CIE to be networked to other MAGPRO CIE or Repeater Panels
Specifications
| Maximum Number of Networked Panels | 32 |
|---|---|
| Modes | Normal; flashing LEDs. Fault; solid LEDs |
| Warranty (Years) | 3 |
| Cable Size (mm²) | 0.5 - 2.5 |
| Communication Type | RS-485 |
| Maximum Communication Range (m) | 1000m |
| Backup Communication | Yes; Redundancy Circuit |
| Compatible Products | Compatible with MAGPRO16, MAGPRO16G, MAGPRO96 and MAGPRO96G |
| Weight | 0.07 kg |
| GTIN | 5060224105467 |
| Commodity Code | 8531103000 |
| Materials | PCB |
| Dimensions (mm) | 115 x 35 x 15 |
| Additional Information | Allows MAGPRO Series CIE to be networked to other MAGPRO CIE or Repeater Panels |
