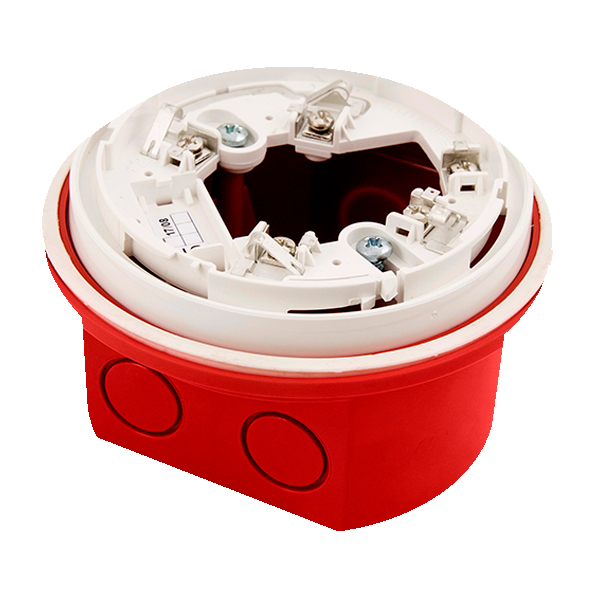

MAG MAGPRO-WSBIP65 Addressable Sounder Base IP65
£
33
78
(Incl. VAT)
3 Years Warranty
ADDRESSABLE SOUNDER BASE IP65
About this product
About this product
The MAG MAGPRO-WSBIP65, from ESP's Fire Protection range, is an addressable fire alarm sounder IP65 base in red, with a built-in MAGPRO-DB. It is an IP65 waterproof base suitable for wall mounting in aggressive outdoor environments.
Key features
- For MAGPRO addressable sounders: MAGPRO-WS, MAGPRO-WSS and MAGPRO-WSS23
- Built-in MAGPRO-DB
- IP65 waterproof base, suitable for wall mounting in aggressive outdoor environments
- Includes 2 x IP65 cable glands, O-ring & gasket
- Analogue addressable (MAGPRO) wiring; 15 - 30 V DC
- Takes cable of 0.4 - 2.0 mm²
- Red ABS housing, ø120 x 68 mm, 0.14 kg
Frequently asked questions
Which sounders does the MAGPRO-WSBIP65 suit?
The MAGPRO-WS, MAGPRO-WSS and MAGPRO-WSS23.
Can it be mounted outdoors?
Yes: it is suitable for wall mounting in aggressive outdoor environments.
What comes with it?
2 x IP65 cable glands, an O-ring and a gasket.
Does it need a separate MAGPRO-DB?
No, it has a built-in MAGPRO-DB.
What wiring does it use?
Analogue addressable (MAGPRO), at 15 - 30 V DC.
-
Download
- MAGPRO-WSBIP65 Tech Sheet
£
33
78
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø120 x 68
Colour
Red
Materials
Housing: ABS
Weight (Kg)
0.14
Warranty (Years)
3
Operating Voltage (V DC)
15 - 30
Cable Size (mm²)
0.4 - 2.0
Wiring Type
Analogue Addressable (MAGPRO)
Operating Temperature (°C)
-10 to +60
Relative Humidity Resistance (%)
93 (±3) (@40˚C)
Compatible Products
MAGPRO-WS: Addressable Wall Sounder; MAGPRO-WSS: Addressable Wall Sounder Strobe; MAGPRO-WSS23: Addressable Wall Sounder Strobe Certified to EN54-23
GTIN
5060224108420
Commodity Code
8531103000
Ingress Protection
IP65
Features
Built-in MAGPRO-DB; IP65 Waterproof Base Suitable for Wall Mounting in Aggressive Outdoor Environments; Includes 2x IP65 Cable Glands, O-ring & Gasket for Secure Installation
Dimensions
Dimensions (mm)
ø120 x 68
Specifications
| Dimensions (mm) | ø120 x 68 |
|---|---|
| Colour | Red |
| Materials | Housing: ABS |
| Weight (Kg) | 0.14 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 15 - 30 |
| Cable Size (mm²) | 0.4 - 2.0 |
| Wiring Type | Analogue Addressable (MAGPRO) |
| Operating Temperature (°C) | -10 to +60 |
| Relative Humidity Resistance (%) | 93 (±3) (@40˚C) |
| Compatible Products | MAGPRO-WS: Addressable Wall Sounder; MAGPRO-WSS: Addressable Wall Sounder Strobe; MAGPRO-WSS23: Addressable Wall Sounder Strobe Certified to EN54-23 |
| GTIN | 5060224108420 |
| Commodity Code | 8531103000 |
| Ingress Protection | IP65 |
| Features | Built-in MAGPRO-DB; IP65 Waterproof Base Suitable for Wall Mounting in Aggressive Outdoor Environments; Includes 2x IP65 Cable Glands, O-ring & Gasket for Secure Installation |
Dimensions
| Dimensions (mm) | ø120 x 68 |
|---|
ADDRESSABLE SOUNDER BASE IP65 features
MAG MAGPRO-WSBIP65 Addressable Sounder Base IP65
