MAGDUOCC4 Conventional 4 Zone Expansion Card
Free Delivery
£
190
58
(Incl. VAT)
3 Years Warranty
MAGDUO4 Zone Conventional Card
About this product
About this product

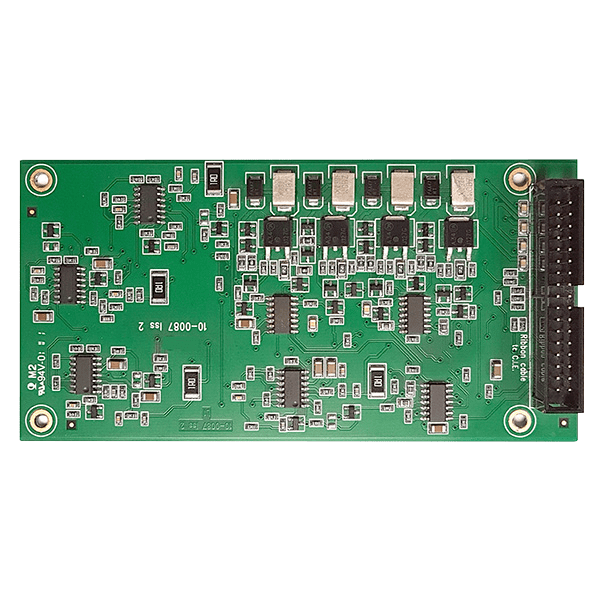

The MAGDUO MAGDUOCC4, from ESP's Fire Protection range, is a 4 zone conventional card. It installs into a MAGDUO4 or MAGDUO8 to create 4 extra conventional zones, with up to 32 devices per zone.
Key features
- 4 extra conventional zones for a MAGDUO4 or MAGDUO8
- Up to 32 devices per zone
- Maximum cable length per zone 500 m
- Maximum cable size 1.5 mm² (2 core screened fire rated cable)
- PCB card
Frequently asked questions
Which panels does the MAGDUOCC4 fit?
The MAGDUO4 and MAGDUO8.
How many zones does it add?
4 extra conventional zones.
How many devices can each zone take?
Up to 32 devices.
How long can each zone cable be?
Up to 500 m per zone.
-
Download
- MAGDUOCC4 Tech Sheet
£
190
58
FAST delivery by Order within
Price
Technical Details
Specifications
Maximum Detectors Per Zone
Up to 32 Devices
Maximum Cable Length Per Zone (m)
500
Warranty (Years)
3
Maximum Cable Size (mm²)
1.5 (2 Core Screened Fire Rated Cable)
Compatible Products
Compatible with MAGDUO4 & MAGDUO8
Materials
PCB
Features
Install into a MAGDUO4 or MAGDUO8 to Create 4 Extra Conventional Zones
Specifications
| Maximum Detectors Per Zone | Up to 32 Devices |
|---|---|
| Maximum Cable Length Per Zone (m) | 500 |
| Warranty (Years) | 3 |
| Maximum Cable Size (mm²) | 1.5 (2 Core Screened Fire Rated Cable) |
| Compatible Products | Compatible with MAGDUO4 & MAGDUO8 |
| Materials | PCB |
| Features | Install into a MAGDUO4 or MAGDUO8 to Create 4 Extra Conventional Zones |
MAGDUO4 Zone Conventional Card features
