MAGDUOSIP55 Strobe for MAGDUO
£
68
34
(Incl. VAT)
3 Years Warranty
Strobe for Magduo
About this product
About this product

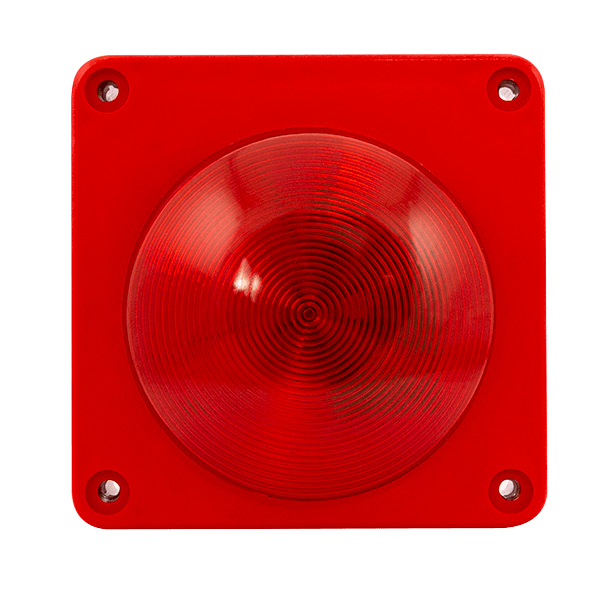

The MAGDUO MAGDUOSIP55, from ESP's Fire Protection range, is an IP55 LED strobe for the MAGDUO 2-wire conventional panels, with a built-in end of line function and device base included.
Key features
- LED strobe, IP55 ingress protection
- Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
- Built-in end of line function
- Device base included
- Flash period 1 sec, flash duration 15 ms
- 33 device loading units (DLU's)
- Operating temperature -10 to +50°C
Frequently asked questions
Which panels is the MAGDUOSIP55 for?
The MAGDUO2, MAGDUO4 and MAGDUO8.
Does it need a separate base?
No: the device base is included.
Does it need an end of line device?
It has a built-in end of line function.
How often does it flash?
The flash period is 1 sec, with a flash duration of 15 ms.
What size is it?
115 x 115 x 70 mm, in ABS UL94:V2.
-
Download
- MAGDUOSIP55 Tech Sheet
£
68
34
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
115 x 115 x 70
Flash period (sec)
1
Flash Duration (ms)
15
Device Loading Units (DLU's)
33
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Maximum Cable Size (mm²)
1.5
Current Consumption (Quiescent)(mA)
0.42
Maximum Current Consumption
5mA
Wiring Type
2-Wire Conventional
Operating Temperature (°C)
-10 to +50
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Operating Voltage (Battery Powered Panel)(V DC)
26
Ingress Protection
IP55
Materials
ABS UL94:V2
Features
LED strobe, Built-in end of line function, Device base included
Dimensions
Dimensions (mm)
115 x 115 x 70
Specifications
| Dimensions (mm) | 115 x 115 x 70 |
|---|---|
| Flash period (sec) | 1 |
| Flash Duration (ms) | 15 |
| Device Loading Units (DLU's) | 33 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| Current Consumption (Quiescent)(mA) | 0.42 |
| Maximum Current Consumption | 5mA |
| Wiring Type | 2-Wire Conventional |
| Operating Temperature (°C) | -10 to +50 |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Operating Voltage (Battery Powered Panel)(V DC) | 26 |
| Ingress Protection | IP55 |
| Materials | ABS UL94:V2 |
| Features | LED strobe, Built-in end of line function, Device base included |
Dimensions
| Dimensions (mm) | 115 x 115 x 70 |
|---|
Strobe for Magduo features
