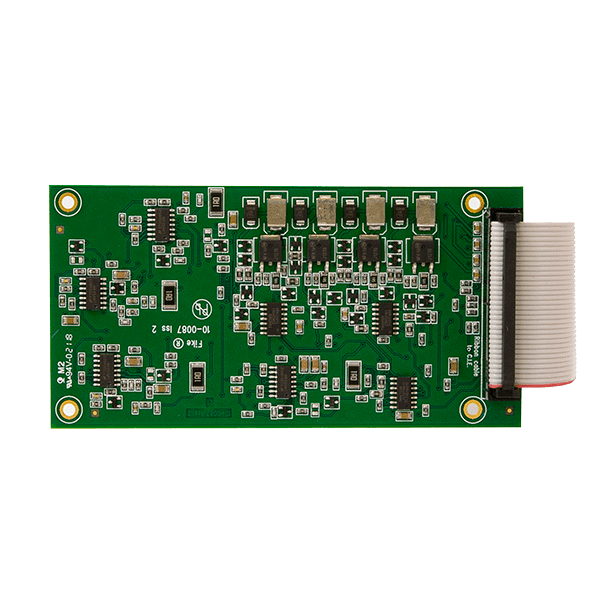

MAGDUOZC4 4 Zone Expansion Card for MAGDUO4 & MAGDUO8
Free Delivery
£
190
58
(Incl. VAT)
3 Years Warranty
MAGDUO4 Zone Expansion Card
About this product
About this product
The MAGDUO MAGDUOZC4, from ESP's Fire Protection range, is a 4 zone expansion card: installed into a MAGDUO4 or MAGDUO8 it creates 4 extra zones, expanding a 4 zone MAGDUO4 to an 8 zone panel.
Key features
- Install into a MAGDUO4 or MAGDUO8 to create 4 extra zones
- Expands a 4 zone MAGDUO4 to an 8 zone panel
- Up to 32 devices per zone, depending on device loading units (160 per zone)
- Maximum cable length per zone: 500 m
- Maximum cable size 1.5 mm² (2 core screened fire rated cable)
- 2-wire conventional; PCB, 65 x 135 x 25 mm
Frequently asked questions
What does the MAGDUOZC4 do?
Installed into a MAGDUO4 or MAGDUO8, it creates 4 extra zones; it expands a 4 zone MAGDUO4 to an 8 zone panel.
Which panels is it compatible with?
MAGDUO2, MAGDUO4 and MAGDUO8.
How many devices can each zone take?
Up to 32 devices, dependent on device loading units (160 per zone).
What cable does it take?
Up to 1.5 mm², 2 core screened fire rated cable, with up to 500 m per zone.
-
Download
- MAGDUOZC4 Tech Sheet
£
190
58
FAST delivery by Order within
Price
Technical Details
Specifications
Maximum Detectors Per Zone
Up to 32 Devices (Dependant on Device Loading Units , 160 per Zone)
Maximum Cable Length Per Zone (m)
500
Warranty (Years)
3
Maximum Cable Size (mm²)
1.5 (2 Core Screened Fire Rated Cable)
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Zones
4; Up to 32 Devices (Dependant on Device Loading Units , 160 per Zone)
Materials
PCB
Wiring Type
2-Wire Conventional
Dimensions (mm)
65 x 135 x 25
Features
Install into a MAGDUO4 or MAGDUO8 to Create 4 Extra Zones
Specifications
| Maximum Detectors Per Zone | Up to 32 Devices (Dependant on Device Loading Units , 160 per Zone) |
|---|---|
| Maximum Cable Length Per Zone (m) | 500 |
| Warranty (Years) | 3 |
| Maximum Cable Size (mm²) | 1.5 (2 Core Screened Fire Rated Cable) |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Zones | 4; Up to 32 Devices (Dependant on Device Loading Units , 160 per Zone) |
| Materials | PCB |
| Wiring Type | 2-Wire Conventional |
| Dimensions (mm) | 65 x 135 x 25 |
| Features | Install into a MAGDUO4 or MAGDUO8 to Create 4 Extra Zones |
MAGDUO4 Zone Expansion Card features
