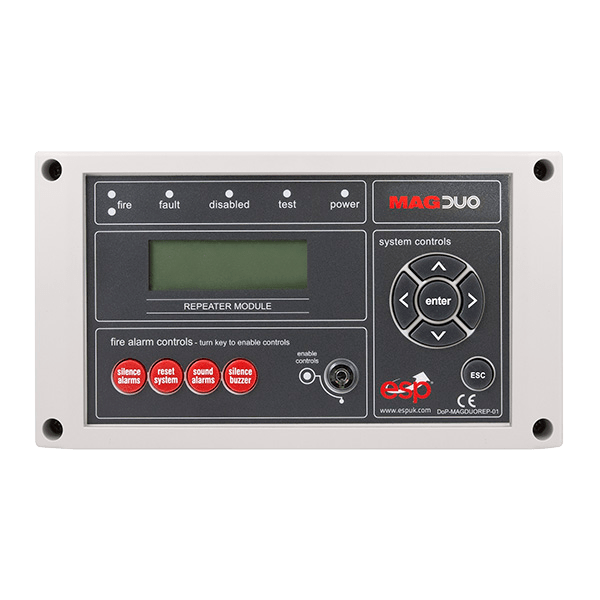

MAGDUOREP Conventional Repeater Panel for MAGDUO
Free Delivery
£
254
32
(Incl. VAT)
3 Years Warranty
Conventional Repeater Panel for Magduo
About this product
About this product
The MAGDUOREP is a conventional repeater panel for MAGDUO 4 and 8 zone fire alarm control panels, reporting panel events to a remote location. Up to 8 repeater panels can be connected to a single control panel.
Key features
- For MAGDUO 4 and 8 zone control panels only
- Reports MAGDUO panel events to a remote location
- System controls: silence alarms, reset, sound alarms and silence buzzer
- Up to 8 repeater panels on a single control panel
- RS-485 communication; maximum cable size 1.5 mm² (2 core screened fire rated cable)
- 24V DC nominal; 16mA quiescent, 50mA maximum current consumption
- Requires an EN54-4 compliant PSU
- UL94-V0 rated ABS housing for surface mounting, 250 x 140 x 85 mm
Frequently asked questions
Which panels does the MAGDUOREP work with?
MAGDUO 4 and 8 zone panels only.
How many repeaters can one MAGDUO panel take?
Up to 8 repeater panels can be connected to a single control panel.
What can be controlled from the MAGDUOREP?
Silence alarms, reset, sound alarms and silence buzzer.
What cable does the MAGDUOREP use?
It communicates over RS-485; the maximum cable size is 1.5 mm² (2 core screened fire rated cable).
How is the MAGDUOREP powered?
It runs at 24V DC nominal and requires an EN54-4 compliant PSU.
-
Download
- MAGDUOREP Tech Sheet
£
254
32
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
250 x 140 x 85
Materials
Housing: UL94-V0 rated ABS
Maximum Number Per Panel
8
Compatible Panels
MAGDUO 4 & 8 Zone panels only
Weight (Kg)
0.65
Warranty (Years)
3
Nominal Operating Voltage (V DC)
24
Maximum Cable Size (mm²)
1.5 (2 Core Screened Fire Rated Cable)
Current Consumption (Quiescent)(mA)
16 (24V DC)
Maximum Current Consumption
50mA (24V DC)
Communication Type
RS-485
Operating Temperature (°C)
+5 to +50
Additional Information
Comes with 6 x 20mm Knockouts, 40 x Double 20mm Knockouts
Ingress Protection
IP20
Mounting
Surface
Power Supply
Requires EN54-4 Compliant PSU
Dimensions
Dimensions (mm)
250 x 140 x 85
Specifications
| Dimensions (mm) | 250 x 140 x 85 |
|---|---|
| Materials | Housing: UL94-V0 rated ABS |
| Maximum Number Per Panel | 8 |
| Compatible Panels | MAGDUO 4 & 8 Zone panels only |
| Weight (Kg) | 0.65 |
| Warranty (Years) | 3 |
| Nominal Operating Voltage (V DC) | 24 |
| Maximum Cable Size (mm²) | 1.5 (2 Core Screened Fire Rated Cable) |
| Current Consumption (Quiescent)(mA) | 16 (24V DC) |
| Maximum Current Consumption | 50mA (24V DC) |
| Communication Type | RS-485 |
| Operating Temperature (°C) | +5 to +50 |
| Additional Information | Comes with 6 x 20mm Knockouts, 40 x Double 20mm Knockouts |
| Ingress Protection | IP20 |
| Mounting | Surface |
| Power Supply | Requires EN54-4 Compliant PSU |
Dimensions
| Dimensions (mm) | 250 x 140 x 85 |
|---|
