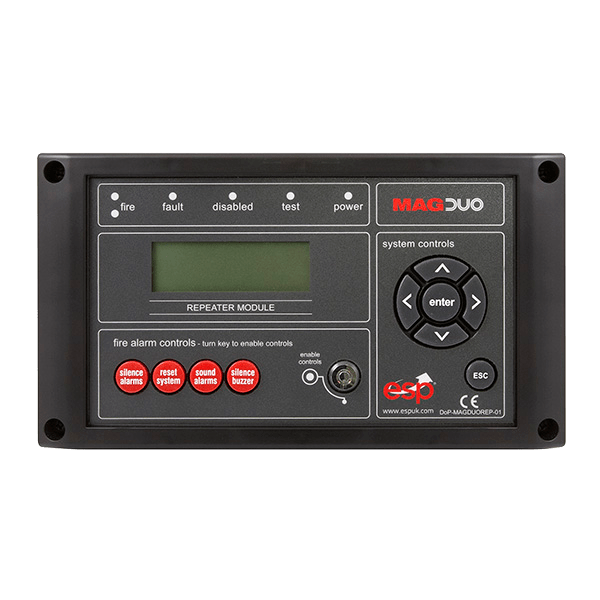

MAGDUOREPB Conventional Repeater Panel for MAGDUO, Black
Free Delivery
£
220
39
(Incl. VAT)
3 Years Warranty
Conventional Repeater Panel for Magduo in Black
About this product
About this product
The MAGDUO MAGDUOREPB, from ESP's Fire Protection range, is a conventional repeater panel in black for MAGDUO 4 or 8 zone control panels only. It reports MAGDUO panel events to a remote location and can perform system controls.
Key features
- For MAGDUO 4 or 8 zone control panels only
- Reports MAGDUO panel events to a remote location
- System controls: silence alarms, reset, sound alarms and silence buzzer
- A maximum of 8 repeater panels on a single control panel
- RS-485 communication
- 24 V DC nominal; 16 mA quiescent, 50mA maximum (24V DC)
- Requires an EN54-4 compliant PSU
Frequently asked questions
Which panels does the MAGDUOREPB work with?
MAGDUO 4 or 8 zone control panels only.
How many repeaters can one control panel take?
A maximum of 8 repeater panels can be connected to a single control panel.
What system controls does it have?
Silence alarms, reset, sound alarms and silence buzzer.
How is it powered?
At a nominal 24 V DC; it requires an EN54-4 compliant PSU.
What cable does it take?
Up to 1.5 mm², 2 core screened fire rated cable.
-
Download
- MAGDUOREPB Tech Sheet
£
220
39
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
250 x 140 x 85
Materials
Housing: UL94-V0 rated ABS
Maximum Number Per Panel
8
Compatible Panels
MAGDUO 4 & 8 Zone panels only
Weight (Kg)
0.65
Warranty (Years)
3
Nominal Operating Voltage (V DC)
24
Maximum Cable Size (mm²)
1.5 (2 Core Screened Fire Rated Cable)
Current Consumption (Quiescent)(mA)
16 (24V DC)
Maximum Current Consumption
50mA (24V DC)
Communication Type
RS-485
Operating Temperature (°C)
+5 to +50
Additional Information
Comes with 6 x 20mm Knockouts, 40 x Double 20mm Knockouts
Ingress Protection
IP20
Mounting
Surface
Power Supply Requirement
Requires EN54-4 Compliant PSU
Dimensions
Dimensions (mm)
250 x 140 x 85
Specifications
| Dimensions (mm) | 250 x 140 x 85 |
|---|---|
| Materials | Housing: UL94-V0 rated ABS |
| Maximum Number Per Panel | 8 |
| Compatible Panels | MAGDUO 4 & 8 Zone panels only |
| Weight (Kg) | 0.65 |
| Warranty (Years) | 3 |
| Nominal Operating Voltage (V DC) | 24 |
| Maximum Cable Size (mm²) | 1.5 (2 Core Screened Fire Rated Cable) |
| Current Consumption (Quiescent)(mA) | 16 (24V DC) |
| Maximum Current Consumption | 50mA (24V DC) |
| Communication Type | RS-485 |
| Operating Temperature (°C) | +5 to +50 |
| Additional Information | Comes with 6 x 20mm Knockouts, 40 x Double 20mm Knockouts |
| Ingress Protection | IP20 |
| Mounting | Surface |
| Power Supply Requirement | Requires EN54-4 Compliant PSU |
Dimensions
| Dimensions (mm) | 250 x 140 x 85 |
|---|
Conventional Repeater Panel for Magduo in Black features
