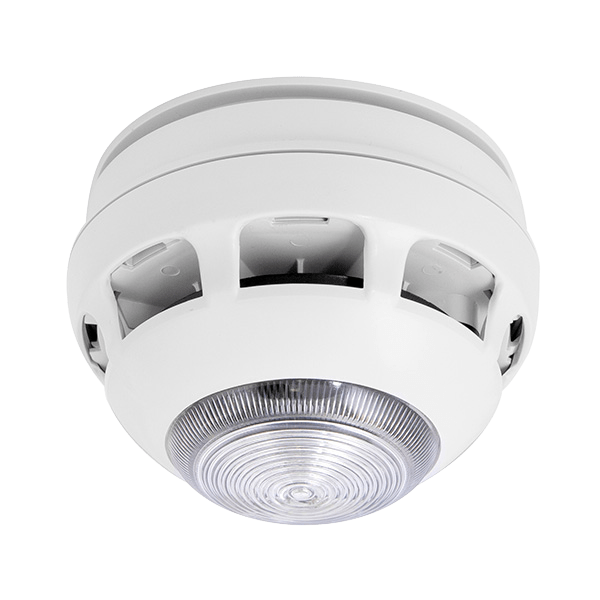

MAGDUOSHDSS Flexipoint Detector with Sounder & Strobe for Fire Detection
£
76
60
(Incl. VAT)
3 Years Warranty
Flexipoint Detector with Sounder & Strobe for Fire Detection
About this product
About this product
With 3 sounder modes and an LED strobe, the MAGDUO MAGDUOSHDSS from ESP's Fire Protection range is a 2-wire conventional FlexiPoint smoke and heat detector, compatible with MAGDUO2, MAGDUO4 and MAGDUO8. It has 7 modes of fire detection.
Key features
- Smoke and heat detector with sounder and strobe
- 7 modes of fire detection; 3 sounder modes and LED strobe
- Built-in end of line function
- Self-calibration every 6 hours and continuous dust contamination monitoring
- Device wiring base included
- Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 (2-wire conventional)
- Sound output at 1m: 70+ dB low, 90+ dB high
- EN54-3, EN54-5 and EN54-7
Frequently asked questions
Which products is the MAGDUOSHDSS compatible with?
MAGDUO2, MAGDUO4 and MAGDUO8 (2-wire conventional).
Does it have a strobe?
Yes. It has an LED strobe as well as 3 sounder modes.
Is a base included?
Yes. A device wiring base is included.
How loud is the sounder?
70+ dB on low and 90+ dB on high, at 1m.
Which EN54 parts is it marked to?
EN54-3, EN54-5 and EN54-7.
-
Download
- MAGDUOSHDSS Tech Sheet
£
76
60
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø107 x 75
Device Loading Units (DLU's) - High
16
Maximum Device Loading Units (DLU's)
8
Warranty (Years)
3
Operating Voltage (V DC)
18 - 32
Maximum Cable Size (mm²)
1.5
Current Consumption (Quiescent)(mA)
0.1
Current Consumption in alarm state (mA)
High 10.5, Low 4.9, Off 2.6
Maximum Current Consumption
28.5mA
Wiring Type
2-Wire Conventional
Sound Output @ 1m (Low) (db)
70+
Sound Output @ 1m (High) (db)
90+
Ingress Protection
IP21C
Operating Temperature (°C)
-10 to +50
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Alarm Current @ 24V (mA)
15.5
Materials
ABS UL94:V2
Standards
EN54-7, EN54-5, EN54-3
Device Wiring Base
Included
Dimensions
Dimensions (mm)
ø107 x 75
Specifications
| Dimensions (mm) | ø107 x 75 |
|---|---|
| Device Loading Units (DLU's) - High | 16 |
| Maximum Device Loading Units (DLU's) | 8 |
| Warranty (Years) | 3 |
| Operating Voltage (V DC) | 18 - 32 |
| Maximum Cable Size (mm²) | 1.5 |
| Current Consumption (Quiescent)(mA) | 0.1 |
| Current Consumption in alarm state (mA) | High 10.5, Low 4.9, Off 2.6 |
| Maximum Current Consumption | 28.5mA |
| Wiring Type | 2-Wire Conventional |
| Sound Output @ 1m (Low) (db) | 70+ |
| Sound Output @ 1m (High) (db) | 90+ |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | -10 to +50 |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Alarm Current @ 24V (mA) | 15.5 |
| Materials | ABS UL94:V2 |
| Standards | EN54-7, EN54-5, EN54-3 |
| Device Wiring Base | Included |
Dimensions
| Dimensions (mm) | ø107 x 75 |
|---|
