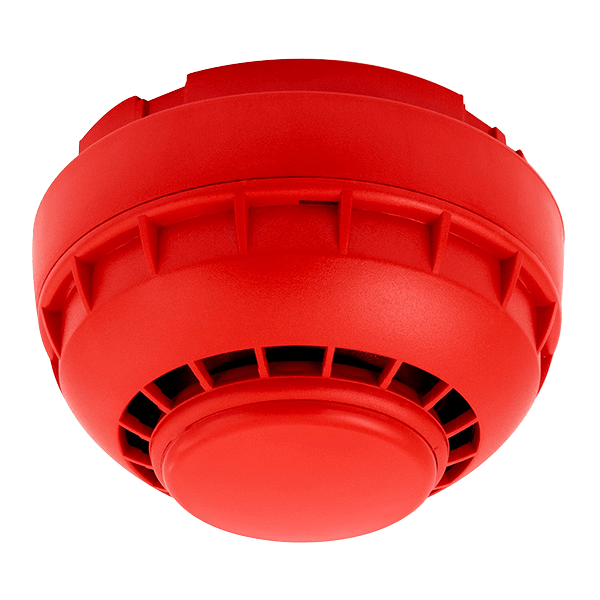

MAGDUOSR Ceiling Sounder for MAGDUO - Red
£
29
34
(Incl. VAT)
3 Years Warranty
Ceiling Sounder for Magduo - Red
About this product
About this product
The MAGDUO MAGDUOSR, from ESP's Fire Protection range, is a red ceiling sounder for MAGDUO 2-wire conventional systems. It gives a sound output of 90+ dB at 1m, has volume level adjustment and a built-in end of line function, and its device wiring base is included.
Key features
- Ceiling mount sounder
- Sound output @ 1m 90+ dB
- Volume level adjustment
- Built-in end of line function
- Device wiring base included
- Compatible with MAGDUO2, MAGDUO4 and MAGDUO8; 2-wire conventional
- EN54-3
Frequently asked questions
Which panels is the MAGDUOSR for?
The MAGDUO2, MAGDUO4 and MAGDUO8.
How loud is it?
90+ dB at 1m.
Can the volume be adjusted?
Yes, it has volume level adjustment.
Is a base included?
Yes, the device wiring base is included.
What voltage does it need?
25.5 - 35 V DC from a mains powered panel, or 20 - 26 V DC from a battery powered panel.
-
Download
- MAGDUOSR Tech Sheet
£
29
34
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø105 x 72
Maximum Device Loading Units (DLU's)
36
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Maximum Cable Size (mm²)
1.5
Current Consumption (Quiescent)(mA)
0.92
Current Consumption in alarm state (mA)
10
Maximum Current Consumption
10mA
Wiring Type
2-Wire Conventional
Sound Output @ 1m (db)
90+
Ingress Protection
IP21C
Operating Temperature (°C)
-10 to +50
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Operating Voltage (Battery Powered Panel)(V DC)
20 - 26
Materials
ABS UL94:V2
Standards
EN54-3
Dimensions
Dimensions (mm)
ø105 x 72
Specifications
| Dimensions (mm) | ø105 x 72 |
|---|---|
| Maximum Device Loading Units (DLU's) | 36 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| Current Consumption (Quiescent)(mA) | 0.92 |
| Current Consumption in alarm state (mA) | 10 |
| Maximum Current Consumption | 10mA |
| Wiring Type | 2-Wire Conventional |
| Sound Output @ 1m (db) | 90+ |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | -10 to +50 |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Operating Voltage (Battery Powered Panel)(V DC) | 20 - 26 |
| Materials | ABS UL94:V2 |
| Standards | EN54-3 |
Dimensions
| Dimensions (mm) | ø105 x 72 |
|---|
