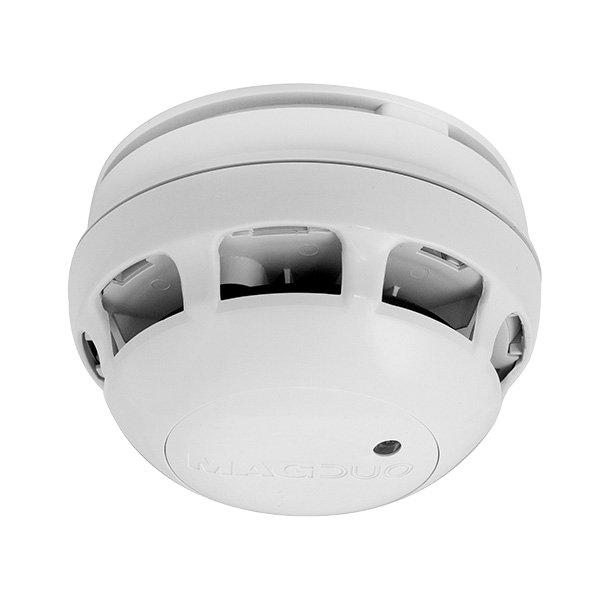

MAGDUOSHD Flexipoint Detector for Fire Detection
£
40
80
(Incl. VAT)
3 Years Warranty
Flexipoint Detector for Fire Detection
About this product
About this product
The MAGDUO MAGDUOSHD, from ESP's Fire Protection range, is a FlexiPoint smoke and heat detector for MAGDUO 2-wire conventional systems. It offers 7 modes of fire detection, a built-in end of line function, self-calibration every 6 hours and continuous dust contamination monitoring, and its device wiring base is included.
Key features
- FlexiPoint smoke and heat detector
- 7 modes of fire detection
- Built-in end of line function
- Self-calibration every 6 hours; continuous dust contamination monitoring
- Device wiring base included
- Compatible with MAGDUO2, MAGDUO4 and MAGDUO8; 2-wire conventional
- EN54-7 and EN54-5
Frequently asked questions
Which panels is the MAGDUOSHD for?
The MAGDUO2, MAGDUO4 and MAGDUO8.
How many detection modes does it have?
7 modes of fire detection.
Is a base included?
Yes, the device wiring base is included.
How many device loading units does it use?
23 DLU's.
How often does it self-calibrate?
Every 6 hours.
-
Download
- MAGDUOSHD Tech Sheet
£
40
80
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
ø107 x 75
Device Loading Units (DLU's)
23
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Maximum Cable Size (mm²)
1.5
Current Consumption (Quiescent)(mA)
0.1
Current Consumption in alarm state (mA)
15.5
Maximum Current Consumption
15.50mA
Wiring Type
2-Wire Conventional
Ingress Protection
IP21C
Operating Temperature (°C)
-10 to +50
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Materials
ABS UL94:V2
Standards
EN54-7, EN54-5
Dimensions
Dimensions (mm)
ø107 x 75
Specifications
| Dimensions (mm) | ø107 x 75 |
|---|---|
| Device Loading Units (DLU's) | 23 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| Current Consumption (Quiescent)(mA) | 0.1 |
| Current Consumption in alarm state (mA) | 15.5 |
| Maximum Current Consumption | 15.50mA |
| Wiring Type | 2-Wire Conventional |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | -10 to +50 |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Materials | ABS UL94:V2 |
| Standards | EN54-7, EN54-5 |
Dimensions
| Dimensions (mm) | ø107 x 75 |
|---|
