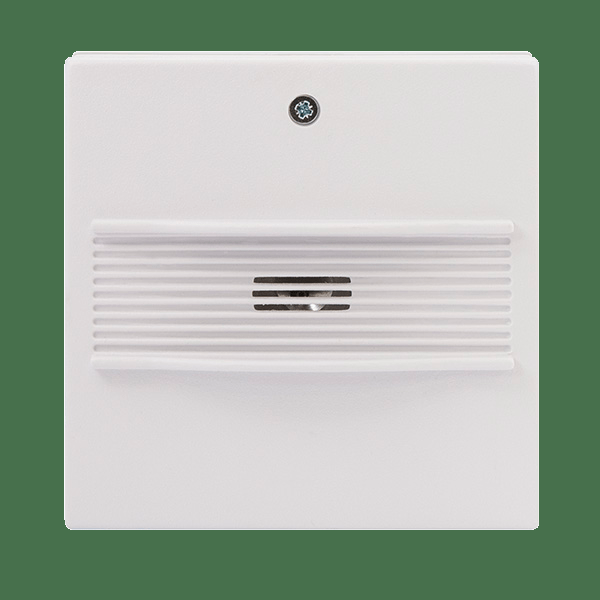

MAGDUOSWSQ 2 Wire Sounder Square White
£
28
99
(Incl. VAT)
3 Years Warranty
2 Wire Sounder Square White
About this product
About this product
ESP's MAGDUOSWSQ is the white wall sounder for MAGDUO in the Fire Protection range: a 2-wire conventional unit compatible with the MAGDUO2, MAGDUO4 and MAGDUO8, with 2 volume modes (low and high) and a built-in end of line function.
Key features
- Sound output 65+ dB (low) and 85+ dB (high), both @ 1m
- Wall mount white sounder
- Volume level adjustment; 2 volume modes (low & high)
- Built-in end of line function; device base included
- 2-wire conventional; compatible with MAGDUO2, MAGDUO4 and MAGDUO8
- Operating voltage 25.5 - 35 V DC (mains powered panel) or 23 - 26 V DC (battery powered panel)
- Current consumption 0.185 mA quiescent; 14.5 mA high and 12.6 mA low in alarm
- Rated IP21C
Frequently asked questions
How loud is it?
65+ dB on low and 85+ dB on high, both at 1m, with volume level adjustment.
Which panels is the MAGDUOSWSQ compatible with?
The MAGDUO2, MAGDUO4 and MAGDUO8.
What voltage does it need?
25.5 - 35 V DC on a mains powered panel, or 23 - 26 V DC on a battery powered panel.
Is a base included?
Yes. Its device base is included.
What are its dimensions?
89 x 89 x 62 mm (surface) and 89 x 89 x 34 mm (flush).
-
Download
- MAGDUOSWSQ Tech Sheet
£
28
99
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
89 x 89 x 62 (Surface), 89 x 89 x 34 (Flush)
Volume Modes
2 (Low & High)
Device Loading Units (DLU's) - Low
13
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Maximum Cable Size (mm²)
1.5
Current Consumption (Quiescent)(mA)
0.185
Maximum Current Consumption
14.5mA
Wiring Type
2-Wire Conventional
Sound Output @ 1m (Low) (db)
65+
Sound Output @ 1m (High) (db)
85+
Ingress Protection
IP21C
Operating Temperature (°C)
-10 to +50
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Weight
0.3 kg
GTIN
5060654460082
Commodity Code
8531103000
Operating Voltage (Battery Powered Panel)(V DC)
23 - 26
Current Consumption in alarm state (mA)
High 14.5, Low 12.6
Colour
White
Materials
ABS UL94:V2
Standards
EN54-3
Features
Volume level adjustment; Built-in end of line function; Device base included
Dimensions
Dimensions (mm)
89 x 89 x 62 (Surface), 89 x 89 x 34 (Flush)
Specifications
| Dimensions (mm) | 89 x 89 x 62 (Surface), 89 x 89 x 34 (Flush) |
|---|---|
| Volume Modes | 2 (Low & High) |
| Device Loading Units (DLU's) - Low | 13 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| Current Consumption (Quiescent)(mA) | 0.185 |
| Maximum Current Consumption | 14.5mA |
| Wiring Type | 2-Wire Conventional |
| Sound Output @ 1m (Low) (db) | 65+ |
| Sound Output @ 1m (High) (db) | 85+ |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | -10 to +50 |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Weight | 0.3 kg |
| GTIN | 5060654460082 |
| Commodity Code | 8531103000 |
| Operating Voltage (Battery Powered Panel)(V DC) | 23 - 26 |
| Current Consumption in alarm state (mA) | High 14.5, Low 12.6 |
| Colour | White |
| Materials | ABS UL94:V2 |
| Standards | EN54-3 |
| Features | Volume level adjustment; Built-in end of line function; Device base included |
Dimensions
| Dimensions (mm) | 89 x 89 x 62 (Surface), 89 x 89 x 34 (Flush) |
|---|
