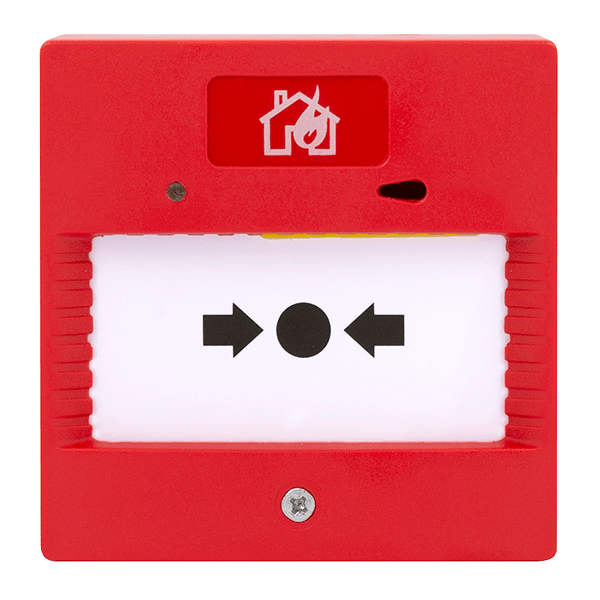

MAGDUOCP Call Point for MAGDUO
£
24
85
(Incl. VAT)
3 Years Warranty
Call Point for Magduo
About this product
About this product
The MAGDUOCP, from ESP's Fire Protection range, is the call point for MAGDUO: a resettable manual call point with a built-in end of line function and a red LED, on 2-wire conventional wiring. The device base is included.
Key features
- Resettable manual call point
- Built-in end of line function
- Device base included
- 2-wire conventional; 16 device loading units (DLU's)
- Red LED operation colour; maximum current consumption 16.5mA
- Type A frangible element
- Marked EN54-11
- IP21C; operating temperature -10 to +50 °C
Frequently asked questions
Is the MAGDUOCP resettable?
Yes, it is a resettable manual call point.
Does it need a separate end of line device?
It has a built-in end of line function.
Is the base included?
Yes, the device base is included.
How many device loading units does it use?
16 DLU's.
What cover and keys go with it?
The MAGDUOCPC single protective cover and the MAGDUOCPK pack of 5 keys.
-
Download
- MAGDUOCP Tech Sheet
£
24
85
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
87 x 87 x 53 (Surface), 87 x 87 x 25 (Flush)
Device Loading Units (DLU's)
16
Type of the frangible element
A
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Maximum Cable Size (mm²)
1.5
LED Operation Colour
Red
Maximum Current Consumption
16.5mA
Wiring Type
2-Wire Conventional
Ingress Protection
IP21C
Operating Temperature (°C)
-10 to +50
Materials
ABS UL94:V2
Accessories
MAGDUOCPC: Single Protective Cover for MAGDUOCP; MAGDUOCPK: Pack of 5 keys for MAGDUOCP’s
Dimensions
Dimensions (mm)
87 x 87 x 53 (Surface), 87 x 87 x 25 (Flush)
Specifications
| Dimensions (mm) | 87 x 87 x 53 (Surface), 87 x 87 x 25 (Flush) |
|---|---|
| Device Loading Units (DLU's) | 16 |
| Type of the frangible element | A |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| LED Operation Colour | Red |
| Maximum Current Consumption | 16.5mA |
| Wiring Type | 2-Wire Conventional |
| Ingress Protection | IP21C |
| Operating Temperature (°C) | -10 to +50 |
| Materials | ABS UL94:V2 |
| Accessories | MAGDUOCPC: Single Protective Cover for MAGDUOCP; MAGDUOCPK: Pack of 5 keys for MAGDUOCP’s |
Dimensions
| Dimensions (mm) | 87 x 87 x 53 (Surface), 87 x 87 x 25 (Flush) |
|---|
