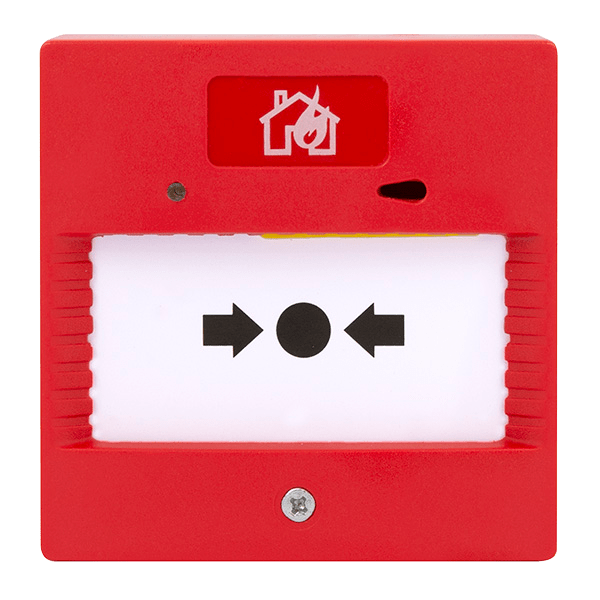

MAGDUO MAGDUOCPIP65 Call Point for Magduo, IP65
About this product
The MAGDUO MAGDUOCPIP65 is a Call Point for Magduo, IP65. Featuring an IP65 rating, it is built for dependable professional installation.
Key Features
- IP65 ingress protection
- Resettable manual call point
- Built-in end of line function
- Device base included
- An IP65 rating
In Detail
Specified across commercial, industrial and multi-occupancy premises, ESP's manual call point products are engineered for reliable life-safety performance and straightforward installation by qualified engineers. Robust construction and clear indication help ensure the system performs when it matters.
A dependable fire alarm system relies on quality components working together, and this unit integrates cleanly with ESP panels, detectors and sounders — a well-supported platform to design around and maintain.
The MAGDUO MAGDUOCPIP65 is a practical choice wherever a reliable manual call point is required, supplied with full WME trade support and free UK delivery on orders over £129.
Technical Specifications
| Brand | MAGDUO |
| Product code | MAGDUOCPIP65 |
| Dimensions (mm) | 87 x 87 x 53 (Surface) |
| Device Loading Units (DLU's) | 16 |
| Type of the frangible element | A |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| LED Operation Colour | Red |
| Maximum Current Consumption | 16.5mA |
| Wiring Type | 2-Wire Conventional |
| Operating Temperature (°C) | -10 to +50 |
| Weight | 0.3 kg |
| GTIN | 5060654460037 |
| Commodity Code | 8531103000 |
