MAGDUOSRIP55 2 Wire IP55 Sounder
£
56
58
(Incl. VAT)
3 Years Warranty

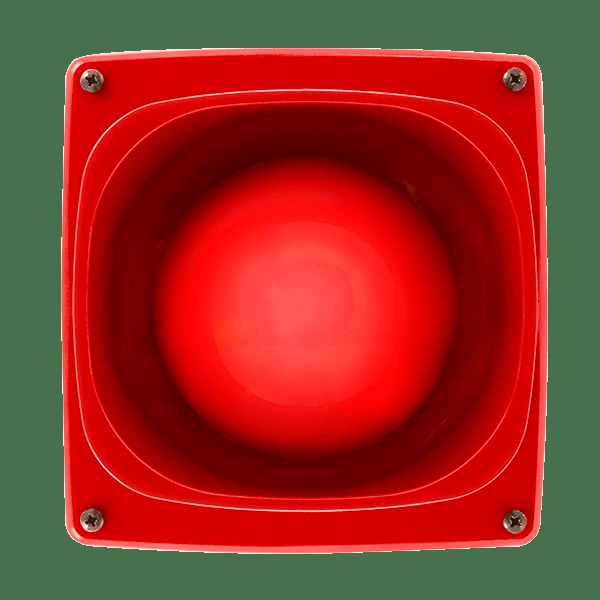

2 Wire IP55 Sounder Red
About this product
About this product
The MAGDUOSRIP55, from ESP's Fire Protection range, is an IP55 sounder for MAGDUO 2-wire conventional systems, compatible with the MAGDUO2, MAGDUO4 and MAGDUO8. It has 2 volume modes (low & high), a built-in end of line function, and its device base is included.
Key features
- IP55 ingress protection
- 2 volume modes (low & high); volume level adjustment
- Sound output @ 1m: 65+ dB (low), 90+ dB (high)
- Built-in end of line function; device base included
- 2-wire conventional; compatible with MAGDUO2, MAGDUO4 and MAGDUO8
- 25.5 - 35 V DC (mains powered panel); maximum current consumption 14.5mA
- ABS UL94:V2; 115 x 115 x 70 mm
Frequently asked questions
Which panels is the MAGDUOSRIP55 for?
It is compatible with the MAGDUO2, MAGDUO4 and MAGDUO8, on 2-wire conventional wiring.
How loud is it?
65+ dB on low and 90+ dB on high, both at 1m.
What is its IP rating?
IP55.
Is the base included?
Yes: the device base is included.
Does it have an end of line function?
Yes: a built-in end of line function.
-
Download
- MAGDUOSRIP55 Tech Sheet
£
56
58
FAST delivery by Order within
Price
Technical Details
Specifications
Dimensions (mm)
115 x 115 x 70
Volume Modes
2 (Low & High)
Device Loading Units (DLU's) - Low
12.6
Warranty (Years)
3
Operating Voltage (Mains Powered Panel)(V DC)
25.5 - 35
Maximum Cable Size (mm²)
1.5
Current Consumption (Quiescent)(mA)
0.185
Maximum Current Consumption
14.5mA
Wiring Type
2-Wire Conventional
Sound Output @ 1m (Low) (db)
65+
Sound Output @ 1m (High) (db)
90+
Operating Temperature (°C)
-10 to +50
Compatible Products
Compatible with MAGDUO2, MAGDUO4 and MAGDUO8
Weight
0.5 kg
GTIN
5060654460099
Commodity Code
8531103000
Ingress Protection
IP55
Materials
ABS UL94:V2
Standards
EN54-3
Features
Volume level adjustment; Built-in end of line function; Device base included
Dimensions
Dimensions (mm)
115 x 115 x 70
Specifications
| Dimensions (mm) | 115 x 115 x 70 |
|---|---|
| Volume Modes | 2 (Low & High) |
| Device Loading Units (DLU's) - Low | 12.6 |
| Warranty (Years) | 3 |
| Operating Voltage (Mains Powered Panel)(V DC) | 25.5 - 35 |
| Maximum Cable Size (mm²) | 1.5 |
| Current Consumption (Quiescent)(mA) | 0.185 |
| Maximum Current Consumption | 14.5mA |
| Wiring Type | 2-Wire Conventional |
| Sound Output @ 1m (Low) (db) | 65+ |
| Sound Output @ 1m (High) (db) | 90+ |
| Operating Temperature (°C) | -10 to +50 |
| Compatible Products | Compatible with MAGDUO2, MAGDUO4 and MAGDUO8 |
| Weight | 0.5 kg |
| GTIN | 5060654460099 |
| Commodity Code | 8531103000 |
| Ingress Protection | IP55 |
| Materials | ABS UL94:V2 |
| Standards | EN54-3 |
| Features | Volume level adjustment; Built-in end of line function; Device base included |
Dimensions
| Dimensions (mm) | 115 x 115 x 70 |
|---|
2 Wire IP55 Sounder Red features
