Introduction to the MAXHUB ND55CMA and its key features

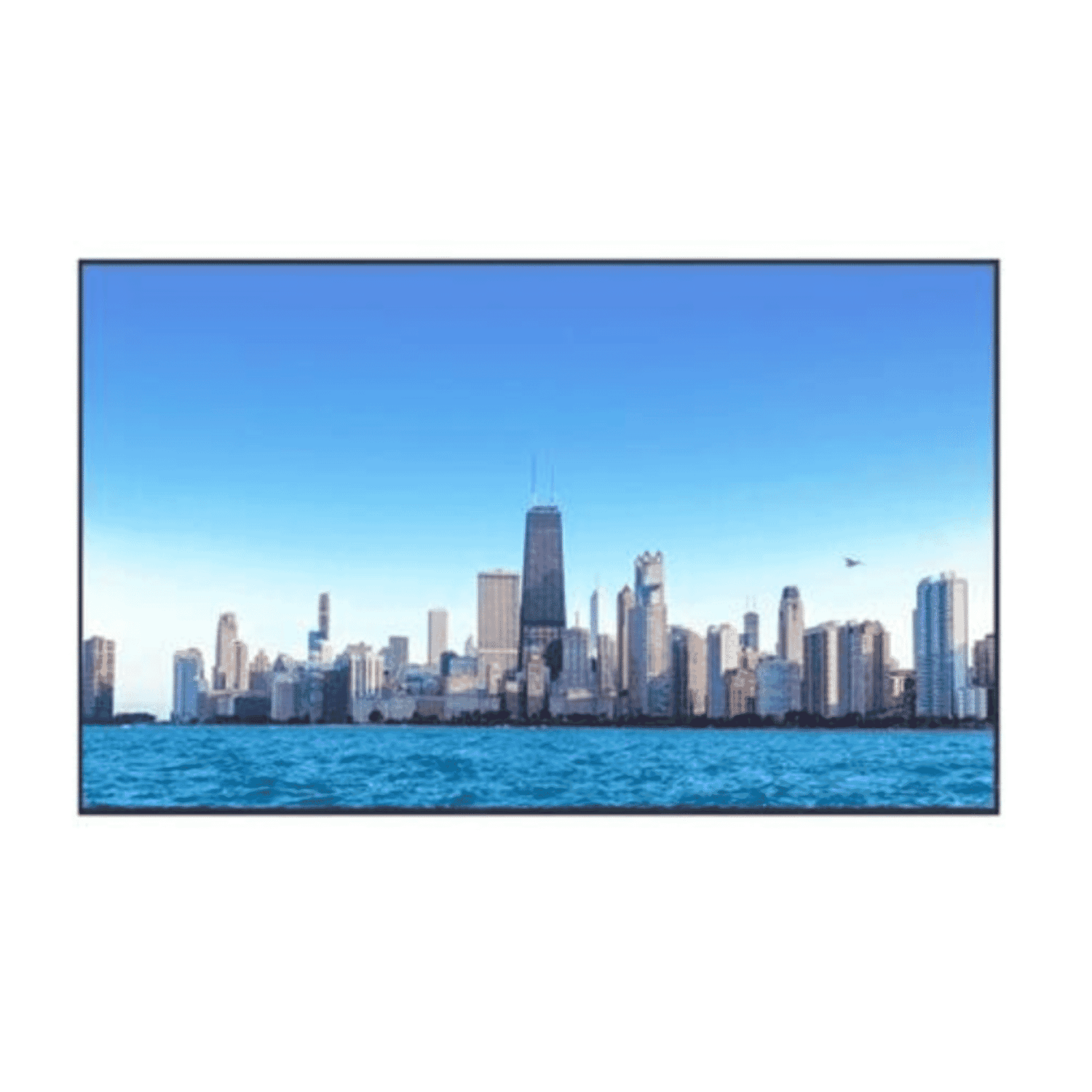

MAXHUB ND55CMA — 55" 4K commercial displayis a purpose-built display for businesses that need bright, reliable, and versatile signage or collaboration screens. At 55 inches and 4K UHD resolution (3840×2160), the ND55CMA combines a high-contrast VA/ADS family panel, an internal Android 11 media player, an OPS expansion slot, and a wide set of connectivity options — all in a package designed for continuous commercial operation. With typical brightness of 500 nits, a 25% anti-glare surface, and a three-year warranty, the ND55CMA aims to be a cost-effective yet capable choice for retail, corporate, education and public-space deployments.
Detailed description of specifications and benefits
The ND55CMA balances display performance, built-in processing, and enterprise features that are important for real-world installations. Key specifications include:
- Screen size & resolution:54.6 inches (55" class) with 4K UHD resolution (3840×2160) — delivers crisp text, detailed images and effective video playback for signage and meeting-room content.
- Panel and viewing:VA/ADS family panel with wide 178° viewing angles and high native contrast (5,000:1 typical, 1,000,000:1 dynamic), which helps content remain readable in rooms with variable lighting and for viewers at different angles.
- Brightness & anti‑glare:500 cd/m² (nits) typical and a 25% haze anti‑glare coating make the screen suitable for brighter retail environments or well-lit meeting rooms where reflections can reduce legibility.
- Internal media player:Built-in Android 11 player powered by a Quad A55 CPU and Mali‑G52 ×2 GPU, with 4 GB RAM and 32 GB storage. The UI runs at 4K, enabling direct playback of apps and local media without an external player.
- OPS slot & expandability:80‑pin OPS slot lets you add Windows or other compute modules if your use case requires Windows signage software, advanced interactivity or higher compute power.
- Connectivity:Extensive physical connectivity including multiple HDMI ports (HDMI 2.0 inputs and an HDMI out), USB‑C full‑function with 65 W power delivery, USB‑A ports (3.0/2.0), RJ45 network in/out and a removable Wi‑Fi module (Wi‑Fi 6 support), SPDIF optical, audio out, RS232, IR and IP control for integration with AV systems.
- Audio and reliability:Built‑in 2×10 W speakers are useful for basic audio needs; conformal coating and commercial-grade components improve durability for continuous operation. The datasheet lists operation-hours as 24/7 in places (and 18/7 in one line), so verify with your supplier if you need guaranteed 24/7 use.
- Mechanical and power:VESA 400×200 mm mounting, slim bezel (~9.9 mm), compact dimensions (1233 × 703.5 × 71.4 mm) and a net weight of 13.40 kg. Power input 100–240 V AC, typical power ~150 W, maximum ~250 W.
- Warranty & certification:3‑year display warranty and references to Energy Star/ErP. As with any commercial deployment, verify CE/UKCA and local approvals with your supplier.
Benefits at a glance: the ND55CMA offers 4K clarity for fine-detail content, anti‑glare and bright output for readable signage, a self-contained Android platform for simplified media playback, and an OPS slot for future-proofing or alternative compute choices. The wide connectivity and enterprise control options make it straightforward to integrate into existing AV and networked signage systems.
Use cases and scenarios where the ND55CMA excels
The ND55CMA is designed for a range of commercial scenarios. Common and effective use cases include:
- Retail digital signage:In-store promotions, product information screens and window displays benefit from 4K imagery and 500‑nit brightness. The anti‑glare surface helps maintain readability under shop lighting.
- Corporate meeting rooms:High-resolution screens for video conferencing, presentation content and collaborative whiteboarding. The internal Android player can run conferencing or presentation apps directly, while the OPS slot allows swapping to a dedicated PC module if required.
- Corporate and campus wayfinding & information:Directory boards, event schedules and public notices in lobbies and corridors — the combination of brightness, contrast and wide viewing angles keeps information legible from different approach angles.
- Hospitality and quick-service restaurants:Menu boards and promotional displays where reliable 24/7 uptime is important. The ND55CMA’s commercial‑grade build and conformal coating boost resistance to dust and humidity.
- Education and training rooms:Lecture capture playback, digital whiteboard content and signage outside classrooms. The durable build and flexible connectivity (USB‑C, HDMI, network) simplify classroom AV setups.
- Public information displays:Transit hubs, municipal buildings and healthcare facilities where clear 4K content and remote management via MAXHUB Pivot or IP control streamline operations.
How the ND55CMA compares with similar products
In the commercial display market, buyers typically compare factors such as brightness, internal media player capability, connectivity, durability and price. The ND55CMA sits competitively when you weigh those factors:
- Versus consumer TVs repurposed for signage:Consumer TVs may offer similar image quality but usually lack anti‑glare coatings, conformal coatings, OPS slots, enterprise management and warranties appropriate for continuous commercial use. The ND55CMA is engineered for longer duty cycles and easier commercial installation.
- Versus other commercial 55" signage displays:Competing models from major brands often provide similar brightness ranges (400–700 nits) and either proprietary smart platforms (webOS, Tizen) or Windows/Android compatibility via OPS. For organizations needing an open ecosystem or direct Android app support, the built‑in player is a plus.
- Expandability & integration:The inclusion of an OPS slot is a differentiator versus many lower-cost smart signage panels that lack modular compute options. If you foresee moving to Windows-based signage or need onboard computing power for interactive applications, the OPS slot simplifies upgrades without replacing the display.
- Value proposition:Compare final quotes, support packages, and verified duty‑cycle ratings when choosing among brands.
Conclusion — why choose the MAXHUB ND55CMA
The MAXHUB ND55CMA is a well‑rounded commercial display that combines 4K clarity, practical brightness and anti‑glare handling, a capable internal Android 11 media player, and modularity through an OPS slot. It’s designed for the realities of commercial deployments — robust connectivity (including USB‑C PD 65 W and Wi‑Fi 6), conformal coating for durability, and enterprise control methods that ease large‑scale deployments.
Before purchasing, verify the specific duty‑cycle rating (18/7 vs 24/7), confirm required certifications (CE/UKCA) for your region, and consider whether the internal Android player meets your software needs or whether you prefer an OPS compute module for Windows or higher performance.
Ultimately, the MAXHUB ND55CMA is a compelling choice for businesses seeking a flexible, commercial‑grade 55" 4K display that can serve both signage and collaboration roles without the hidden costs of external players or frequent replacements.
