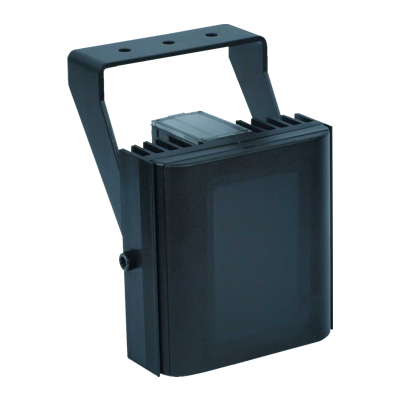

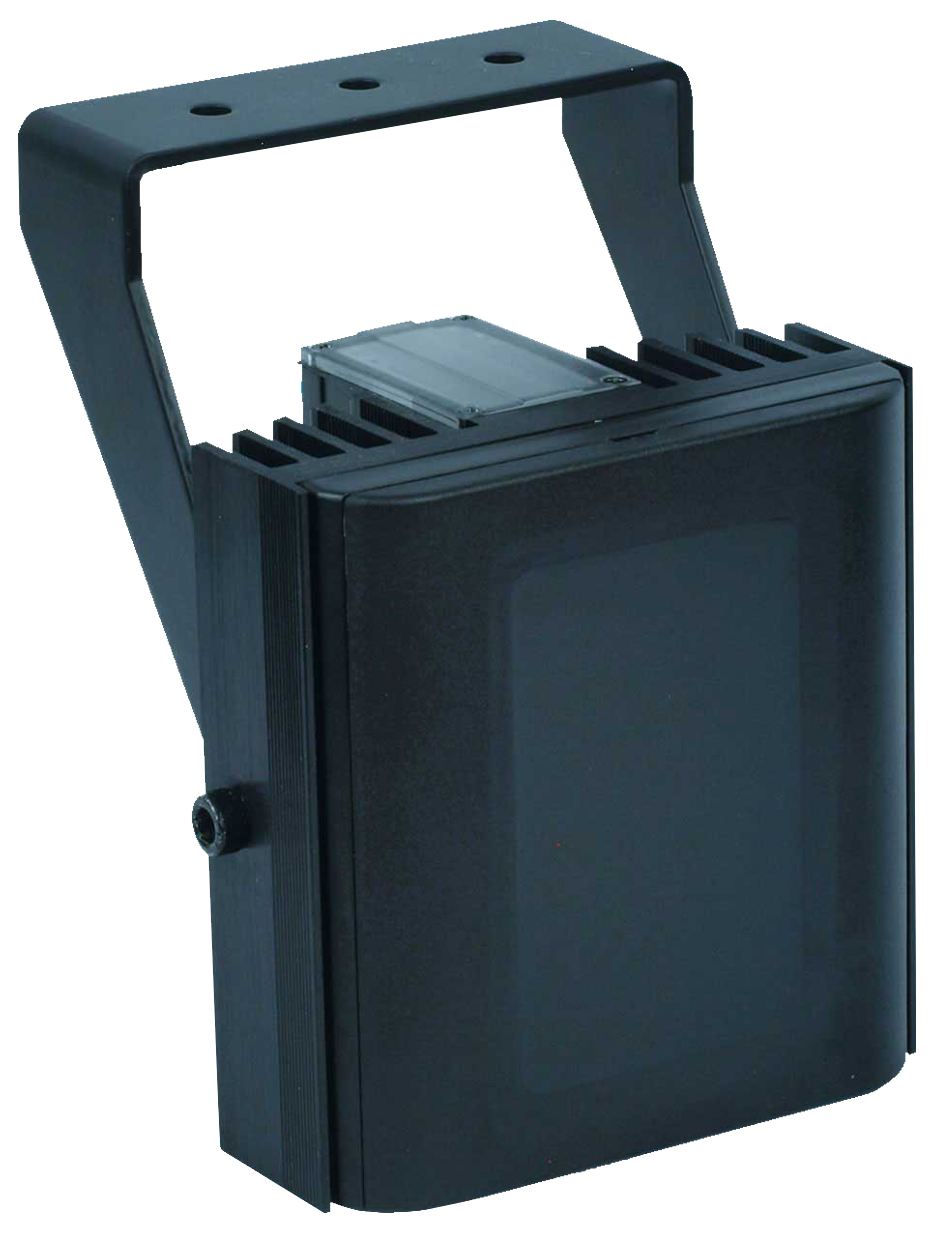

GJD Clarius Plus IM-8+ Medium IR Illuminator, 850/940nm, 26 W, IP66
Free Delivery
Ultra-long Reach
£
278
11
(Incl. VAT)
RRP: £298.79
GJD Medium Plus IR Illuminator (up to 187m)
About this product
About this product
The Clarius® Plus range of high-performance Infra-Red LED illuminators are designed to provide class-leading performance, long life and ultra-low maintenance.
Key Features:
- Distance Capability: Up to 187m
- Latest SMT Dual Core LED™ Technology
- Multiple Angle Options: 10°, 20°, 30°, 60°, 80°, 95°
- Elliptical Beam Profiles for efficient illumination
- IP66 Weather Proof Rating for outdoor use
- Low Power Consumption: 26W
- Long lifespan exceeding 10 years
- Integrated Photocell for automatic on/off operation
- Compatible with 12-32V DC / 24V AC +/-10%
- CleanLITE® Self-Cleaning Lens Coating Technology
Perfect for both commercial and residential CCTV installations, the Clarius® Plus range ensures superior night-time images through innovative design and technology.
-
Download
- Clarius IM spec
- Clarius manual
£
278
11
RRP: £298.79
Save £20.68
FAST delivery by Order within
Price
Technical Details
Specifications
Manufacturer
GJD
Clarius® The
Plus range of high performance Infra-Red LED illuminators
CleanLITE® •
Self Cleaning Lens
AIRPORTS
PRISONS RESIDENTIAL COMMERCIAL INDUSTRIAL PORTS POWER PLANTS HERITAGE BORDERS MILITARY BASES
Product Code
Wavelength Angle Distance FOV
10º - Circular
187m 614’ 33m 107’
20º - Elliptical
128m 418’ 45m 148’
30º - Elliptical
94m 307’ 50m 164’
IM-8
850nm
60º - Elliptical
60m 195’ 69m 225’
80º - Elliptical
43m 139’ 71m 234’
95º - Elliptical
30m 98’ 65m 213’
IM-9
940nm
Electronics
High Efficiency Surface Mount High Power Dual
Construction
Robust High Quality Aluminium Extrusion
Front Window
Polycarbonate High Transmission Protective (Vandal
Finish
Black Anodised
Power Cable
3m (9ft) including Photocell Following Contact &
Pressure Equalisation Vent
Prevents Thermal Expansion & Pressure Cycling
Photocell
Adjustable 20 -70 Lux
Illumination
Adjustable 10% - 100%
Operating Temperature
-50° to 50°C (-58° to 122°F)
Weight
1.05Kg (2.3lbs)
Mount
Powder Coated Stainless Steel Wall Mount
Dimensions
114 x 110 x 78mm (4.49” x 4.33” x 3.07”)
Input Voltage
12-32V DC or 24V AC +/- 10%
Input Current
1.2A at 24V AC
Consumption
26W
Standard
850nm (Semi Covert). Faint Red Glow Only
Optional
940nm (Covert). Minimal Visible Glow
Safety
EN60598:2004 Electrical Safety
EN60825-1
Laser Eye Safety
WEEE
Waste Electrical & Electronic Equipment European
RoHS
Restriction Of Hazardous Substance European
Specifications
| Manufacturer | GJD |
|---|---|
| Clarius® The | Plus range of high performance Infra-Red LED illuminators |
| CleanLITE® • | Self Cleaning Lens |
| AIRPORTS | PRISONS RESIDENTIAL COMMERCIAL INDUSTRIAL PORTS POWER PLANTS HERITAGE BORDERS MILITARY BASES |
| Product Code | Wavelength Angle Distance FOV |
| 10º - Circular | 187m 614’ 33m 107’ |
| 20º - Elliptical | 128m 418’ 45m 148’ |
| 30º - Elliptical | 94m 307’ 50m 164’ |
| IM-8 | 850nm |
| 60º - Elliptical | 60m 195’ 69m 225’ |
| 80º - Elliptical | 43m 139’ 71m 234’ |
| 95º - Elliptical | 30m 98’ 65m 213’ |
| IM-9 | 940nm |
| Electronics | High Efficiency Surface Mount High Power Dual |
| Construction | Robust High Quality Aluminium Extrusion |
| Front Window | Polycarbonate High Transmission Protective (Vandal |
| Finish | Black Anodised |
| Power Cable | 3m (9ft) including Photocell Following Contact & |
| Pressure Equalisation Vent | Prevents Thermal Expansion & Pressure Cycling |
| Photocell | Adjustable 20 -70 Lux |
| Illumination | Adjustable 10% - 100% |
| Operating Temperature | -50° to 50°C (-58° to 122°F) |
| Weight | 1.05Kg (2.3lbs) |
| Mount | Powder Coated Stainless Steel Wall Mount |
| Dimensions | 114 x 110 x 78mm (4.49” x 4.33” x 3.07”) |
| Input Voltage | 12-32V DC or 24V AC +/- 10% |
| Input Current | 1.2A at 24V AC |
| Consumption | 26W |
| Standard | 850nm (Semi Covert). Faint Red Glow Only |
| Optional | 940nm (Covert). Minimal Visible Glow |
| Safety | EN60598:2004 Electrical Safety |
| EN60825-1 | Laser Eye Safety |
| WEEE | Waste Electrical & Electronic Equipment European |
| RoHS | Restriction Of Hazardous Substance European |
GJD Medium Plus IR Illuminator (up to 187m) features
