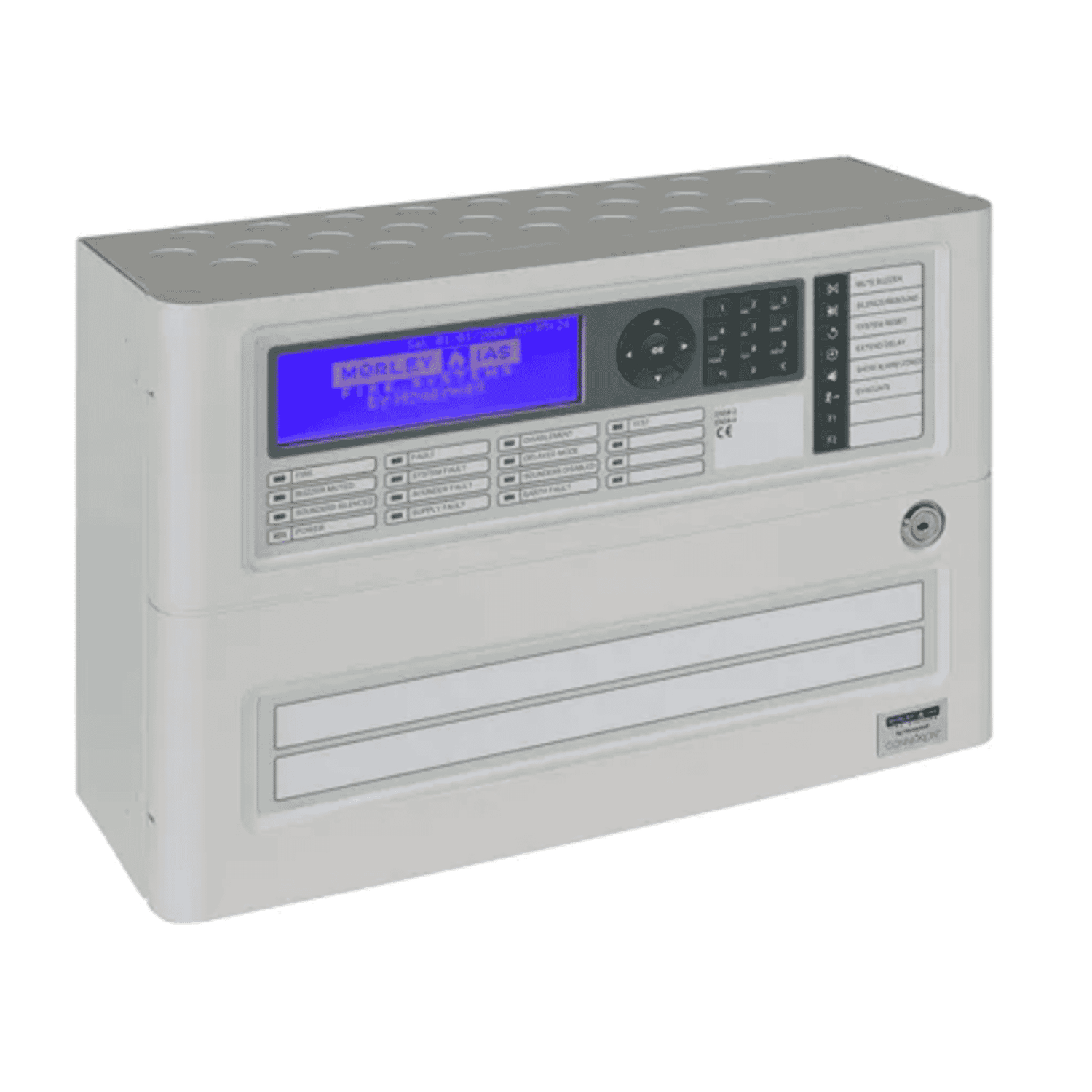

Morley-IAS DXc1-S Single-Loop Addressable Fire Alarm Control Panel, 2 Sounder Circuits, up to 99 Detectors 714-001-111

Introduction: Morley‑IAS DXc1‑S at a glance

The Morley‑IAS DXc1‑S (DX Connexion) Single‑Loop Addressable Fire Alarm Control Panel (SKU 714‑001‑111) is a compact, feature‑rich solution aimed at small‑to‑medium sized buildings and projects where a single addressable loop is sufficient. With a backlit multi‑line alphanumeric LCD, USB/PC configuration and optional Bluetooth commissioning, the DXc1‑S brings advanced addressable functionality into a space‑saving enclosure. It offers two monitored sounder circuits, onboard monitored inputs, programmable relays and peer‑to‑peer networking capability to scale installations when required.

Key features

• Single addressable loopsupporting up to 99 detectors and 99 devices—suitable for many standalone installations.
• Two monitored sounder circuits(1 A each) for flexible notification zone wiring without additional external sounder modules.
• User interface: backlit 6×40 character alphanumeric LCD with keypad for clear event readouts and labelling on site.
• Flexible commissioning: USB/PC configuration and an available Bluetooth commissioning option to speed up setup and testing.
• Networkable: peer‑to‑peer fault‑tolerant networking that lets multiple DXc panels combine to cover larger sites (reported support for networks up to 16 loops).
• Multi‑protocol supportto accommodate a variety of addressable devices—verify compatibility when ordering.
• Expandablewith optional LED mimic cards, repeater panels, network cards and extension boxes for more complex installations.

Detailed specifications and benefits

Understanding the technical details of the DXc1‑S helps clarify where it fits in a specification and what advantages it brings.

• Dimensions: 260 × 390 × 147 mm (H × W × D) — compact footprint that fits plant rooms, small cupboards or service risers.
• Weight: Approx. 4.0 kg — light enough for straightforward wall mounting with standard fixings.
• IP Rating: IP30 — intended for indoor, dry environments.
• Operating temperature: 0 °C to +40 °C — consistent with many commercial building environments.

• Loop capacity: Up to 99 detectors + 99 devices per loop — ample for many retail, small office and education sites.
• Sounder circuits: 2 monitored circuits, 1 A each — supports local notification circuits without immediate reliance on external power modules.
• Monitored inputs: 2 onboard monitored inputs for ancillary devices such as local manual call points or remote indicators.
• Relay outputs: Fire, Fault, Aux and programmable relays—flexible integrations for lifts, HVAC shutdowns, or remote signalling.

• Display: Backlit multi‑line LCD (6×40 characters) with alphanumeric keypad — simplifies labeling, event navigation and on‑site diagnostics.
• Configuration: USB and PC configuration support; Bluetooth commissioning option available to reduce commissioning time and cable runs for engineers.
• Networking: Peer‑to‑peer, fault‑tolerant network capability—panels can be combined to produce a distributed system covering more loops and areas without a central single point of failure.
• Protocols: Multi‑protocol addressable support—helpful when integrating a wider range of detectors and modules (confirm exact protocol compatibility before ordering).

• Standards: The DXc family references EN54‑2 and EN54‑4 and LPCB approval in manufacturer material—confirm exact approvals for this specific SKU on the official datasheet before tendering.
• Power: Loop driver reported at 500 mA; panel auxiliary figures vary between distributors (reported between 2 A and 4 A). Consult the official datasheet/manual for battery sizing and exact power/auxiliary ratings.
• Accessories: Optional 40/80/160 zone LED mimic cards, network card, repeater panels, extension boxes and mobile commissioning dongles—LED cards supplied separately.

Benefits — why these specifications matter

The DXc1‑S balances compact size with functionality often required by installers and end users:

• Space savings: Small enclosure and integrated sounder circuits reduce the need for external cabinets and third‑party notification supplies.
• Speed of commissioning: USB/PC support and Bluetooth options cut commissioning time and reduce onsite cabling complexity.
• Scalability: Although single‑loop, the option to network multiple DXc panels enables future expansion without entirely replacing control hardware.
• Clarity of information: The large alphanumeric display makes fault finding and daily checks quicker for maintenance engineers and facilities teams.
• Cost effectiveness: For projects requiring one loop, the DXc1‑S offers advanced addressable features at a lower overall installation cost compared with multi‑loop controllers.

Use cases and scenarios where the DXc1‑S excels

The DXc1‑S is purpose‑built for a range of environments where a compact, capable addressable panel is preferred:

• Small to medium commercial premises— shops, small offices and professional suites that require addressable detection but do not demand multiple loops.
• Education facilities— single building blocks or wings in schools and colleges where a single loop can cover corridors, classrooms and communal areas.
• Healthcare and care homes— facilities that want addressable identification for quicker location of incidents, while keeping overall system size manageable.
• Retrofit and refurbishment projects— where limited space in risers or plant rooms makes a compact panel an obvious choice.
• Networked applications— sites that use multiple DXc panels in a peer‑to‑peer configuration to build a larger distributed system without a central master panel.

Comparisons with similar products on the market

When specifying a single‑loop addressable panel, buyers typically consider alternatives such as other single‑loop offerings from major manufacturers and compact multi‑loop controllers. Key comparison points include loop capacity, notification outputs, commissioning tools, networking capability and cost.

Compared with basic conventional panels, the DXc1‑S offers clear advantages: addressable detection (point‑level identification), improved diagnostics via the LCD and stronger integration with networks and programmable relays. Against other single‑loop addressable competitors, the DXc1‑S stands out for its combination of an intuitive alphanumeric display, Bluetooth commissioning option and peer‑to‑peer networking—features not always standard on entry‑level addressable panels.

Against multi‑loop panels, the DXc1‑S is a more cost‑effective and space‑efficient choice for single building zones but is not intended to replace a multi‑loop master where many loops and larger device populations are needed. Its networking capability provides a middle ground: a network of DXc1‑S panels can emulate a larger system while keeping each cabinet compact and localised.

Customer feedback and installer notes

While formal customer testimonials for this exact SKU are limited in publicly available sources, installer feedback and site reports typically highlight a few recurring positives:

• Compact form factor— installers appreciate the smaller footprint and how the panel fits into confined electrical cupboards.
• Clear display and labelling— the alphanumeric LCD is often cited as speeding up fault diagnosis and routine checks.
• Commissioning flexibility— USB/PC configuration with an optional Bluetooth dongle reduces configuration time and hassle on‑site.
• Networking— the ability to peer panels together is valued for phased projects where expansion is likely.

Typical suggestions from technicians include confirming exact power/auxiliary ratings and battery requirements from the official datasheet before ordering and ensuring any optional LED mimic cards or repeaters are specified if a remote display is required.

Conclusion: Who should choose the DXc1‑S?

The Morley‑IAS DXc1‑S (714‑001‑111) is an attractive option for installers, contractors and end users seeking a compact, addressable single‑loop control panel with modern commissioning tools and network scalability.

Its strengths are its compact size, intuitive display, two monitored sounder circuits and the flexibility to network panels for growth. It is well suited to small commercial premises, education facilities, healthcare applications and retrofit projects where space and budget are key considerations. Before specifying, confirm exact approvals, power/auxiliary ratings and battery sizing on the official DXc1 datasheet and ensure any optional accessories required for your installation are ordered alongside the main panel.

In summary, for single‑loop projects that need addressable performance with straightforward commissioning and future expansion options, the DXc1‑S is a solid, practical choice that offers professional features in a compact package.
