Nitek ET1243C network extender transmitter, Rack Mount
About this product
Please note: this is a non-returnable item (excluding faulty goods)

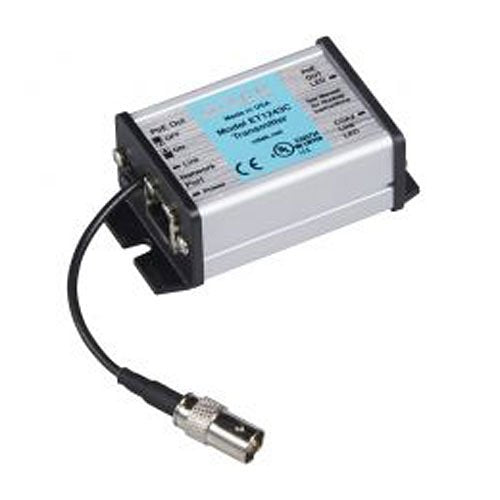

Nitek ET1243C is a network extender transmitter.
The NITEK Etherstretch Lyte™ ET1243C IP cameras over Coax network extender transmitter, is a network extender-PoE Inserter component. The ET1243C operates with one of the Nitek Etherstretch Lyte receivers, either an ER8200C (8 port), ER16200C (16 port) or ER24200C (24 port) IP extender "over-coax" system. The system transmits IP cameras over coax and can quickly turn any ordinary RG59U coaxial cable into a high-speed network communication & PoE path.
When operating over RG59U coaxial cable, the coax network extender system can operate for distances of up to 350 meters (1,150 feet). ET1243C Transmitter is part of a system that operates in conjunction with a standard PoE network switch. (Network switches are not provided by Nitek and are a separate component needed to complete the system).The ET1243C coax ethernet extender requires very little installation & set time.
The ET1243C is transparent to the network and has no IP or MAC addressing. Simply connect your network devices to the network port of the transmitter along with existing coaxial cabling and the system begins communicating. LED indicators show the status of network communication and PoE power.
Key features
- Surge protected input
- Ground loop isolation
- Fully transparent to the network
- Built-in surge protection
- Easy to install
- No MAC or IP addressing required
- LED indicators for network signals, link status and power
- Manufactured in the U.S.A
- Backed by a Limited Life Time Warranty
If you are matching this to an existing installation, work from the ET1243C part number rather than the description.
Specifications
Technical information
Interfaces/ports
Media & performance
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Nitek |
|---|---|
| Manufacturer Part Number | ET1243C |
| Product Type | Video Extender Transmitter |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Maximum Operating Distance | 350m |
| Media Type Supported | Coaxial, Twisted Pair |
Interfaces/ports
| Network (RJ-45) | Yes |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
Media & performance
| Network Technology | 100Base-TX |
|---|
Physical characteristics
| Depth | 76.20mm |
|---|---|
| Height | 27.94mm |
| Width | 40.64mm |
Power description
| Plug/Connector Type | BNC |
|---|---|
| Power Source | PoE (Power over Ethernet) |
Product information
| Mount Type | Rack Mount |
|---|
Miscellaneous
| Compatibility | ER16200C, ER2400C, ER8200C |
|---|---|
| Environmental status | Yes |
Attributes
| Compatibility | ER16200C, ER2400C, ER8200C |
|---|---|
| Power Source | PoE (Power over Ethernet) |
