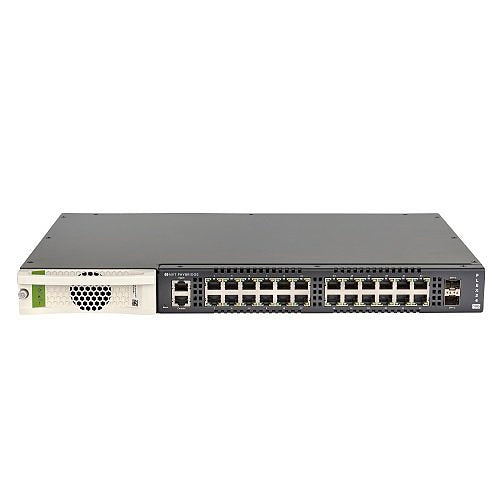

NVT Phybridge NV-FLX-024-10G ethernet switch, Rack Mount

Free Delivery
£ 4,052 98
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

NVT Phybridge NV-FLX-024-10G is an ethernet switch from the NV-FLX range.

The NVT Phybridge FLEX24-10G switch is the most versatile Power over Ethernet (PoE) switch on the market, designed to make IP/IoT deployments simple, secure, and cost-effective. The FLEX24-10G switch delivers up to 50 Watts of power (PoE++) and 10/100/1000 Mbps symmetrical, full-duplex, over 2 or 4 pair UTP (unshielded twisted pairs) cabling with up to 2,000ft (610m) reach. The FLEX24-10G switch comes standard with 2 x SFP+ 10Gb uplink ports, dedicated management and console ports, 24 x 10/100/1000 downlink ports, a 1,000 Watt hot-swappable power supply, power sharing, and power redundancy.

The FLEX24-10G switch also comes with a new and intuitive GUI interface, ideal for any cloud or premise-based managed service offering. The new and improved CLI (Command Line Interface) is very similar to the Cisco offering for ease of use.

Key features

  • Accelerate your return on investment by reducing infrastructure costs.
  • Simplify your IP modernization, collapsing planning and deployment time.
  • Eliminate infrastructure barriers, risks, disruption, and costs.
  • Create a robust, secure IP platform that is easy to deploy and manage.
  • Be environmentally responsible during your IP upgrades.

If you are matching this to an existing installation, work from the NV-FLX-024-10G part number rather than the description.

£ 4,052 98
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£4,052.98 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
NVT Phybridge
Manufacturer Part Number
NV-FLX-024-10G
Product Series
NV-FLX
Product Type
Ethernet Switch
General information
Packaged Quantity
1
Technical information
Device Supported
IP Camera, IP Phone
Media Type Supported
Optical Fiber, Twisted Pair
Network Switch Type
Managed
Power Consumption
20.0000W
I/o expansions
Expansion Slot Type
SFP+
Number of SFP Slots
2
Number of Total Expansion Slots
2
Interfaces/ports
Connector Type
RJ45
Modular
Yes
Network (RJ-45)
Yes
Total Number of Network Ports
24
Uplink Port
Yes
Management & protocols
Manageable
Yes
Media & performance
Network Technology
1000Base-T, 100Base-TX, 10Base-T, 10GBase-ER, 10GBase-LR, 10gBase-SR, 10GBase-ZR
Network & communication
Ethernet Technology
1 Gbps (Gigabit Ethernet), 10 Mbps (Ethernet)
Layer Supported
4
Networking Standards
IEEE 802.1Q, IEEE 802.1X, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
Physical characteristics
Compatible Rack Unit
1U
Depth
265.40mm
Height
43.90mm
Material
Metal
Width
435.10mm
Power description
Frequency
50Hz
Input Voltage
120V AC, 230V AC, 48V DC, 58V DC
PoE (RJ-45) Port
Yes
PoE Budget
50W
Power Source
AC Power, PoE (Power over Ethernet)
Redundant Power Supply
Yes
Product information
Mount Type
Rack Mount
Miscellaneous
Environmental status
Yes
Features
Can work as layer 3 routing for scalable network design, Ethernet Switch ensures productivity by providing an efficient, hassle-free connection, Features 24 networking ports to establish large network, Lets you conveniently connect different networks to enable improved flexibility to your infrastructure, The unit is standalone and you can place it anywhere on a flat surface
Attributes
Device Supported
IP Camera, IP Phone
Input Voltage
120V AC, 230V AC, 48V DC, 58V DC
Package Contents
FLEX24-10G Ethernet Switch; 2 x Brackets
Power Source
AC Power, PoE (Power over Ethernet)
Number of SFP Slots
2

Specifications

Brand Name NVT Phybridge
Manufacturer Part Number NV-FLX-024-10G
Product Series NV-FLX
Product Type Ethernet Switch

General information

Packaged Quantity 1

Technical information

Device Supported IP Camera, IP Phone
Media Type Supported Optical Fiber, Twisted Pair
Network Switch Type Managed
Power Consumption 20.0000W

I/o expansions

Expansion Slot Type SFP+
Number of SFP Slots 2
Number of Total Expansion Slots 2

Interfaces/ports

Connector Type RJ45
Modular Yes
Network (RJ-45) Yes
Total Number of Network Ports 24
Uplink Port Yes

Management & protocols

Manageable Yes

Media & performance

Network Technology 1000Base-T, 100Base-TX, 10Base-T, 10GBase-ER, 10GBase-LR, 10gBase-SR, 10GBase-ZR

Network & communication

Ethernet Technology 1 Gbps (Gigabit Ethernet), 10 Mbps (Ethernet)
Layer Supported 4
Networking Standards IEEE 802.1Q, IEEE 802.1X, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z

Physical characteristics

Compatible Rack Unit 1U
Depth 265.40mm
Height 43.90mm
Material Metal
Width 435.10mm

Power description

Frequency 50Hz
Input Voltage 120V AC, 230V AC, 48V DC, 58V DC
PoE (RJ-45) Port Yes
PoE Budget 50W
Power Source AC Power, PoE (Power over Ethernet)
Redundant Power Supply Yes

Product information

Mount Type Rack Mount

Miscellaneous

Environmental status Yes
Features Can work as layer 3 routing for scalable network design, Ethernet Switch ensures productivity by providing an efficient, hassle-free connection, Features 24 networking ports to establish large network, Lets you conveniently connect different networks to enable improved flexibility to your infrastructure, The unit is standalone and you can place it anywhere on a flat surface

Attributes

Device Supported IP Camera, IP Phone
Input Voltage 120V AC, 230V AC, 48V DC, 58V DC
Package Contents FLEX24-10G Ethernet Switch; 2 x Brackets
Power Source AC Power, PoE (Power over Ethernet)
Number of SFP Slots 2

NVT Phybridge NV-FLX-024-10G ethernet switch

NVT Phybridge NV-FLX-024-10G ethernet switch, Rack Mount

Who this is for

For the installer — this is the ethernet switch supplied under NVT Phybridge part number NV-FLX-024-10G. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an ethernet switch made by NVT Phybridge. The part number NV-FLX-024-10G is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this ethernet switch is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact ethernet switch I have been quoted? Check the manufacturer part number NV-FLX-024-10G against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — a document attached to this listing was checked and names this exact part number.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against NV-FLX-024-10G answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

NVT Phybridge NV-FLX-024-10G ethernet switch
NVT Phybridge

NVT Phybridge NV-FLX-024-10G ethernet switch, Rack Mount

£4,052.98

Please note: this is a non-returnable item (excluding faulty goods)

NVT Phybridge NV-FLX-024-10G is an ethernet switch from the NV-FLX range.

The NVT Phybridge FLEX24-10G switch is the most versatile Power over Ethernet (PoE) switch on the market, designed to make IP/IoT deployments simple, secure, and cost-effective. The FLEX24-10G switch delivers up to 50 Watts of power (PoE++) and 10/100/1000 Mbps symmetrical, full-duplex, over 2 or 4 pair UTP (unshielded twisted pairs) cabling with up to 2,000ft (610m) reach. The FLEX24-10G switch comes standard with 2 x SFP+ 10Gb uplink ports, dedicated management and console ports, 24 x 10/100/1000 downlink ports, a 1,000 Watt hot-swappable power supply, power sharing, and power redundancy.

The FLEX24-10G switch also comes with a new and intuitive GUI interface, ideal for any cloud or premise-based managed service offering. The new and improved CLI (Command Line Interface) is very similar to the Cisco offering for ease of use.

Key features

If you are matching this to an existing installation, work from the NV-FLX-024-10G part number rather than the description.
