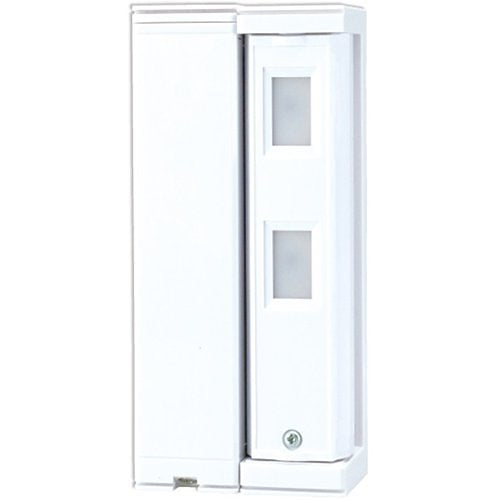

Optex FTN-R infrared sensor, Wall Mount

Visit Burglar & Intruder Alarms
£ 81 89
(Incl. VAT) RRP: £98.27
Save £16.38

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Optex FTN-R is an infrared sensor from the FTN range.

The FTN series provides a short range curtain detection that can be adjusted with a switchable lens up to 2m or up to 5m which is ideal to protect front door, windows and balconies. The FTN-R is a battery-operated model. The model features a detachable backbox which can accommodate most wireless transmitter available on the market.

The FTN-R also features Super Multi Dimension Analysis (SMDA) logic for ultimate sensitivity optimisation. Every motion is analyzed before signaling an alarm to reduce false alarms. As a result environment reaction capability becomes 24 times more effective.

The FTN-R is a great addition to your over residential home security systems or commercial security systems.The FTN outdoor PIRs are both compact and very flexible curtain detection PIRs. The slim body can easily fit on a window or door recess and its built-in bracket rotate 190 degree. Additionally the lens can be switched between 2m and 5m detection to adapt to the area to protect.The FTN series generates top and bottom passive infrared beams, a presence should be detected in both beams to trigger the alarm.

So cat, dogs, foxes and birds will not be able to trigger the system. The FTN series digitally analyses the wave forms of the detected objects and will ignore reflection caused by sunlight, air conditioning units, vegetation sway. As a result the FTN series is the ultimate stable outdoor sensor.The FTN-R doesn't require any cable or wire at all to be installed.

The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The FTN-R can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.

Key features

  • Short range curtain detection
  • Adjustable detection range 2 and 5m
  • Animal tolerant and digital analysis
  • Battery-powered suitable for wireless transmitters

If you are matching this to an existing installation, work from the FTN-R part number rather than the description.

£ 81 89
RRP: £98.27 Save £16.38
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£81.89 Incl. VAT £98.27
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Optex
Manufacturer Part Number
FTN-R
Product Series
FTN
Product Type
Motion Sensor
Technical information
Connectivity Technology
Wireless
Power description
Input Voltage
10V DC
Power Source
Battery
Product information
Mount Type
Wall Mount
Miscellaneous
Features
Anti-mask, Complete battery operation, Double conductive shielding, Intelligent AND logic, Multi Dimension Analysis Logic, Pet immune
Attributes
Input Voltage
10V DC
Package Contents
FTN-R Motion Sensor Connector for POWER and ALARM Connector for TROUBLE ; 2 x Plate Nut ; 4 x (3 x 20 mm) Screw ; 2 x (M3 x 10 mm) Screw Sponge for Transmitter
Power Source
Battery
Specifications
Technical information
Power description
Product information
Miscellaneous
Attributes

Specifications

Brand Name Optex
Manufacturer Part Number FTN-R
Product Series FTN
Product Type Motion Sensor

Technical information

Connectivity Technology Wireless

Power description

Input Voltage 10V DC
Power Source Battery

Product information

Mount Type Wall Mount

Miscellaneous

Features Anti-mask, Complete battery operation, Double conductive shielding, Intelligent AND logic, Multi Dimension Analysis Logic, Pet immune

Attributes

Input Voltage 10V DC
Package Contents FTN-R Motion Sensor Connector for POWER and ALARM Connector for TROUBLE ; 2 x Plate Nut ; 4 x (3 x 20 mm) Screw ; 2 x (M3 x 10 mm) Screw Sponge for Transmitter
Power Source Battery

Optex FTN-R infrared sensor for motion & perimeter sensors

Optex FTN-R infrared sensor, Wall Mount

Who this is for

For the installer — this is the infrared sensor supplied under Optex part number FTN-R. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an infrared sensor made by Optex. The part number FTN-R is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this infrared sensor is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact infrared sensor I have been quoted? Check the manufacturer part number FTN-R against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against FTN-R answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

Optex FTN-R infrared sensor for motion & perimeter sensors
Optex

Optex FTN-R infrared sensor, Wall Mount

£81.89 £98.27

Please note: this is a non-returnable item (excluding faulty goods)

Optex FTN-R is an infrared sensor from the FTN range.

The FTN series provides a short range curtain detection that can be adjusted with a switchable lens up to 2m or up to 5m which is ideal to protect front door, windows and balconies. The FTN-R is a battery-operated model. The model features a detachable backbox which can accommodate most wireless transmitter available on the market.

The FTN-R also features Super Multi Dimension Analysis (SMDA) logic for ultimate sensitivity optimisation. Every motion is analyzed before signaling an alarm to reduce false alarms. As a result environment reaction capability becomes 24 times more effective.

The FTN-R is a great addition to your over residential home security systems or commercial security systems.The FTN outdoor PIRs are both compact and very flexible curtain detection PIRs. The slim body can easily fit on a window or door recess and its built-in bracket rotate 190 degree. Additionally the lens can be switched between 2m and 5m detection to adapt to the area to protect.The FTN series generates top and bottom passive infrared beams, a presence should be detected in both beams to trigger the alarm.

So cat, dogs, foxes and birds will not be able to trigger the system. The FTN series digitally analyses the wave forms of the detected objects and will ignore reflection caused by sunlight, air conditioning units, vegetation sway. As a result the FTN series is the ultimate stable outdoor sensor.The FTN-R doesn't require any cable or wire at all to be installed.

The low-current sensor is powered by batteries (not provided) which can last up to 3 years and has a backbox big enough to accommodate most wireless transmitters available on the market. The FTN-R can be easily added onto a wireless alarm panel and extend the protection of the house or building to the outside.
