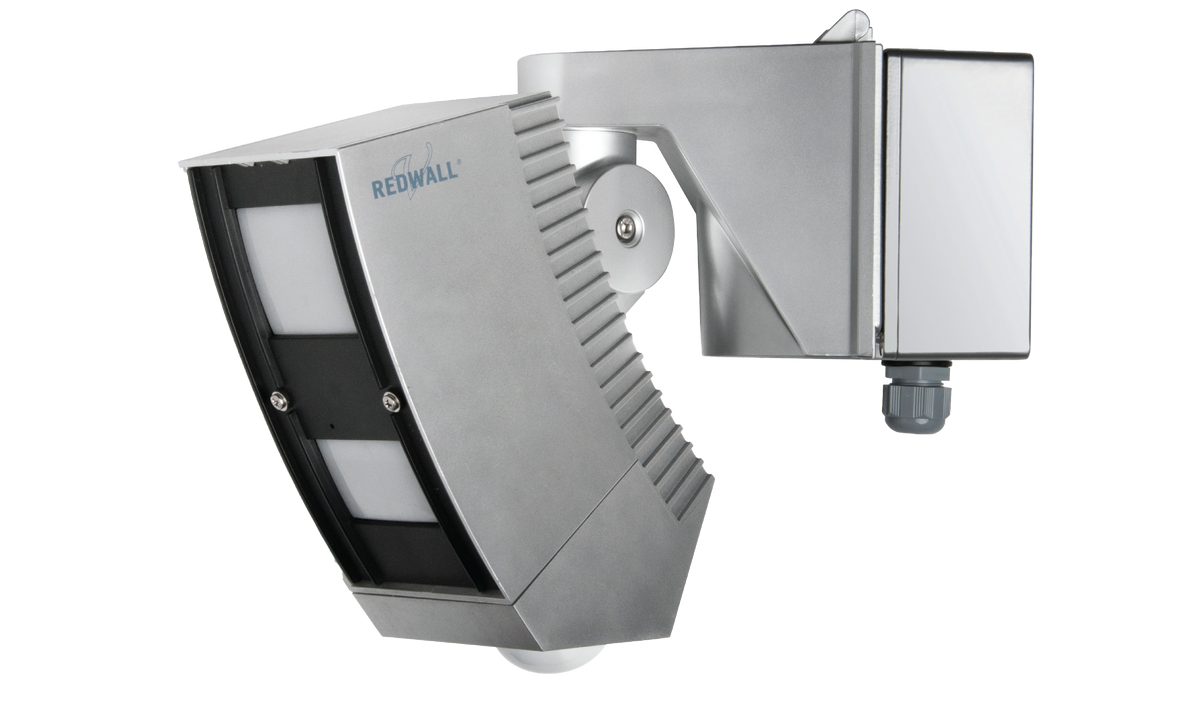

Optex SIP-3020/5-IP-BOX Outdoor PoE Long-Range Sensor, 30x20m, Three Detection Zones
About this product
The Optex REDWALL SIP-3020/5-IP-BOX is an outdoor IP/PoE long-range PIR sensor for CCTV, with a main detection range of 30x20m (LxW) covered by far and near areas, plus an additional PIR detector at the bottom of the unit that covers a separate creep zone (max 6x9m area). It is designed to work with a large number of Video Management Software (VMS) platforms, some specific IP camera manufacturers and PSIM providers, so the alarm event it generates triggers a response from the security system.
Key features
- Detection range of 30x20m (LxW) for long and narrow areas
- Three independent detection zones: far, near and creep
- IP/PoE sensor integrated with most VMS platforms
- Active infrared antimasking and vandal-resistant design
- Anti-rotation function with accelerometer
- Creep zone of 3x 5m installed at 2.3m height, or 6 x 9m installed at 4m height
- Automatic sensitivity management from ambient temperature and illuminance
- Comprises the SIP-3020/5 PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure box
Frequently asked questions
What area does the Optex SIP-3020/5-IP-BOX cover?
It has a detection range of 30x20m (LxW). A separate creep zone covers 3x 5m when installed at 2.3m height, or 6 x 9m when installed at 4m height.
What is included in the SIP-3020/5-IP-BOX?
It comprises the SIP-3020/5 PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure box.
How does the SIP-3020/5-IP-BOX connect to a CCTV system?
It is an IP/PoE sensor designed to work with a large number of Video Management Software (VMS) platforms, some specific IP camera manufacturers and PSIM providers.
At what height should the SIP-3020/5-IP-BOX be mounted?
The mounting height is 2.3 to 4 m.
Can the sensitivity be adjusted for each zone?
Yes. Sensitivity is selectable SH/H/M/L for the far, near and creep zones, and the sensor also detects ambient temperature and illuminance for automatic sensitivity management.
Does the SIP-3020/5-IP-BOX resist tampering?
It has active infrared antimasking, a vandal-resistant design and an anti-rotation function with accelerometer.
Specifications
Specifications
| Brand | Optex |
|---|---|
| Model | SIP-3020/5-IP-BOX |
| Manufacturer Part Number (MPN) | SIP-3020/5-IP-BOX |
| Detection method | Passive infrared |
| Detection range | 30x20m (LxW) |
| Coverage (main area) | 30 x 20 m (100 x 65 ft.) |
| Coverage (creep zone) | 3x 5m (10 x 16ft.) installed at 2.3m (7.6ft.) height, 6 x 9m (20 x 30ft.) installed at 4m (13ft.) height, detection angle adjustable horizontally |
| Detection zones | Three independent detection zones far/near/creep |
| Mounting height | 2.3 to 4 m (7.6 to 13 ft.) |
| Sensitivity selector | Far: SH/H/M/L Near: SH/H/M/L Creep zone: SH/H/M/L |
| Detection logic selector | AND / OR |
| Alarm interval period | Off/15, 30, 60 sec |
| Anti-masking | Active infrared antimasking |
| Connection | IP/PoE |
| Kit contents | the SIP-3020/5 PIR, the IP/PoE encoder module (PIE-1) and an IP65 enclosure box |
